MESHNOLOGY—RDK™ X5 Kit de développement robotique – Robotique IA avec puce Sunrise 5, 10 TOPS
1. Powered by Sunrise 5 SoC with up to 10 TOPS AI performance.
2. 8GB LPDDR4 RAM for smooth edge inference and multitasking
3. Dual MIPI CSI interface – ideal for stereo vision and object detection
4. Wi-Fi 6 + Bluetooth 5.4 wireless connectivity. Multiple power input options: USB-C, header, optional PoE
5. Supports CAN-FD, UART, GPIO, USB 3.0/2.0. Designed with 3.5mm audio jack and microSD card slot
MESHNOLOGY—RDK™ X5 Kit de développement robotique – Robotique IA avec puce Sunrise 5, 10 TOPS
Carte de développement IA RDK X5 Edge – 8 Go LPDDR4 | Wi-Fi 6, CAN-FD, Sunrise 5 SoC

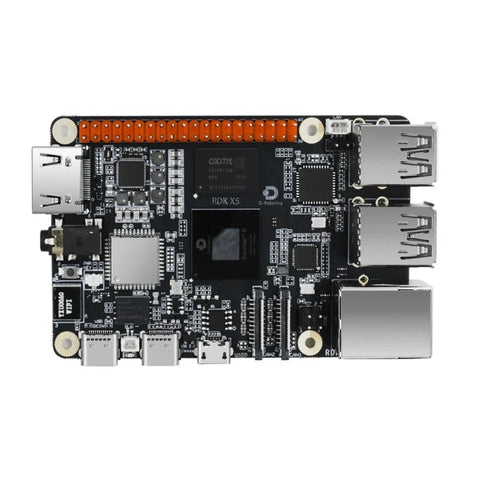

The RDK X5 is a powerful Edge AI development board built around the high-performance Sunrise 5 SoC, delivering up to 10 TOPS for AI inference tasks. Designed for developers, educators, and robotics enthusiasts, the RDK X5 offers a compact yet robust platform for real-time computer vision, smart robotics, and edge computing applications.
Avec 8 Go de mémoire LPDDR4, Wi-Fi 6 et Bluetooth 5.4, il assure une connectivité sans fil fluide, tandis que des interfaces comme MIPI CSI (prise en charge de caméra stéréo), CAN-FD et UART le rendent idéal pour le contrôle de robots, la navigation autonome et les solutions IoT industrielles.
Caractéristiques principales
- Alimenté par le Sunrise 5 SoC offrant jusqu’à 10 TOPS de performance IA
- 8GB LPDDR4 RAM for smooth edge inference and multitasking
- Dual MIPI CSI interface – ideal for stereo vision and object detection
- Connectivité sans fil Wi-Fi 6 + Bluetooth 5.4
- Prend en charge CAN-FD, UART, GPIO, USB 3.0/2.0
- 3.5mm audio jack and microSD card slot
- Multiple power input options: USB-C, header, optional PoE
Caractéristiques techniques
| Specification | Détails |
|---|---|
| Processeur | Sunrise 5 AI SoC (jusqu’à 10 TOPS) |
| Mémoire | 8 Go LPDDR4 |
| Sans fil | Wi-Fi 6 + Bluetooth 5.4 |
| Interface caméra | MIPI CSI x2 (vision stéréoscopique) |
| Audio | 3.5mm headphone jack |
| Debug | Port série UART |
| Interfaces | CAN-FD, USB 3.0/2.0, GPIO headers |
| Stockage | Emplacement carte microSD, clés USB |
| Power Supply | USB-C / broches d’en-tête / PoE en option |
| Version de la carte | v1.0 (8GB model) |
What's Included
- 1 × RDK X5 Development Board (8GB)
- 1 × Quick Start Guide
Idéal pour
- Robotics and drone control systems
- Applications Edge AI et moteurs d’inférence
- Projets de vision intelligente et de caméras stéréo
- Développement IoT et télédétection
Compatible with popular frameworks such as TensorFlow Lite, ONNX, and custom AI models.
Comparé au RDK X3, le RDK X5 offre des performances supérieures du CPU au BPU, augmentant la puissance de calcul et accélérant l’exécution des algorithmes IA.
Caractéristiques principales
Une nouvelle façon de mettre à niveau les cartes
Automatically acquire the latest RDK OS — a single data cable is all you need for a quick and easy upgrade.
Application Examples
Over 200 open-source algorithms and solutions to accelerate application development.
Covers everything needed for robotics development—from sensors and algorithms to application samples.
Specification
| Item | Specification |
|---|---|
| Processor | Sunrise 5 AI SoC (Up to 10 TOPS) |
| Memory | 8GB LPDDR4 |
| Wireless | Wi-Fi 6 + Bluetooth 5.4 |
| Camera Interface | MIPI CSI x2 (stereo vision) |
| Audio | 3.5 mm headphone jack |
| Debug | UART serial port |
| Interfaces | CAN-FD, USB 3.0/ 2.0, GPIO headers |
| Storage | Micro SD card slot, UDB drives |
| Board Version | v1.0 (8GB model) |
| Power Supply | USB-C/ header pins/ optional PoE |
