N37—Seeed Wio Tracker L1 - Carte de développement GPS LoRa Meshtastic avec écran OLED 1,3″

Seeed Wio Tracker L1 – LoRa Meshtastic GPS Development Board (1.3" OLED Version)

Remarque : La série Wio Tracker L1 est disponible en quatre versions — choisissez celle qui correspond le mieux à vos besoins. Ce modèle est équipé d’un écran OLED de 1,3 pouce.

Caractéristiques

• Pre-Flashed with Meshtastic Firmware
  Fully pre-installed with Meshtastic firmware, allowing you to power on and get started immediately. Ideal for building peer-to-peer mesh networks without any complicated setup.
• Triple alimentation
  Prend en charge la charge rapide USB Type-C, l’alimentation solaire et la batterie Li-ion. Parfait pour les déploiements extérieurs, hors réseau et mobiles nécessitant une grande flexibilité.
• Écran OLED haute visibilité 1,3"
  Comprend un écran OLED net de 1,3 pouce 128×64 pixels pour un affichage clair en temps réel de l’état, des messages et des diagnostics avec une faible consommation d’énergie.
• Robust LoRa Connectivity
  Based on the Wio-SX1262 module, supporting 862–930 MHz frequencies for long-range, low-power wireless communication.
• Integrated High-Precision GNSS
  Equipped with the L76K module supporting GPS, BeiDou, GLONASS, and QZSS systems, ensuring reliable global positioning and tracking.
• Advanced Expandability
  Features Grove connectors for plug-and-play expansion, PTH headers, and SWD debugging pads for advanced development and prototyping. Compatible with the entire Grove ecosystem.
• Certified and Ready for Deployment
  Designed to meet FCC, CE, and RoHS standards for global deployment.

Caractéristiques techniques

• Processor: Nordic nRF52840, ARM® Cortex®-M4 with FPU, up to 64 MHz
• Memory: 1 MB Flash, 256 KB RAM
• Sans fil :
  • LoRa: Wio-SX1262 module, 862–930 MHz
  • Bluetooth 5.0
• GNSS: L76K (supports GPS, BeiDou, GLONASS, QZSS)
• Display: 1.3-inch OLED
  • Resolution: 128 × 64 pixels
  • Active Area: 34.5 × 23.0 × 1.47 mm
• Interfaces :
  • Connecteur d’affichage E-Ink 24 broches (pour les mises à niveau optionnelles d’écran E-Ink)
  • Grove Connector: UART/I2C/GPIO
  • Connecteurs PTH : UART/I2C/GPIO/Analogique
  • SWD soldering pads for debugging
• Alimentation :
  • Type-C : 5V / 1A
  • Solar input: 5V / 1A
  • Li-ion battery input: 3.7V / 1A
• Certification: FCC, CE, RoHS

Hardware Overview

• Entièrement compatible avec les capteurs et modules Grove
• Integrated antenna connectors for LoRa and GPS
• Plateforme de développement conviviale pour Meshtastic, le suivi IoT et la détection environnementale

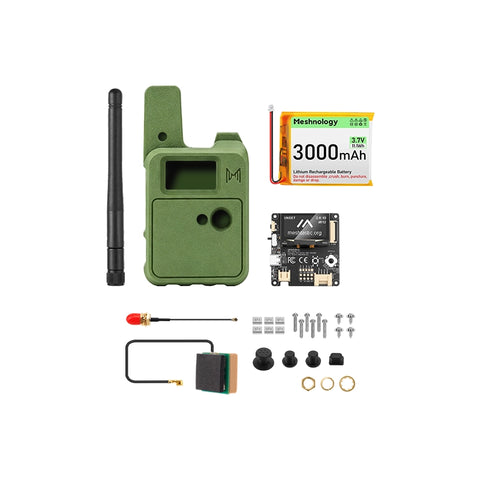

Contenu de la boîte

• 1 × carte Wio Tracker L1 avec écran OLED 1,3 pouces
• 1 × Antenne LoRa
• 1 × Câble RF 60mm (RP-SMA Femelle vers IPEX)
• 1 × GPS Antenna
• 1 × 3000 mAH Battery
• 1 × Boîtier 3D N37

Typical Applications

• Outdoor mesh network nodes
• Suivi d’actifs et d’animaux équipé GPS
• Off-grid communication systems
• Prototypage IoT DIY et éducation

Commencez dès aujourd’hui votre projet Meshtastic avec le Wio Tracker L1 – la carte GPS LoRa polyvalente, compatible open source, dotée d’un écran et d’une grande extensibilité.
