Accueil AI Flight Controllers MESHNOLOGY—RDK™ S100—« Donner à chacun le pouvoir de construire des robots. »
USX51 Industrial-Grade AI Computing Flight Controller Retour à AI Flight Controllers

Barre latérale
Promo

MESHNOLOGY—RDK™ S100—« Donner à chacun le pouvoir de construire des robots. »

Prix régulier $1,399.00 USD Prix soldé $899.00 USD
Save $500.00 USD

1. Driving the Co-evolution of Big and Small Brains in Embodied Robots.

2. Integrates computing and control robot development kit.

3. Meet the needs of research, testing and prototype construction.

4. Efficient collaboration of perception, decision-making and control to cope with complex and changing real-world scenarios.

5. Integrate CPU+BPU+MCU, super heterogeneous and efficient collaboration.

Product Description

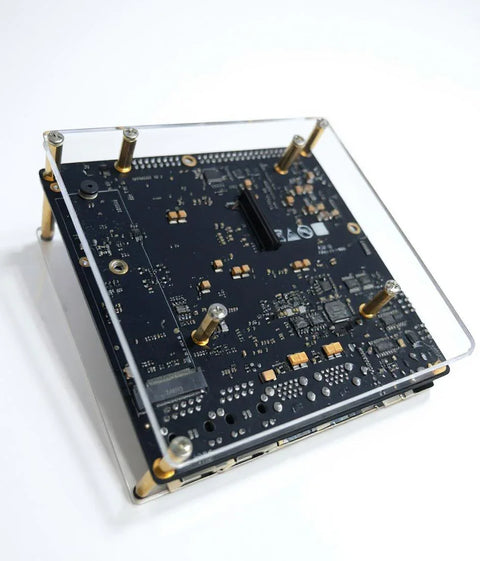

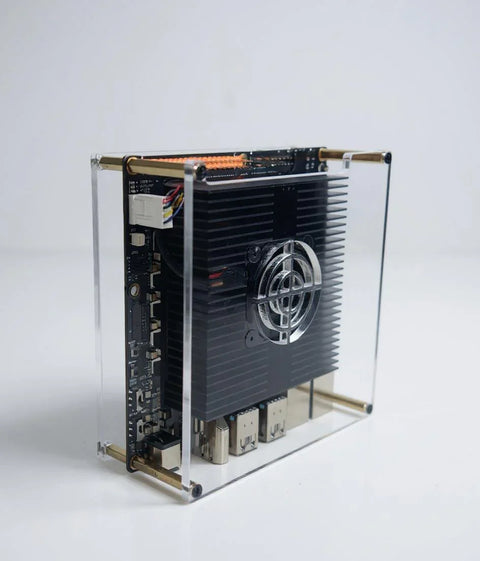

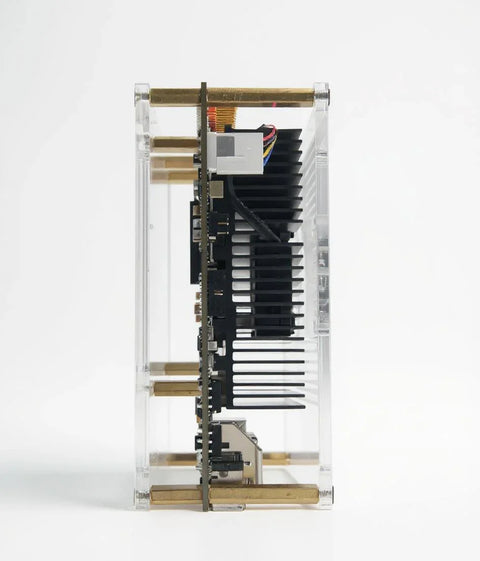

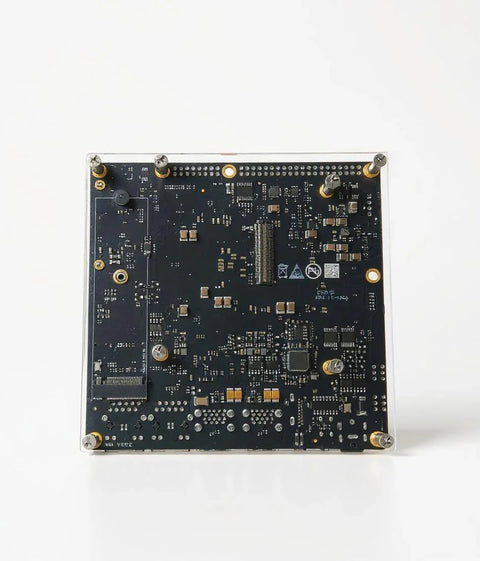

Take a Closer Look

MESHNOLOGY—RDK™ S100—« Donner à chacun le pouvoir de construire des robots. » 1
MESHNOLOGY—RDK™ S100—« Donner à chacun le pouvoir de construire des robots. » 2
MESHNOLOGY—RDK™ S100—« Donner à chacun le pouvoir de construire des robots. » 3
MESHNOLOGY—RDK™ S100—« Donner à chacun le pouvoir de construire des robots. » 4

Specification

Item Specification
Product Name
RDK S100 Developer Kit
Model
KS1E55Y
AI Computing Power
80 TOPS
CPU
6x Arm Cortex-A78AE@1.5GHz
MCU
4 x Arm Cortex-R52+@1.2GHz
GPU
1x Arm Mali-G78AE@100Gflops
Memory
12GB LPDDR5, 96-bit
Storage
64GB eMMC M.2 Key M (PCle 3.0 x1)*1
Image Output
HDMI 1.4 Up to 2K@60FPS
Network Interface
Gigabit Ethernet (RJ45 Connector)*2; M.2 Key E (PCle 3.0 x1, UART) Connector for Wi-Fi & Bluetooth
USB Interface
USB 2.0 (Type-C)*1 for flash & debug, USB 3.0 *4
Peripheral Interface
JTAG Header *1, Automatic Header *1, 40-pin Header for Main GPIO *1, 16-pin Header for MCU GPIO*1, Camera Expansion Header *1, MCU Port Expansion Header *1
Power Supply
DC 12 ~ 20 V
Size
120 * 121 * 51mm (including acrylic shell)

Warranty & After-Sales
