Meshnology Heltec WiFi LoRa 32 V4 Expansion Kits, Modular Meshtastic and IoT Dev Kit
1. All-in-One Design – Includes enclosure, expansion board, LoRa antenna, and optional modules
2. ESP32-S3 Platform – High-performance MCU for IoT and mesh networking
3. SX1262 LoRa Technology – Stable long-range communication
4. Rugged Build – Aluminum alloy frame + tempered glass + PC back cover
5. GNSS Support – Compatible with Quectel L76K positioning module
6. Motion Sensing – Built-in triaxial accelerometer (DA217)
7. Flexible Power – Supports 18650 Li-ion battery (optional)
8. Expansion Ready – SMA antenna port + B2B expansion socket
In The Box: 1 × Heltec V4 Enclosure, 1 × WiFi LoRa 32 V4 Main Board, 1 × Expansion Board, 1 × LoRa Antenna, 1 × GNSS Antenna (optional version), 1 × 18650 Battery (optional)
Guaranteed Safe Checkout
Meshnology Heltec WiFi LoRa 32 V4 Expansion Kits, Modular Meshtastic and IoT Dev Kit
Heltec WiFi LoRa 32 V4 Expansion Kit
The Heltec WiFi LoRa 32 V4 Expansion Kit is a modular Meshtastic and IoT development platform designed for rapid prototyping, field deployment, and long-range wireless communication. It combines a rugged enclosure, expansion board system, and optional GNSS and battery modules, making it ideal for outdoor and industrial IoT applications.
Take a Closer Look
Specification
| Item | Specification |
|---|---|
| MCU | ESP32-S3 series (dual-core LX7) |
| LoRa Chip | SX1262 |
| Frequency | 470–510MHz / 863–928MHz |
| Display Support | OLED/ touchscreen compatible |
| Battery | 18650 Li-ion (optional 2800mAh) |
| Interface | USB-C + SMA antenna + B2B connector |
| Positioning | GNSS expansion support |
Great item compleo with all components
Alles bestens, danke.
Great node. Performs well. Be mindful regarding keeping battery charged.
I love it.
Great communication device!
Nice!

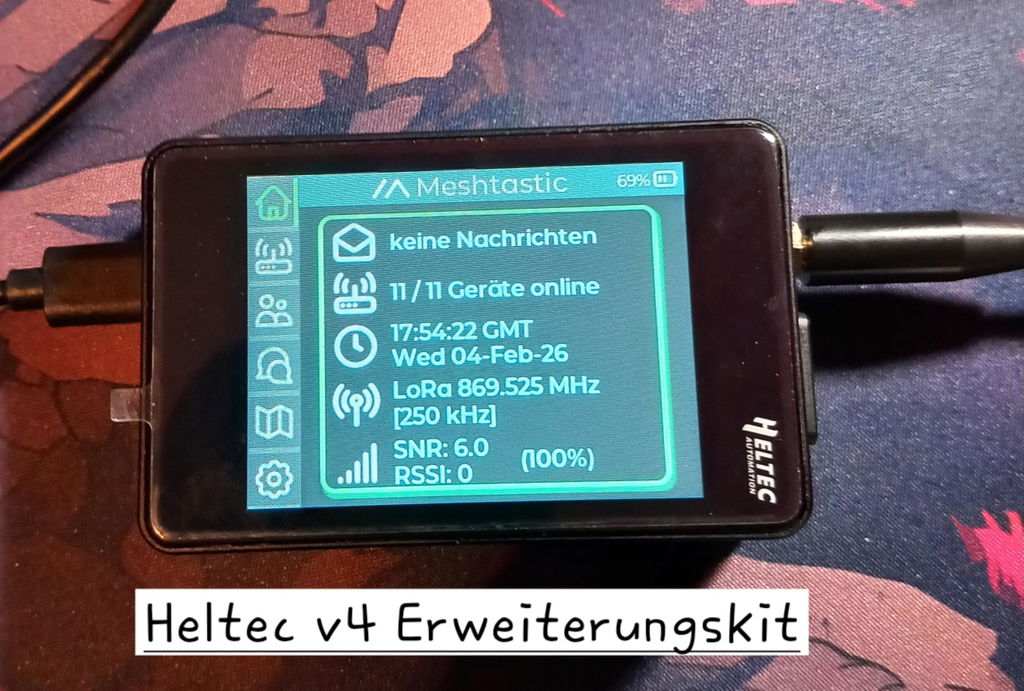

For starters, this device has some things going for it but it also has some things that need to be addressed. The Heltec V4 at the core is a great node, although it is power hungry, it will get you through about a day and a half with a 3500mAh 18650. The front and sides are solid and feel well built, but it’s when you turn it over you notice it’s deficiency. The plastic coverused to enclose the aluminum case is very thin and seems like an afterthought. A matching anodized aluminum backplate would have been much nicer. The Meshtastic software loaded with effort, I had to dig around to find a firmware version that supports the TFT display, and use the factory esp32 flashing tool to load it. Once loaded , I realized a limitation, that can hopefully be fixed with a new firmware update. You CANNOT use BLE while running the MUI. You have to boot into either a programming mode or load the Base UI (loosing a lot of the features of the touchscreen.) that would be alright, except the screen turns on when touched and this causes inadvertent interactions with the unit. Same issue with WiFi, cannot be used while running MUI.(it connects to your AP but will not be reachable by IP address) I’d like to be able to toggle the BLE from the units home tab on screen like the WiFi toggle, hopefully this is addressed in a new firmware update.
