Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino

SKU :
$11.99

Couleur: Vert

Taille: Boîtier seul

Comparer

SSL Secured Payment:

paypal american express diners club discover jcb maestro master visa
Description

Meshnology ESP32 LoRa V3 Dev Kit – SX1262 | Wi-Fi | Bluetooth 5 | Meshtastic Ready

13 Miles 20km sans WiFi ? Comment LoRa a transmis une tension sur des distances folles ! (Heltec WiFi LoRa 32 V3)



Allumez un appareil à 21 km (13 miles) de distance – Le projet LoRa ultime hors réseau avec WiFi LoRa 32 !

N32 - ESP32 LoRa V3 Dev Board Kit – SX1262, 915MHz Antennas, 3000mAh Battery

Kit de développement ESP32-S3 LoRa tout-en-un :
Équipé du processeur double cœur ESP32-S3FN8 (240 MHz), cette carte polyvalente intègre Wi-Fi, LoRa et Bluetooth 5 LE, ce qui la rend idéale pour les projets de ville intelligente, d’automatisation domestique et d’IoT sans fil. Entièrement compatible Arduino et parfaite pour les applications Meshtastic.

Exceptional Long-Range LoRa Communication:
Built with the SX1262 LoRa chip, offering 21dBm transmit power, -134dBm sensitivity, and RF shielding. Includes 863~928MHz antennas for strong, clear long-range performance in LoRaWAN networks.

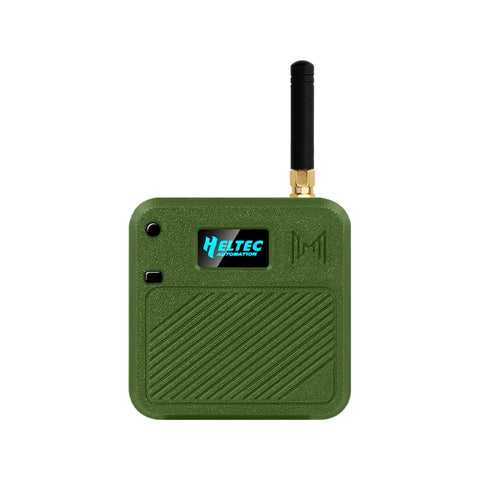

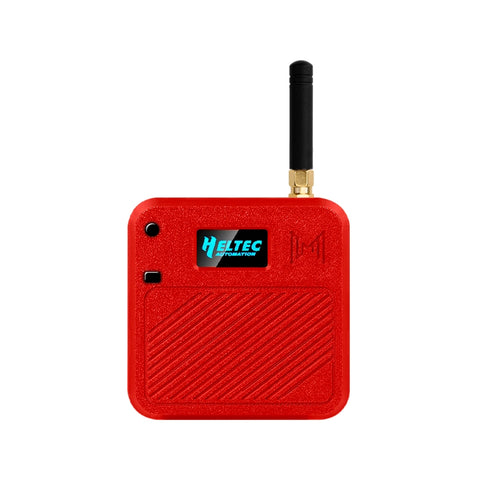

Boîtier protecteur sur mesure :

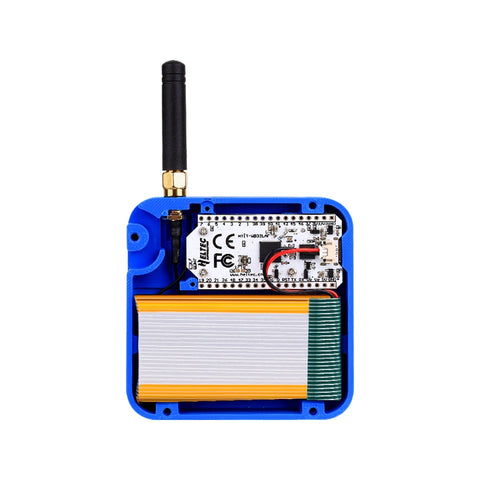

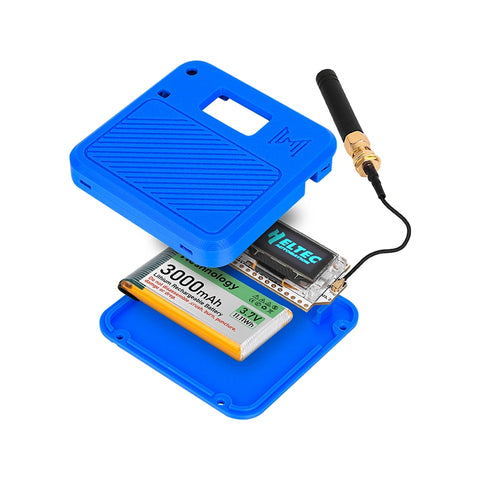

Le robuste boîtier vert N32 accueille en toute sécurité la carte, la batterie et les antennes. Découpes de précision permettant l’accès à l’écran, au port de charge Type-C, aux boutons et au port d’antenne externe. Léger et résistant pour une utilisation sur le terrain.

Powerful Battery System:
Includes 3000mAh lithium battery with built-in protection against overcharge, discharge, short circuits, and overheating. Integrated USB/Battery power switching and OLED battery level display.

Riche en fonctionnalités et convivial pour les développeurs :
Écran OLED 0,96", CP2102 USB-vers-Série, double connecteur batterie, port IPEX et nombreuses E/S : ADC, I2C, SPI, UART et capteurs tactiles pour une extension flexible.

Le pack comprend :
carte ESP32-S3 LoRa V3, antenne 863~928MHz, batterie 3000mAh et boîtier sur mesure.

N32 - ESP32 LoRa V3 Dev Board Kit – SX1262, 915MHz Antennas, 3000mAh Battery
N32 - ESP32 LoRa V3 Dev Board Kit – SX1262, 915MHz Antennas, 3000mAh Battery

Caractéristiques de la carte ESP32 LoRa V3

Puce principale ESP32-S3FN8 (processeur double cœur Xtensa 32 bits LX7)
Puce de nœud LoRa SX1262
Puces USB vers série CP2102
Fréquence 470~510MHz, 863~928MHz
Puissance TX max. 21±1dBm
Sensibilité de réception maximale -134dBm@SF12 BW=125KHz
Wi-Fi 802.11 b/g/n, jusqu’à 150 Mbps
Bluetooth Bluetooth 5 (LE)
Ressources matérielles 7*ADC1 + 2*ADC2 ; 7*Touch ; 3*UART ; 2*I2C ; 2*SPI ; etc.
Mémoire 384KB ROM ; 512KB SRAM ; 16KB RTC SRAM ; 8MB SiP Flash
Interface USB Type-C ; 2*1,25 interface batterie lithium ; LoRa ANT (IPEX1.0) ; 2*18*2,54 broches d’en-tête
Batterie Alimentation et charge par batterie lithium 3,7V
Operating Temperature -20 ~ 70 ℃
Dimensions 50,2 × 25,5 × 10,2 mm

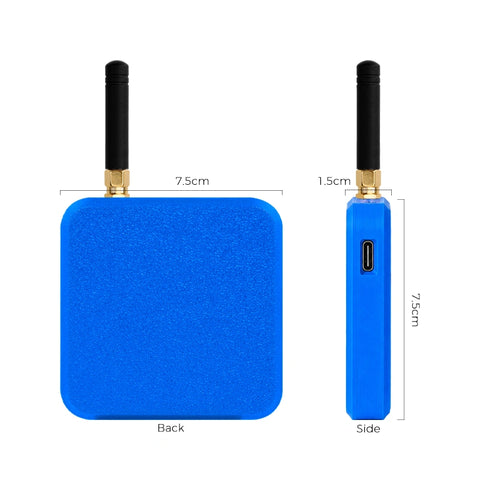

Dimensions

Puce principale ESP32-S3FN8 (processeur double cœur Xtensa 32 bits LX7)
Puce de nœud LoRa SX1262
Puces USB vers série CP2102
Fréquence 470~510MHz, 863~928MHz
Puissance TX max. 21±1dBm
Sensibilité de réception maximale -134dBm@SF12 BW=125KHz
Wi-Fi 802.11 b/g/n, jusqu’à 150 Mbps
Bluetooth Bluetooth 5 (LE)
Ressources matérielles 7*ADC1 + 2*ADC2 ; 7*Touch ; 3*UART ; 2*I2C ; 2*SPI ; etc.
Mémoire 384KB ROM ; 512KB SRAM ; 16KB RTC SRAM ; 8MB SiP Flash
Interface USB Type-C ; 2*1,25 interface batterie lithium ; LoRa ANT (IPEX1.0) ; 2*18*2,54 broches d’en-tête
Batterie Alimentation et charge par batterie lithium 3,7V
Operating Temperature -20 ~ 70 ℃
Dimensions 50,2 × 25,5 × 10,2 mm
Numéro du modèle d'article V3
Poids de l’article 5,3 onces
Dimensions du colis 15,24 x 12,7 x 3,7 cm
Fabricant Meshnology

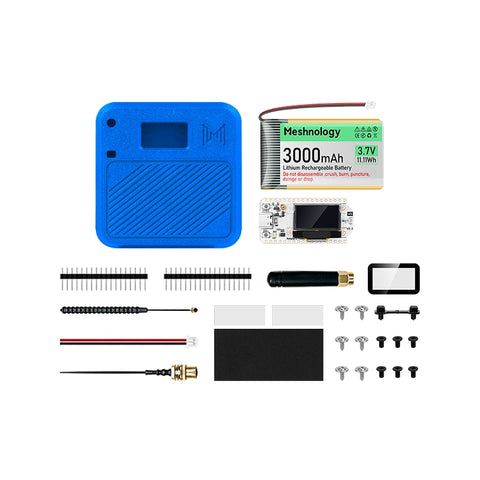

Dans la boîte

  • Boîtier de protection N32 (Vert ou Rouge)
  • 1 x Node de développement ESP32 Wifi & LoRa V3
  • 1 x Batterie Meshnology 3000mAh
  • 1 x 863~928MHz Antenne x 1

Ressources

Trouvez plus de fichiers et de documents sur Wiki Meshnology & Page Code Lab

Related Items For Meshnology N32

N32 - Boîtier imprimé en 3D pour Heltec LoRa V3 Node - Vert/Rouge

3.7V 3000mAh LiPo Battery with Protection Board, Micro JST 1.25 Plug & USB Charging Cable3.7V 3000mAh LiPo Battery with Protection Board, Micro JST 1.25 Plug & USB Charging Cable

Comparatif des séries ESP32 LoRa


 MESHNOLOGY-N30 MESHNOLOGY-N32 MESHNOLOGY-N33 MESHNOLOGY-N35
Caractéristique N30 N32 N33 N35
Processeur ESP32-S3FN8 (double cœur 240 MHz) ESP32-S3FN8 (double cœur 240 MHz) ESP32-S3FN8 (double cœur 240 MHz) ESP32-S3FN8 (double cœur 240 MHz)
Puce LoRa SX1262 SX1262 SX1262 SX1262
Fréquence 470~510MHz,
863~928MHz 		470~510MHz,
863~928MHz 		470~510MHz,
863~928MHz 		470~510MHz,
863~928MHz
Batterie 1100mAh Li-ion 3000mAh Li-ion 3000mAh Li-ion 3000mAh Li-ion
Affichage OLED 0,96" (128x64, I2C, SSD1315) OLED 0,96" (128x64, I2C, SSD1315) OLED 0,96" (128x64, I2C, SSD1315) OLED 0,96" (128x64, I2C, SSD1315)
Antenne Externe 863~928MHz Antenne Externe 863~928MHz Antenne Externe 863~928MHz Antenne Externe 863~928MHz Antenne
Entrée d'alimentation USB-C USB-C USB-C USB-C
Compatible avec Arduino, Meshtastic, LoRaWAN Arduino, Meshtastic, LoRaWAN Arduino, Meshtastic, LoRaWAN Arduino, Meshtastic, LoRaWAN
Cas Custom 3D-printed with OLED window Boîtier de protection avec emplacement OLED Boîtier de protection avec emplacement OLED Boîtier de protection avec emplacement OLED
Cas d'utilisation Low-power portable LoRa device Batterie longue durée pour déploiement sur le terrain IoT, maison connectée, communications longue portée Format de poche, performance toute la journée
