📦 Stock Notice – N37
The Meshnology N37 is currently out of stock. Orders placed now will be treated as pre-orders.
Due to the Chinese New Year holiday, logistics services may be suspended between February 5–15. As a result, orders may be shipped after we return from the holiday, with the latest expected dispatch between February 24–25.
If the new batch arrives at our warehouse before February 5, orders may be shipped in the final shipment before the holiday suspension.
Key Features
- Pre-Flashed with Meshtastic Hardware: The Meshnology N37 kit is pre-installed with Meshtastic hardware, allowing you to power on and get started immediately. Ideal for building peer-to-peer mesh networks without any complicated setup.
- Triple Power Supply Options: Supports USB Type-C fast charging, solar input, and Li-ion battery power. Perfect for outdoor, off-grid, and mobile deployments where flexibility is essential.
- High-Visibility 1.3" OLED Display: Includes a crisp 1.3-inch 128×64 pixel OLED display for clear real-time status, messages, and diagnostics with low power draw.
- Robust LoRa Connectivity: Based on the Wio-SX1262 module, supporting 862–930 MHz frequencies for long-range, low-power wireless communication.
- Integrated High-Precision GNSS: Equipped with the L76K module supporting GPS, BeiDou, GLONASS, and QZSS systems, ensuring reliable global positioning and tracking.
- Advanced Expandability: Features Grove connectors for plug-and-play expansion, PTH headers, and SWD debugging pads for advanced development and prototyping. Compatible with the entire Grove ecosystem.
- Certified and Ready for Deployment: Designed to meet FCC, CE, and RoHS standards for global deployment.
- Wild suitibilities: This LoRa dev board kit is Compatible with Grove sensors and modules. Integrated antenna connectors for LoRa and GPS
- Extensive Use: User-friendly development platform for Meshtastic, IoT tracking, and environmental sensing
Specifications
- Product model: Meshnology N37
- Processor: Nordic nRF52840, ARM® Cortex®-M4 with FPU, up to 64 MHz
- Memory: 1 MB Flash, 256 KB RAM
- Wireless:LoRa: Wio-SX1262 module, 862–930 MHz
- Bluetooth 5.0
- GNSS: L76K (supports GPS, BeiDou, GLONASS, QZSS)
- Display: 1.3-inch OLED
- Resolution: 128 × 64 pixels
- Active Area: 34.5 × 23.0 × 1.47 mm
- Interfaces:24P E-Ink Display Connector (for optional E-Ink screen upgrades)
- Grove Connector: UART/I2C/GPIO
- PTH headers: UART/I2C/GPIO/Analog
- SWD soldering pads for debugging
- Power:Type-C: 5V / 1A
- Solar input: 5V / 1A
- Li-ion battery input: 3.7V / 1A
- Certification: FCC, CE, RoHS
Meshnology N37 Applications
- Outdoor mesh network nodes
- GPS-enabled asset and wildlife tracking
- Off-grid communication systems
- DIY IoT prototyping and education
Start your Meshtastic project now with the Wio Tracker L1. This board is a flexible, open-source-compatible LoRa GPS device. It has a display and great options for expansion.
Important Note about Meshnology-N37

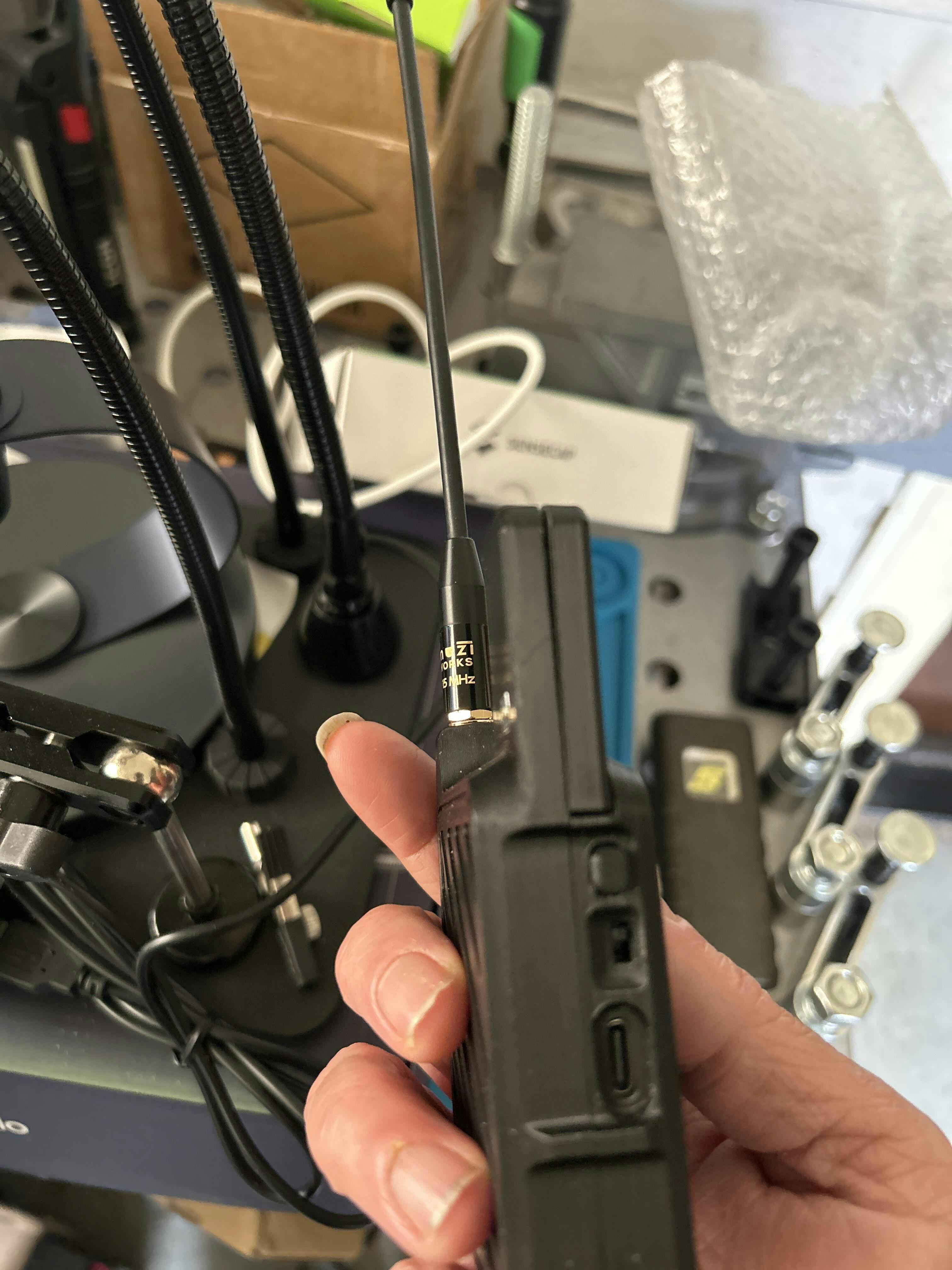

If pressing the center button on your N37 kit doesn't yield a response, various factors could be at play. Please attempt the solution depicted in the image below, as suggested by Reddit user “GearLegion.”
We are also actively working on fixing this button issue.
In the meantime, we encourage you to explore the other features of the N37 kit while you wait for your order to arrive. The Wio Tracker L1 is equipped with advanced GPS capabilities, allowing you to track locations with impressive accuracy. Additionally, the 1.3" OLED display provides clear visibility of important information, making it easy to monitor your device's status and performance.
For those who are new to using LoRa technology, we recommend checking out our online resources and community forums. These platforms are filled with helpful tips, tutorials, and project ideas that can enhance your experience with the N37. Engaging with fellow users can also provide insights into creative applications for your device.
If you encounter any issues or have questions about your N37 kit, please don’t hesitate to reach out to our customer support team. We are here to assist you and ensure that you have a smooth experience with your new development board.
Thank you once again for your understanding and support. We are excited for you to start your journey with the Meshnology N37 and look forward to seeing the innovative projects you create!
Kindly Note
The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs. This model comes with a 1.3-inch OLED screen.
Useful Links & Related Products
Meshnology Wiki & Code Lab Page
Meshnology—N39 - WiFi LoRa 32 V4 Development Kit 3000mAh Battery, 863~928MHz Antennas
Package Content
- 1 × Wio Tracker L1 Board with 1.3-inch OLED Display
- 1 × LoRa Antenna
- 1 × 60mm RF Cable (RP-SMA Female to IPEX)
- 1 × GPS Antenna
- 1 × 3000 mAH Battery
- 1 × N37 3D Case
| Color |
Green, Black, Twilight Purple, Green+Black, Black+Twilight Purple, Green+Twilight Purple, Green+Black+Twilight Purple |
|---|---|
| Size |
Only Case, 1 Set (Board+Battery+Case), 2 Sets (Board+Battery+Case) |
