N33 - ESP32 LoRa V3 Kit with 915MHz Antenna, 3000mAh Battery & Case - WiFi Bluetooth for Arduino IoT Meshtastic

$49.99

🚚Shipping rates at checkout page (FREE SHIPPING to most of countries).

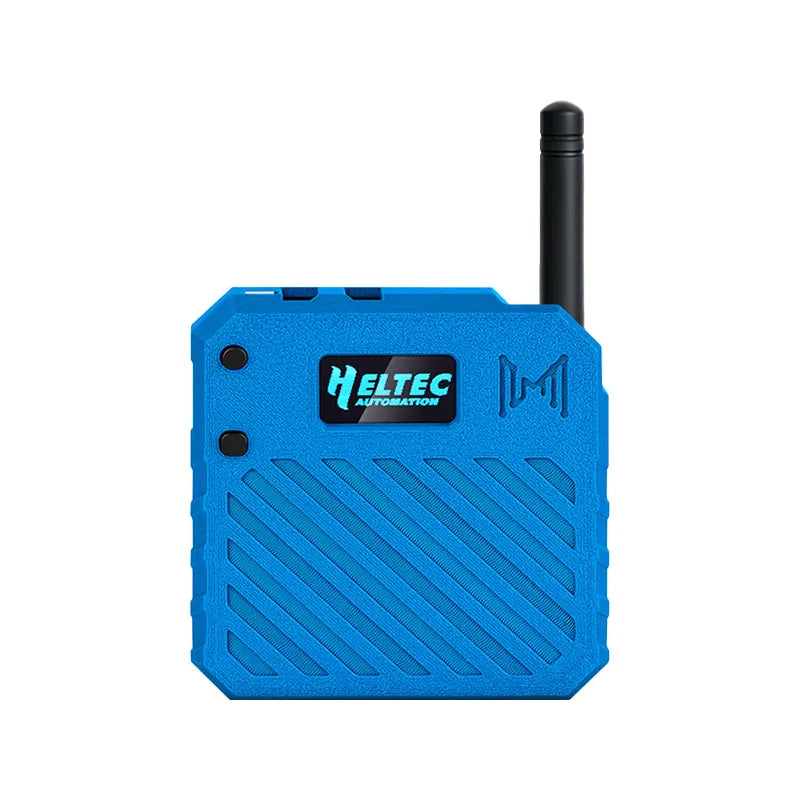

Color: Red

Red
Blue
Green

Size: 1 Set

1 Set
2 Set

10% Off Opening Sale:mesh10

SSL Secured Payment:

paypalamerican expressdiners clubdiscoverjcbmaestromastervisa
Description

Meshnology N33 - ESP32 LoRa V3 Development Kit – 915MHz Antennas, 3000mAh Battery, Rugged Case – Ideal for Meshtastic, LoRaWAN, and IoT

Complete Wireless IoT Development Kit
Powered by a dual-core ESP32 processor (240 MHz) and integrated SX1262 LoRa chip, this board delivers reliable long-range communication with built-in Wi-Fi, Bluetooth, and LoRa support. Fully compatible with Meshtastic, LoRaWAN, Arduino IDE, and custom telemetry systems.

Efficient Power Management System
Comes with a 3000mAh 3.7V Li-ion rechargeable battery, supporting USB Type-C charging, automatic power source switching, and overcharge protection. Provides up to 26 hours runtime, ensuring stable operation in field or mobile projects.

Reliable RF Performance
Includes dual 915MHz antennas (SMA external and IPEX internal) with RF shielding for reduced interference and enhanced signal quality. Perfect for establishing long-range, secure LoRa connections across diverse environments.

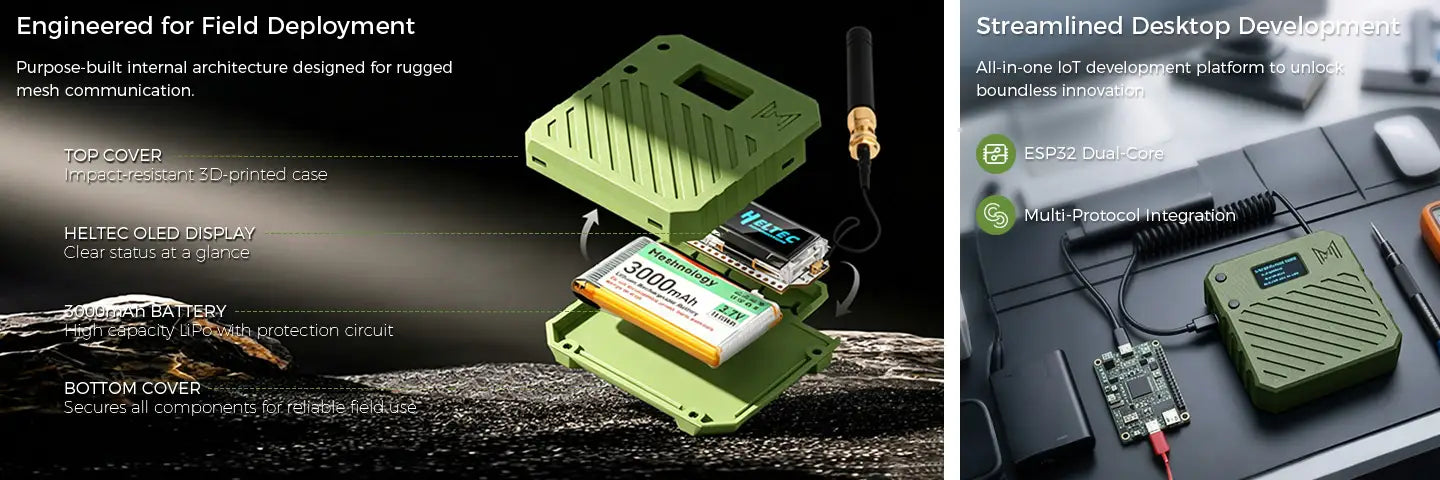

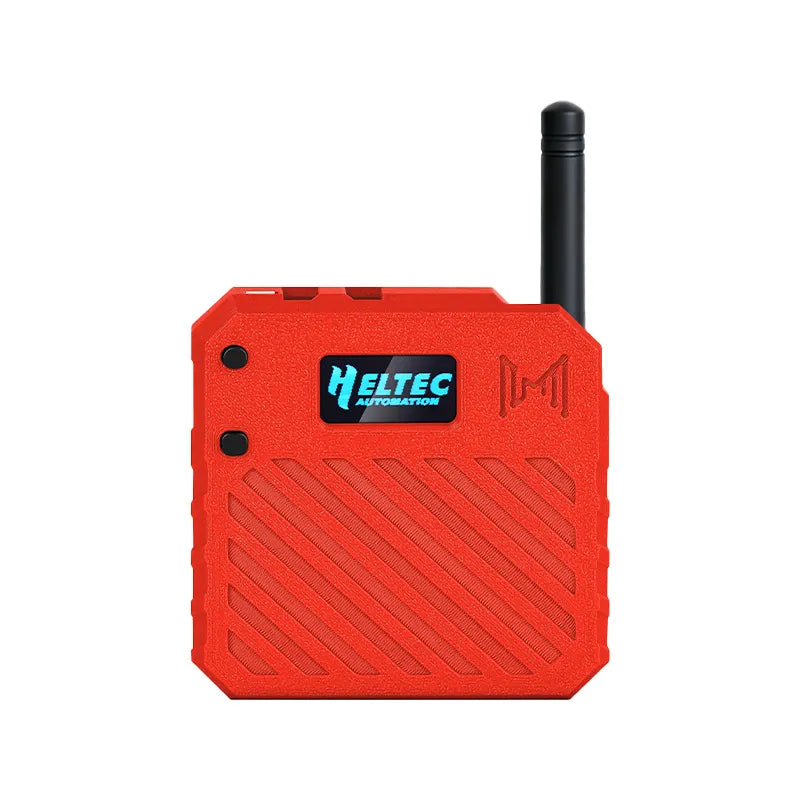

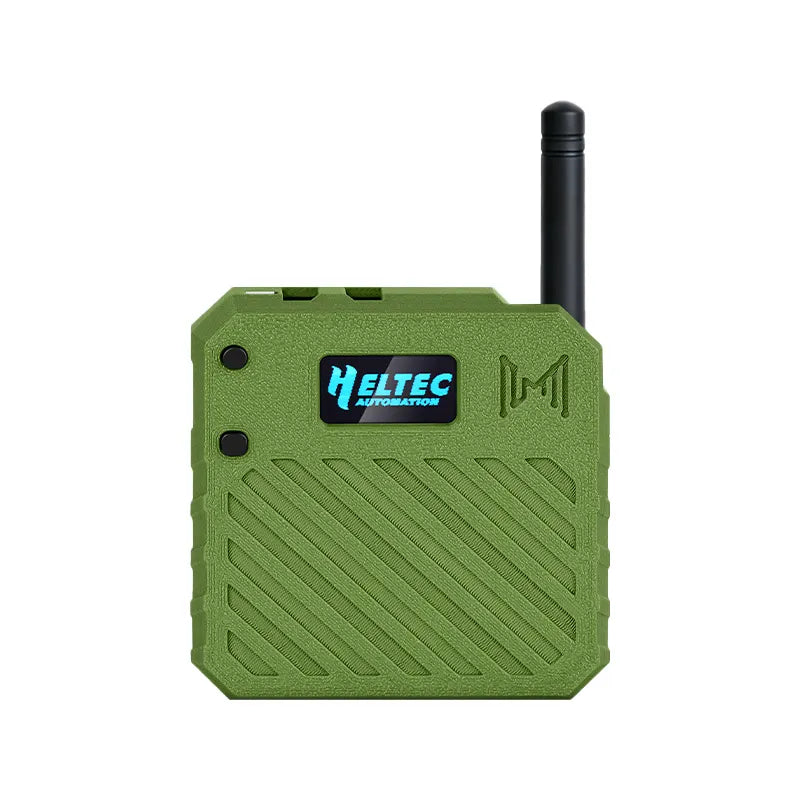

Rugged Protective Enclosure
Enclosed in a custom-designed N33 protective case with ventilation slots, this kit is both shockproof and weather-resistant, making it ideal for outdoor deployments, mobile testing, and long-term installations.

Built-in OLED Display & Developer-Friendly Design
Features a 0.96-inch OLED screen (128x64) for live debug data, sensor readings, and battery status. The onboard CP2102 USB-to-serial interface ensures fast, stable programming. Includes a reserved IPEX port for antenna expansion or upgrades.

Applications
LoRaWAN gateways and nodes
Meshtastic mesh networking
Smart agriculture and environmental monitoring
Remote telemetry and asset tracking
Wireless sensor networks and hobbyist IoT projects

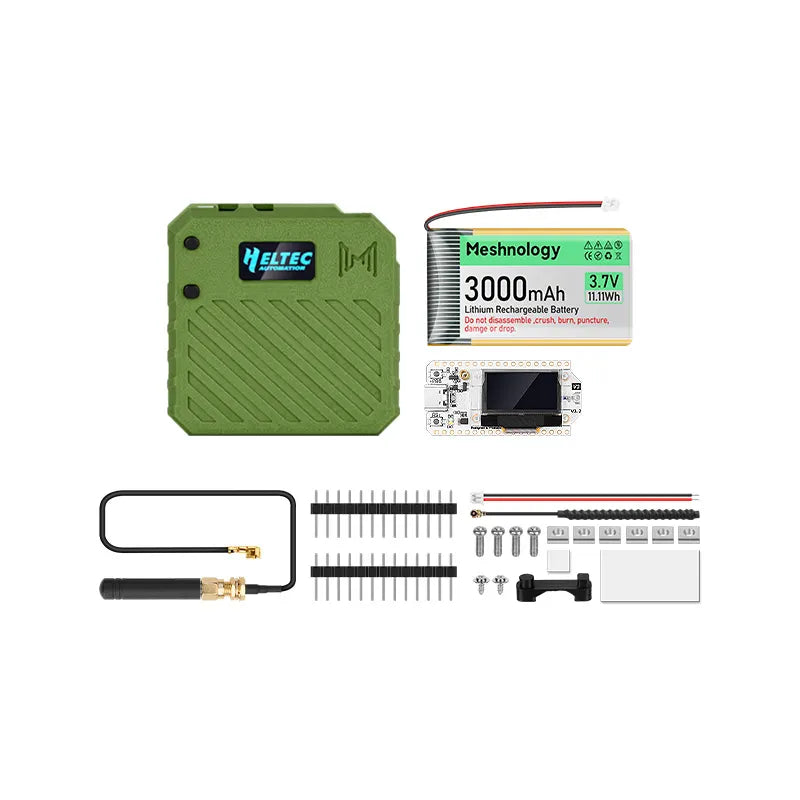

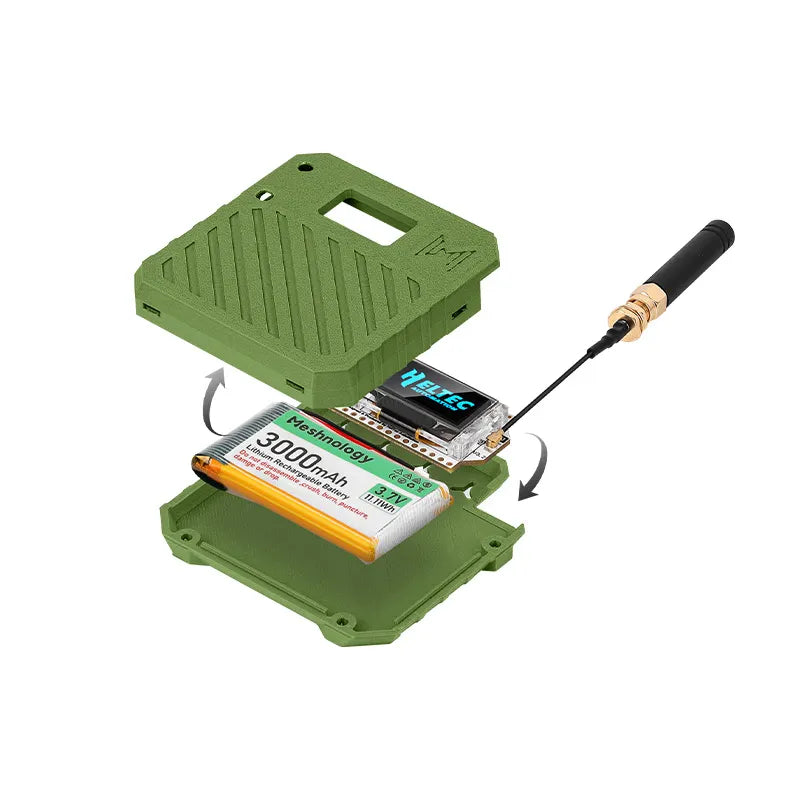

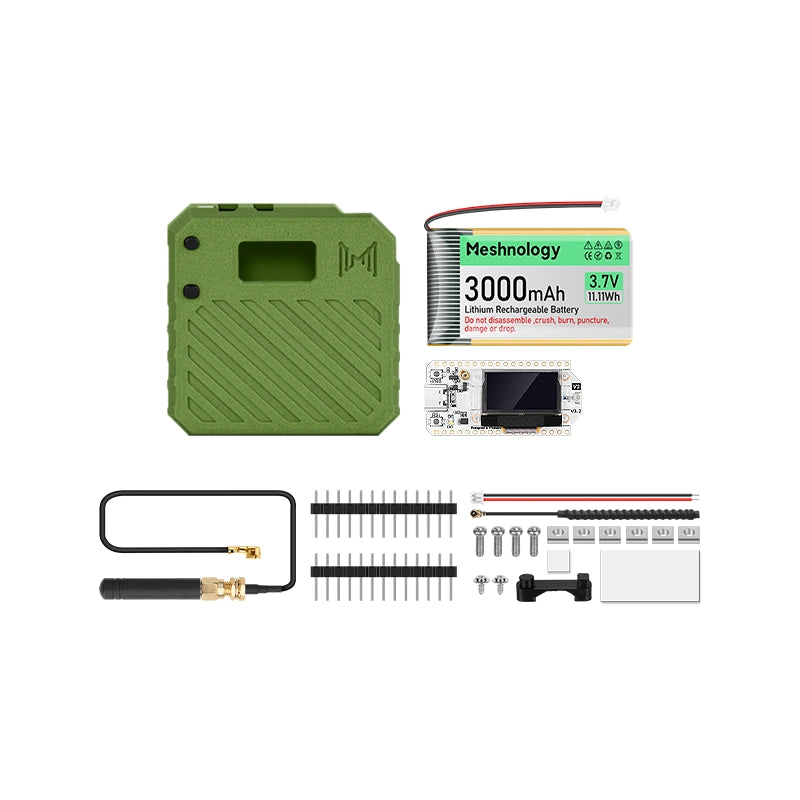

Package Includes
ESP32 LoRa V3 Board
3000mAh Li-ion Battery
N33 Protective Case
915MHz SMA Antenna
915MHz IPEX Antenna

Dimensions and Weight
Size (with case): 100mm × 45mm × 30mm
Weight (with battery): Approx. 95g

N33 - ESP32 LoRa V3 Kit with 915MHz Antenna, 3000mAh Battery & Case - WiFi Bluetooth for Arduino IoT Meshtastic
N33 - ESP32 LoRa V3 Kit with 915MHz Antenna, 3000mAh Battery & Case - WiFi Bluetooth for Arduino IoT Meshtastic

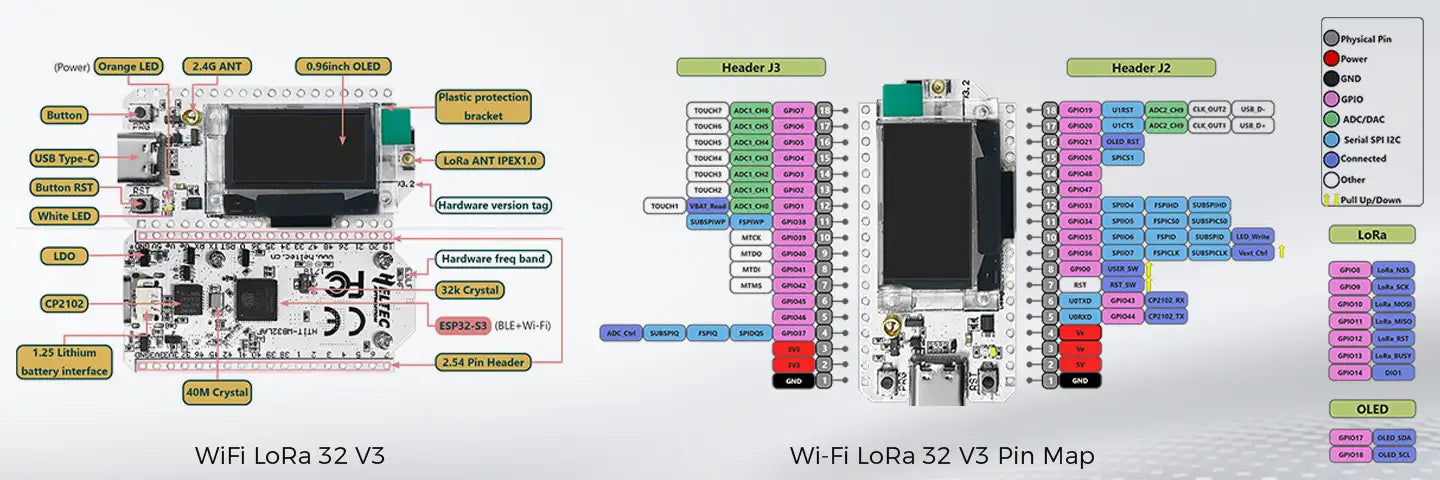

Specifications of ESP32 LoRa V3 Board

Master Chip ESP32-S3FN8 (Xtensa 32-bit LX7 dual-core processor)
LoRa Node Chip SX1262
USB to Serial Chip CP2102
Frequency 470~510MHz, 863~928MHz
Max. TX Power 21±1dBm
Max. Receiving Sensitivity -134dBm@SF12 BW=125KHz
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth Bluetooth 5 (LE)
Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery 3.7V lithium battery power supply and charging
Operating Temperature -20 ~ 70 ℃
Dimensions 50.2 * 25.5 * 10.2 mm

Dimensions

Master Chip ESP32-S3FN8 (Xtensa 32-bit LX7 dual-core processor)
LoRa Node Chip SX1262
USB to Serial Chip CP2102
Frequency 470~510MHz, 863~928MHz
Max. TX Power 21±1dBm
Max. Receiving Sensitivity -134dBm@SF12 BW=125KHz
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth Bluetooth 5 (LE)
Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery 3.7V lithium battery power supply and charging
Operating Temperature -20 ~ 70 ℃
Dimensions 50.2 * 25.5 * 10.2 mm
Item Model Number V3
Item Weight 5.3 ounces
Package Dimensions 6 x 5 x 1.46 inches
Manufacturer Meshnology

In the Box

  • N33 Protect Case (Green/Blue/Red )
  • 1 x ESP32 LoRa V3 Development Board
  • 1 x 3000mAh Meshnology Battery
  • 1 x 915MHz Antenna x 1

Resources

Find more files and documents on Meshnology Wiki & Code Lab Page

Related Items For Meshnology N33


3.7V 3000mAh LiPo Battery with Protection Board, Micro JST 1.25 Plug & USB Charging Cable3.7V 3000mAh LiPo Battery with Protection Board, Micro JST 1.25 Plug & USB Charging Cable

ESP32 LoRa Series Comparison


MESHNOLOGY-N30 MESHNOLOGY-N32 MESHNOLOGY-N33 MESHNOLOGY-N35
Feature N30 N32 N33 N35
Processor ESP32-S3FN8 (dual-core 240MHz) ESP32-S3FN8 (dual-core 240MHz) ESP32-S3FN8 (dual-core 240MHz) ESP32-S3FN8 (dual-core 240MHz)
LoRa Chip SX1262 SX1262 SX1262 SX1262
Frequency 915MHz 915MHz 915MHz 915MHz
Battery 1000mAh Li-ion 3000mAh Li-ion 3000mAh Li-ion 3000mAh Li-ion
Display 0.96" OLED (128x64, I2C, SSD1315) 0.96" OLED (128x64, I2C, SSD1315) 0.96" OLED (128x64, I2C, SSD1315) 0.96" OLED (128x64, I2C, SSD1315)
Antenna External 915MHz Antenna External 915MHz Antenna External 915MHz Antenna External 915MHz Antenna
Power Input USB-C USB-C USB-C USB-C
Compatible With Arduino, Meshtastic, LoRaWAN Arduino, Meshtastic, LoRaWAN Arduino, Meshtastic, LoRaWAN Arduino, Meshtastic, LoRaWAN
Case Custom 3D-printed with OLED window Protective case with OLED slot Protective case with OLED slot Protective case with OLED slot
Use Cases Low-power portable LoRa device Long-lasting battery for field deployment IoT, smart home, long-range comms Pocket-Sized, All-Day Performance
