MeshTower Solar-Powered Outdoor Communication System
Note: The previous version of this outdoor solar node is currently out of stock and undergoing hardware upgrades. No confirmed shipping schedule is available for the new revision. Orders placed now will be treated as pre-orders.
Overview

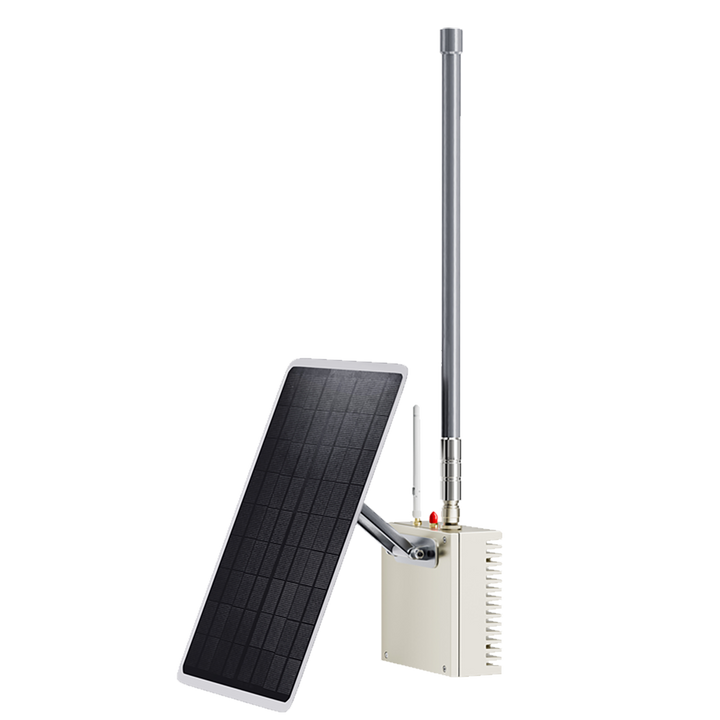

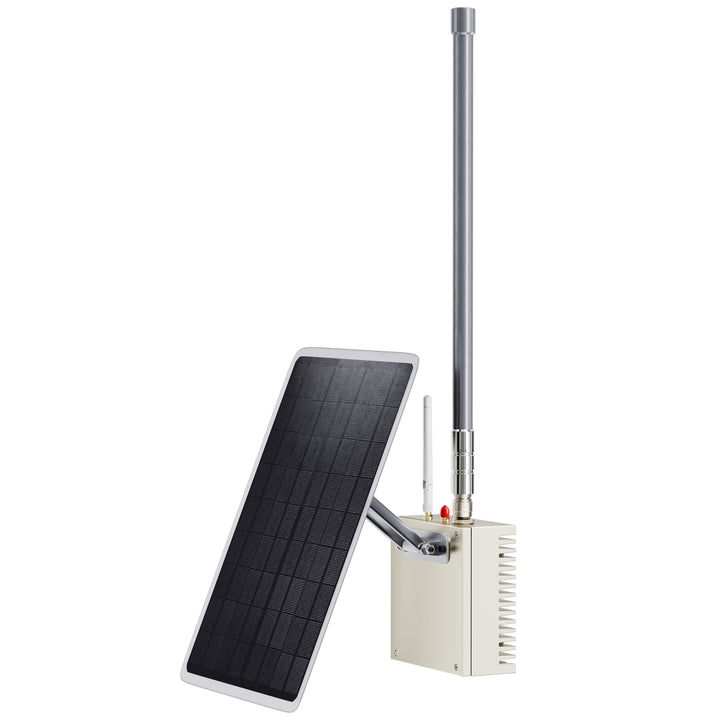

- MeshTower s1 is a rugged, solar-powered off-grid communication node designed for long-term outdoor deployment and decentralized mesh networking.
- Built on MeshSolar architecture, this meshtastic solar node integrates solar energy harvesting and high-capacity battery storage to ensure continuous operation in remote environments.
- It combines LoRa long-range communication, Bluetooth Low Energy, and SMA external antenna support for stable connectivity in harsh conditions.
Key Features
- Solar-Powered Off-Grid Operation – 18V solar input for continuous energy harvesting.
- High-Capacity Battery System – 3 × 2800mAh lithium batteries for extended runtime.
- Dual Connectivity – LoRa (SX1262) + BLE (nRF52840).
- SMA External Antenna Support – Enhanced signal range and stability.
- IP65 Rugged Enclosure – Waterproof aluminum alloy housing.
- Wide Temperature Range – Stable operation from -20°C to 60°C.

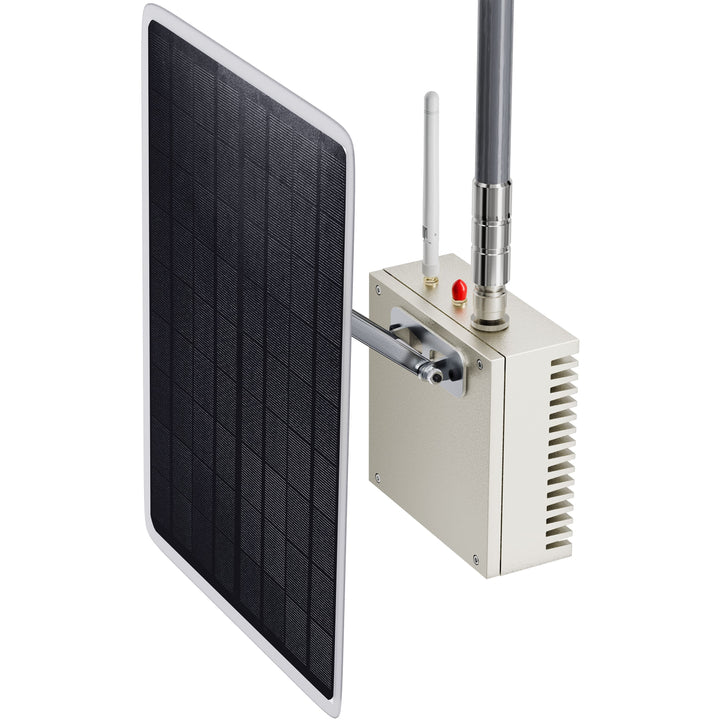

- Flexible Mounting – Supports pole and wall installation.
Technical Specifications

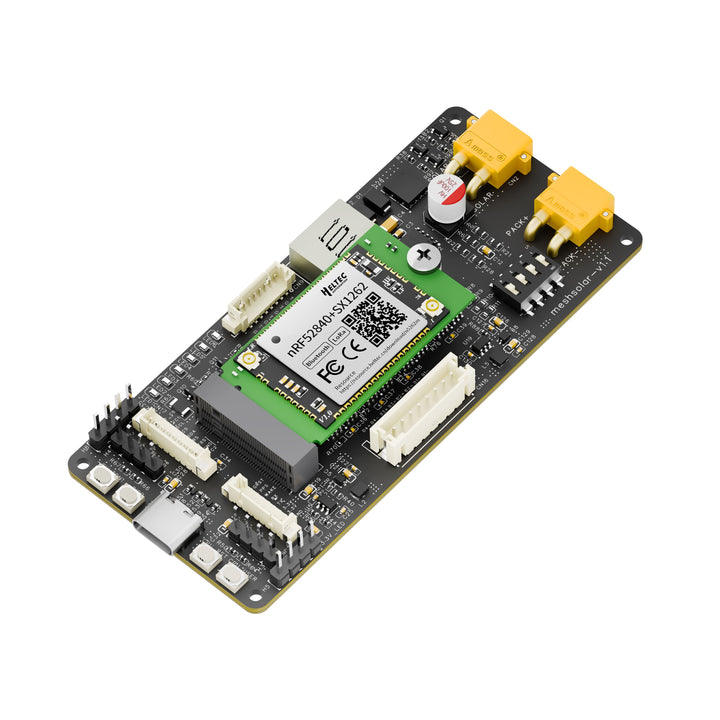

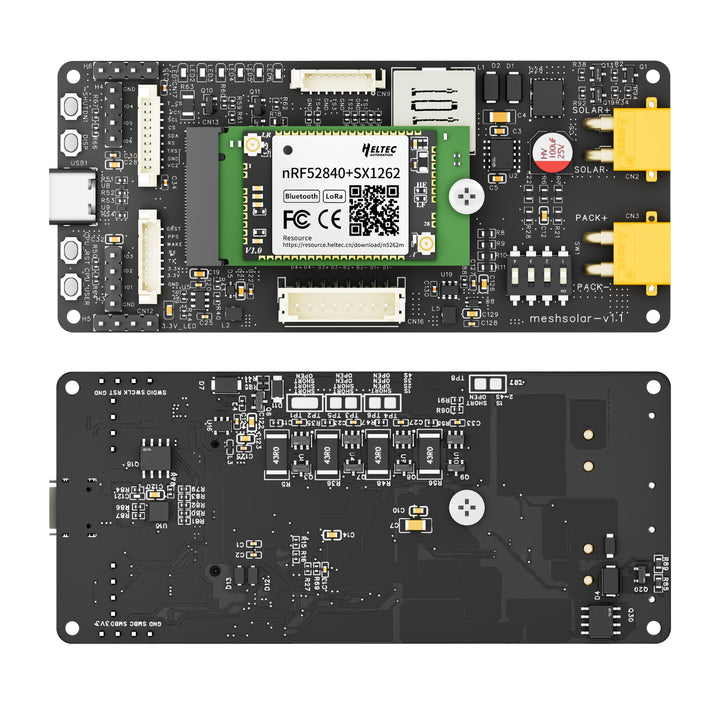

- Mainboard: MeshSolar Platform
- MCU: nRF52840 (BLE)
- LoRa Chip: SX1262
- Frequency: 863–870 MHz / 902–928 MHz
- Solar Panel: 18V / 10W

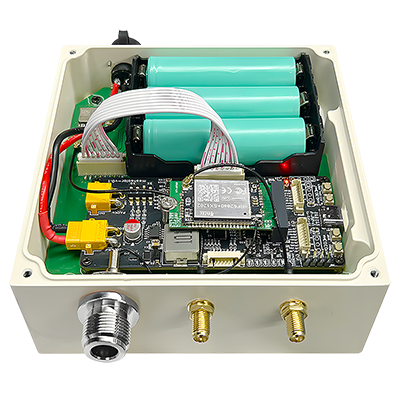

- Battery: 3 × 2800mAh lithium pack
- Input: 18–25V DC
- Protection: IP65 waterproof
- Enclosure: Aluminum alloy
- Temperature: -20°C to 60°C
- LoRa Power: 21 ± 1 dBm
Applications
- Off-grid Meshtastic mesh networks
- Remote environmental monitoring
- Emergency communication systems
- Smart agriculture & field IoT
- Disaster recovery infrastructure
- Autonomous outdoor sensor networks
Packing List
- MeshTower Main Unit
- 10W Solar Panel with Waterproof Connector
- N-Type Fiberglass Antenna
- 2.4GHz Rubber Antenna
- GPS Antenna
- USB-C Cable
- Wall Mount Backplate
FAQs
Q: Does it support DC input?
A: Yes, 18–25V DC input is supported.
Q: Is firmware upgrade supported?
A: Yes, via USB Type-C or Micro-USB depending on version.
Q: Is it weatherproof?
A: Yes, IP65-rated for outdoor environments.
| Model |
MeshTower(Without GPS), MeshTower(With GPS) |
|---|
