Description

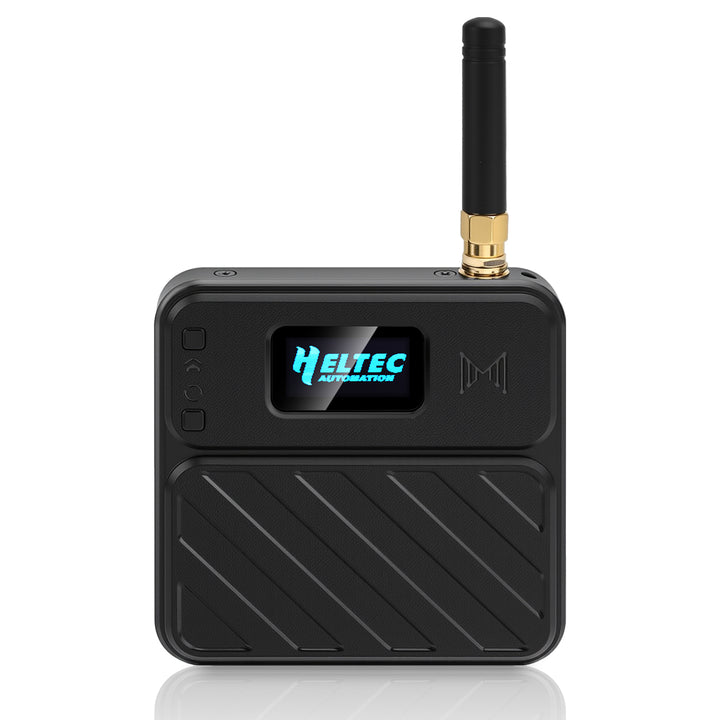

Meshnology N32 Plus ESP32 LoRa V3 Meshtastic Development Node Kit
Video Showcase
Meshnology N32 Plus – Unboxing, Build & Setup Guide | DIY Made Simple for Meshtastic & IoT Deployment
Overview
- The Meshnology N32 Plus is a fully assembled ESP32-S3 + SX1262 LoRa development node designed for rapid deployment of Meshtastic mesh networks, IoT sensing systems, and off-grid communication projects.
- Pre-integrated with a protective enclosure, high-capacity battery, and external antenna, N32 Plus delivers a true plug-and-play experience for developers, makers, and field operators who need reliable long-range wireless connectivity.
- Heltec V3 meshnology meshtastic device built for portability and durability, it is ideal for outdoor deployment, smart monitoring, emergency communication, and long-range IoT experiments.

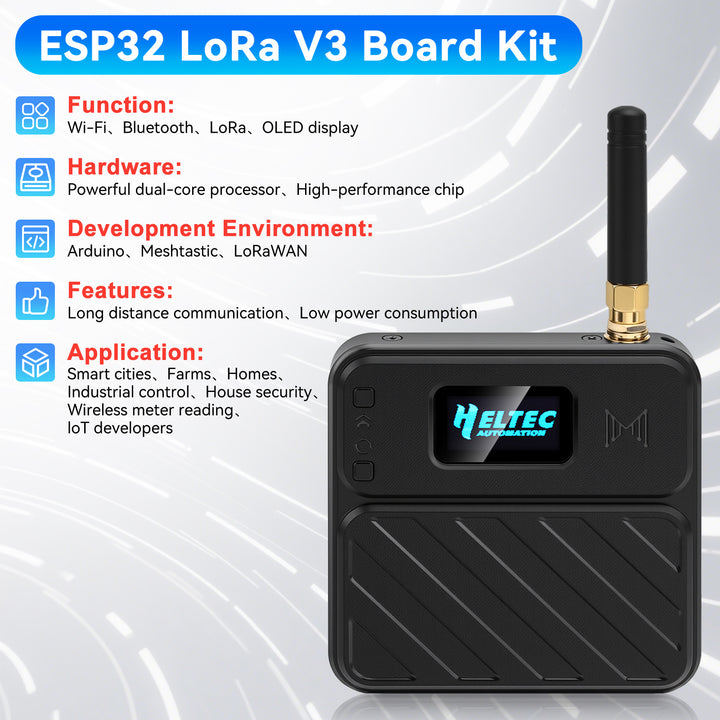

Core Highlights
- All-in-One Meshtastic Node – Pre-built ESP32 + LoRa + battery + enclosure system
- Long-Range SX1262 LoRa Communication – Stable transmission with high sensitivity (-134 dBm) and up to 21 dBm output

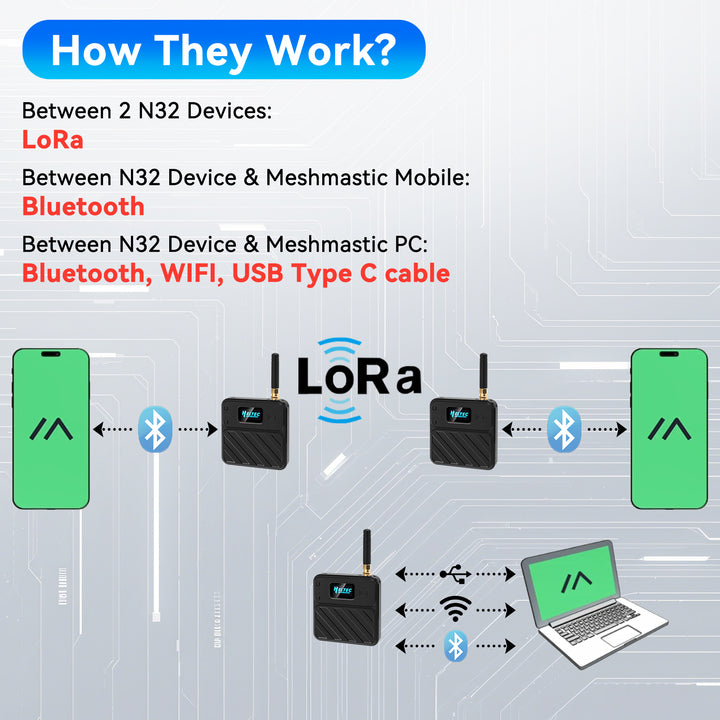

- Multi-Protocol Wireless – Wi-Fi, Bluetooth 5 (BLE), and LoRa integrated in one platform
- Plug & Play Deployment – Ready-to-use design, no complex assembly required
- 3000mAh High-Capacity Battery – Built-in protection circuit for safe field operation

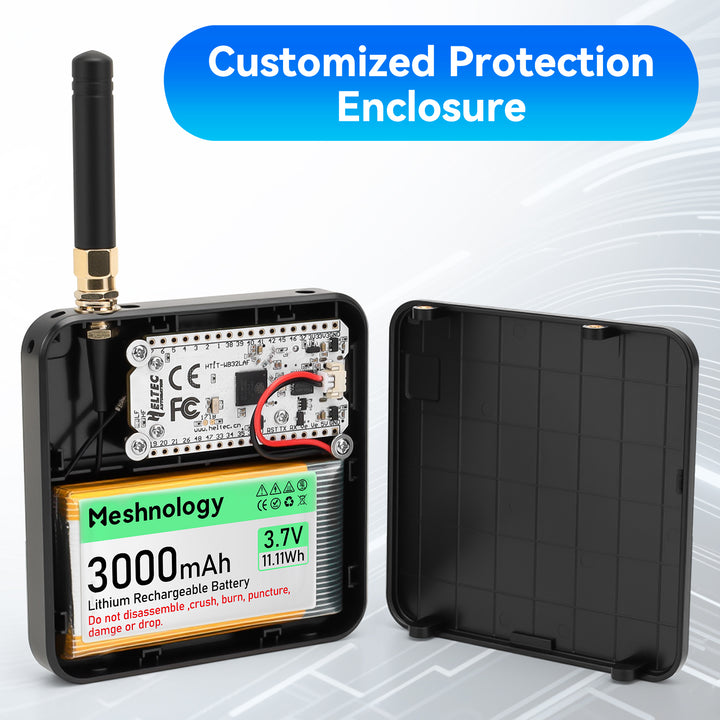

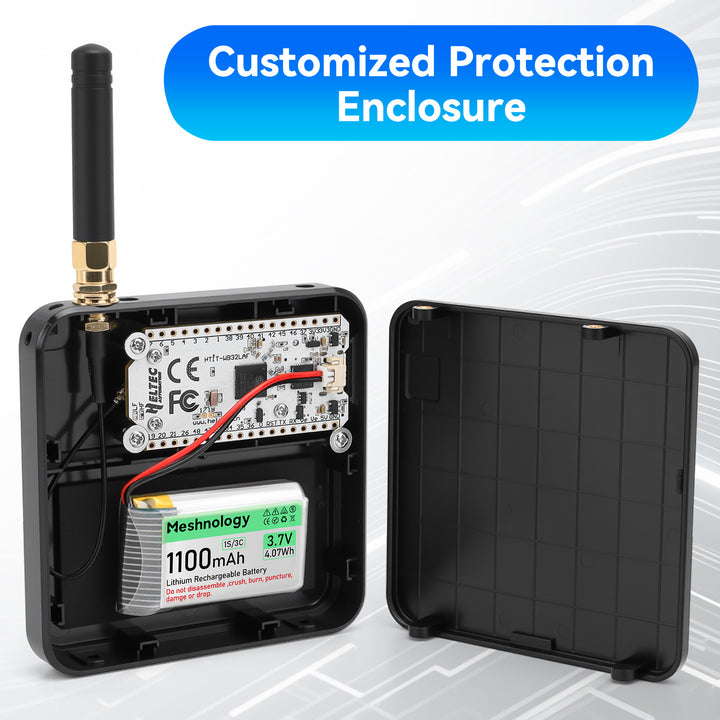

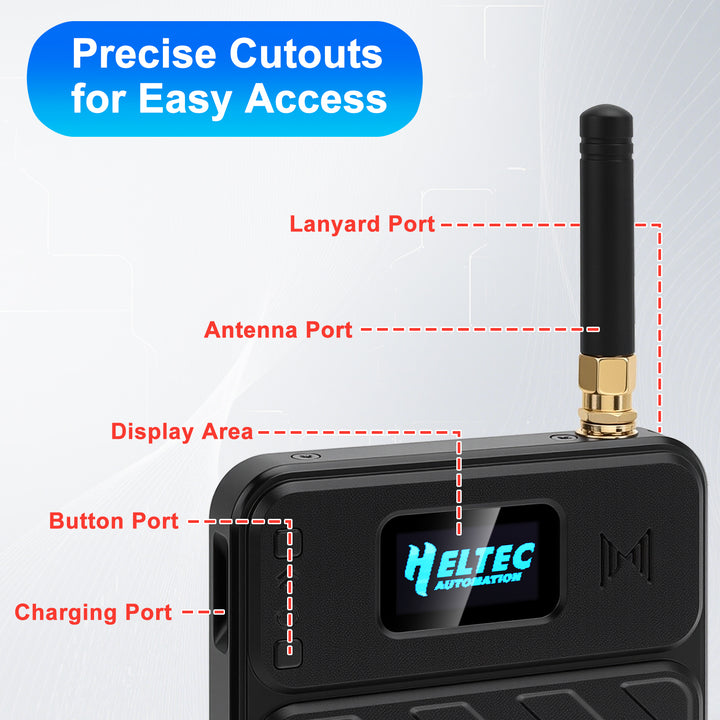

- Rugged Protective Enclosure – 3D-printed case with precision cutouts for ports and antenna
- Rich Expansion Interface – GPIO, UART, I2C, SPI, ADC, and touch support
- Developer Friendly – Fully compatible with Arduino, ESP-IDF, PlatformIO, and Meshtastic firmware
Specifications
| Item | Details |
|---|---|
| MCU | ESP32-S3FN8 (Dual-core Xtensa LX7, 240MHz) |
| LoRa Chip | SX1262 |
| USB to Serial | CP2102 |
| Frequency | 470–510MHz / 863–928MHz |
| Max TX Power | 21 ±1 dBm |
| Sensitivity | -134 dBm @ SF12 BW=125KHz |
| Wi-Fi | 802.11 b/g/n (up to 150Mbps) |
| Bluetooth | Bluetooth 5 (BLE) |
| Memory | 8MB Flash / 512KB SRAM |
| Interfaces | USB Type-C, dual battery port, IPEX antenna, GPIO headers |
| Battery | 3.7V 3000mAh Li-ion with protection board |
| Operating Temp | -20°C ~ 70°C |
| Dimensions | 50.2 × 25.5 × 10.2 mm |

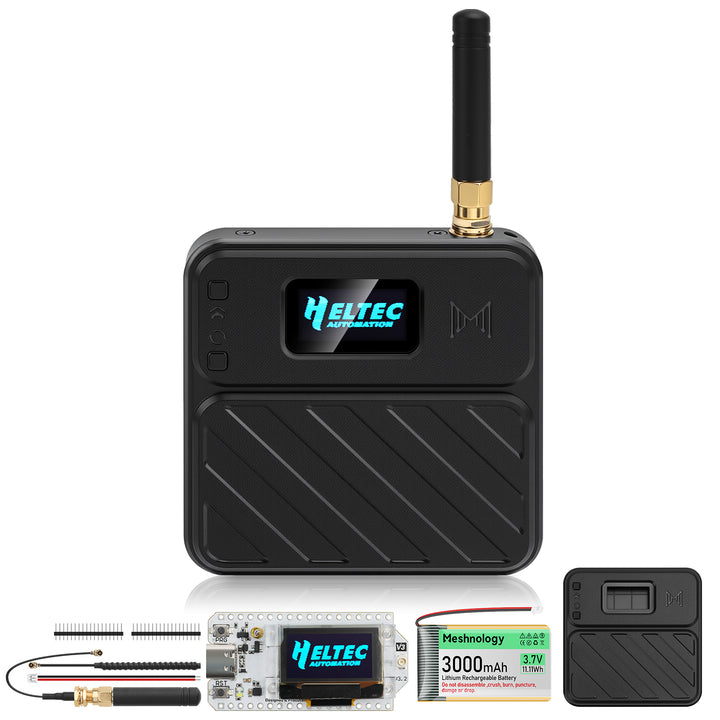

In the Box
- 1 × N32 Plus ESP32 LoRa V3 Development Node
- 1 × 3000mAh Rechargeable Battery
- 1 × 863–928MHz LoRa Antenna
- 1 × Protective 3D-Printed Enclosure
Applications
- Meshtastic decentralized mesh networking
- Long-range IoT sensor deployment
- Outdoor tracking and asset monitoring
- Emergency off-grid communication systems
- Smart agriculture and environmental sensing
- Embedded development and education projects
Kindly Note
N32 Plus is a pre-assembled plug-and-play version of the ESP32 LoRa V3 platform. Slight hardware variations may exist between production batches while maintaining full functional compatibility.
Additional Information
| Color |
Black, Green, Black+Green |
|---|---|
| Size |
1 Set (Board+Battery+Case), 2 Set (Board+Battery+Case) |
