Meshnology W10 LoRa AIoT Dev Kit – ESP32-S3 Long-Range IoT Development Board
1. Built around the ESP32-S3 dual-core MCU, intergrating LoRa long-range radio, 2.4 GHz Wi-Fi and Bluetooth 5 (LE) for robust AIoT prototyping and deployment.
2. Equipped with an audio Codec chip. Easy implementation of AI voice intercom and chat functions.
3. Powered by an Xtensa 32-bit LX7 dual-core processor. Up to 240 MHz clock speed.
4. Built-in WiFi and BLE ensures smooth operation and seamless wireless connectivity.
5. Wildly used for Smart Agriculture Monitoring, Smart City & Infrastructure, Industrial IoT & Field Monitoring.
Meshnology W10 LoRa AIoT Dev Kit – ESP32-S3 Long-Range IoT Development Board

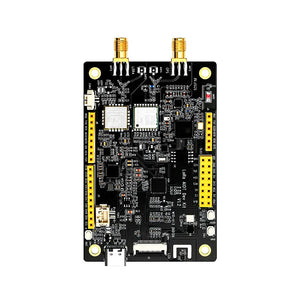

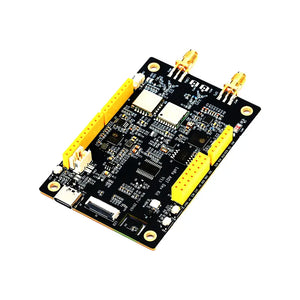

Meshnology W10 IoT Dev Board Introduction
Features a camera interface that supports OV2640 and OV5640 cameras. With this interface, the product can capture, display and upload images and videos. That makes it suitable for applications such as surveillance or content creation.
Comes with an on-board RTC (Real - Time Clock) chip. This chip provides clock, alarm clock and perpetual calendar functions. Moreover, it serves as a timestamp standard for wireless communication, ensuring accurate time - stamping of data transmitted wirelessly.
For Smart Agriculture Monitoring: Real-time collection of soil moisture, temperature, humidity and crop growth data via long-range LoRa transmission, realizing unattended precision agriculture and farmland environmental management.
For Smart City & Infrastructure Management: Used for intelligent street lamp control, parking space detection, waste bin monitoring and urban public facility management with low power consumption and long-distance communication.
For Industrial IoT & Field Monitoring: Applied to factory equipment status monitoring, pipeline detection and industrial sensor networking, ensuring stable data transmission in complex industrial environments with wide coverage.

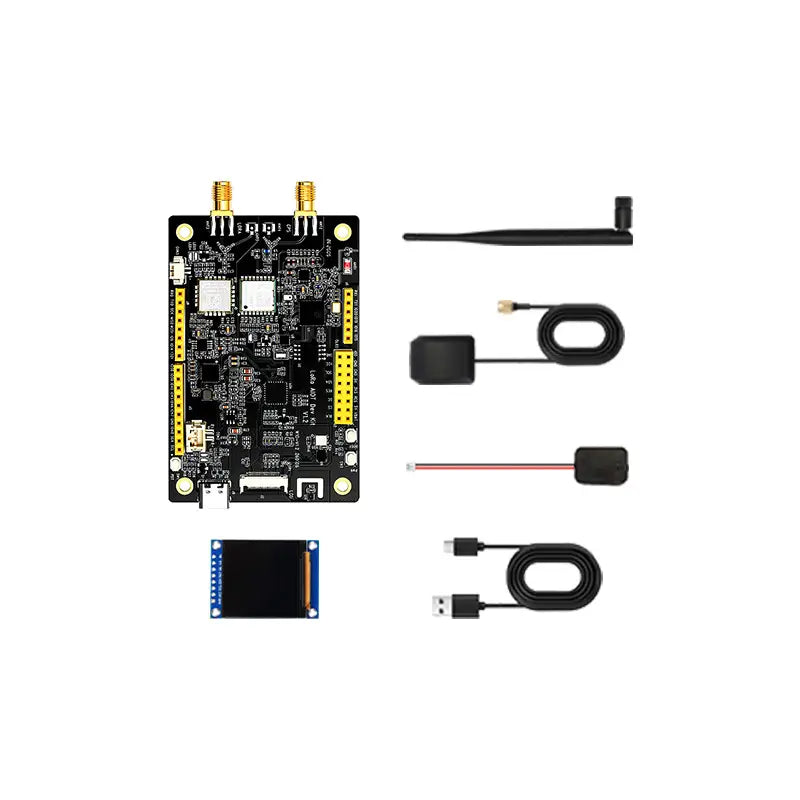

Package Includes
- 1× Meshnology W10 LoRa Dev Board
- 1× LoRa SMA antenna
- 1× GPS active SMA antenna
- 1× USB Type-C cable
- 1× IPS 1.54-inch LCD display
- 1× PH1.25 speaker module

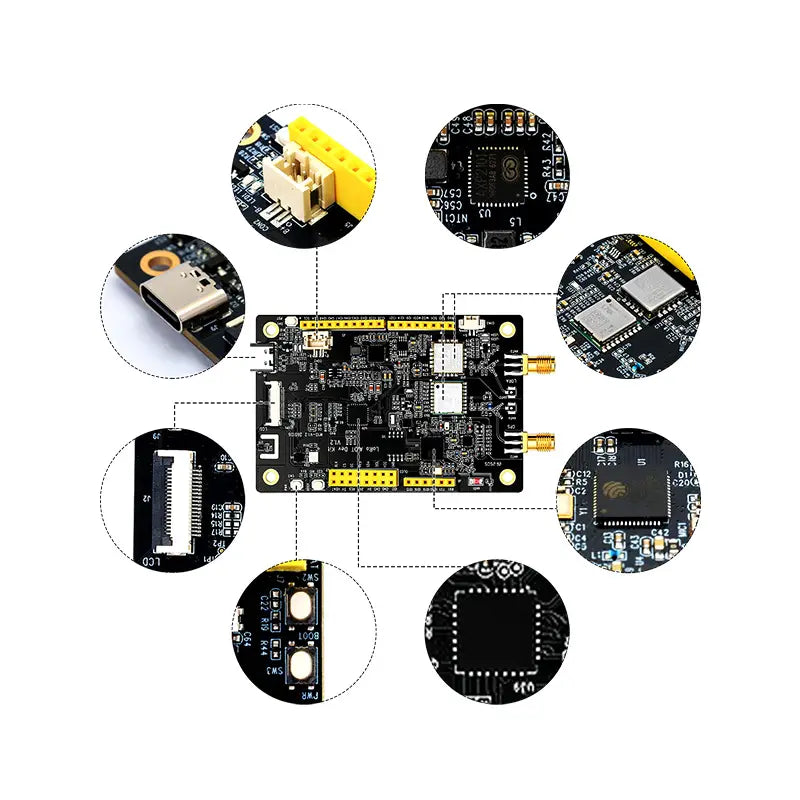

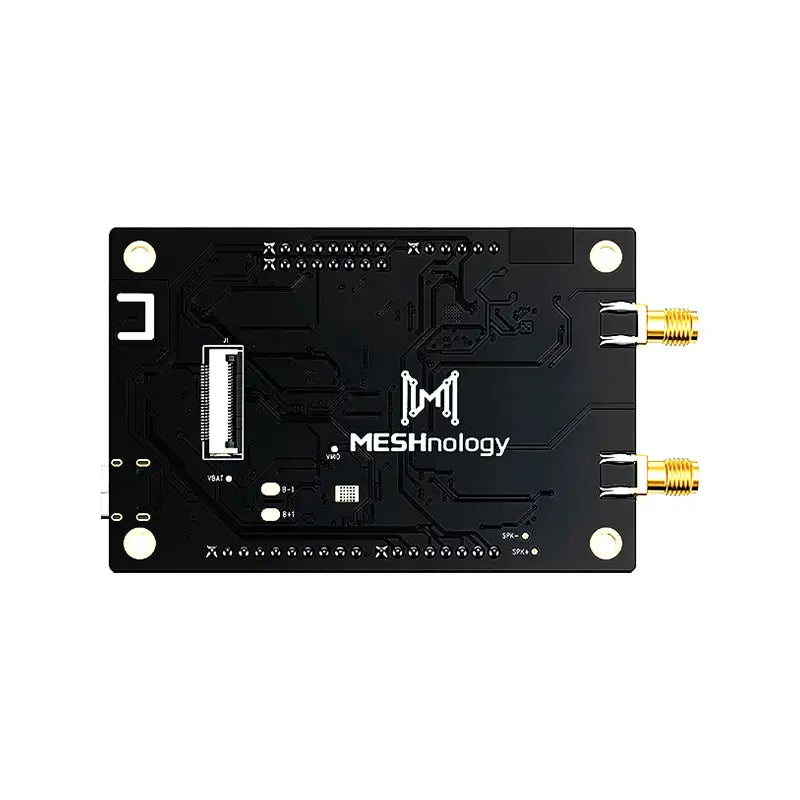

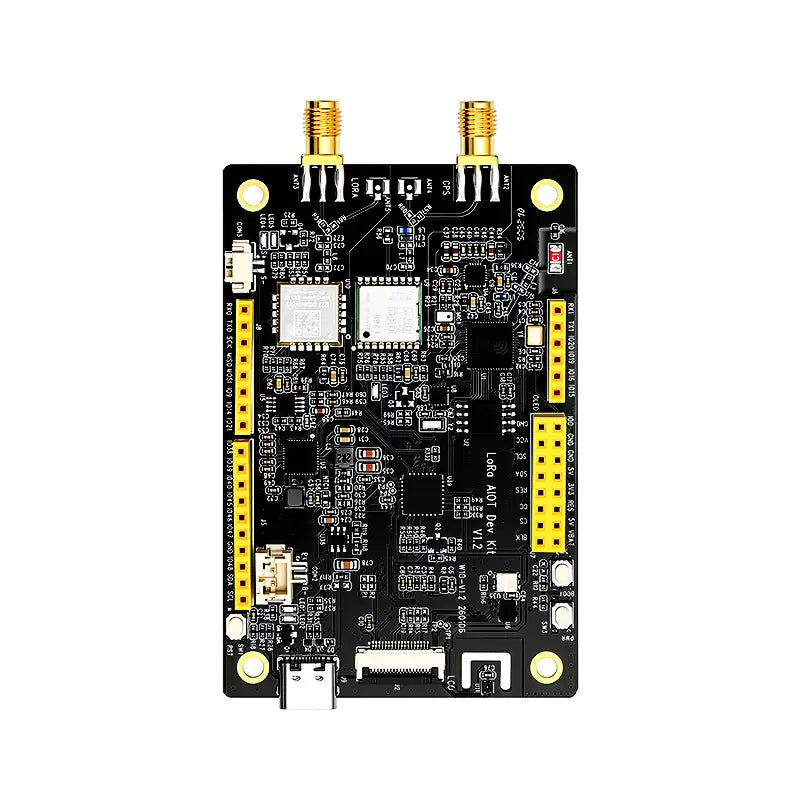

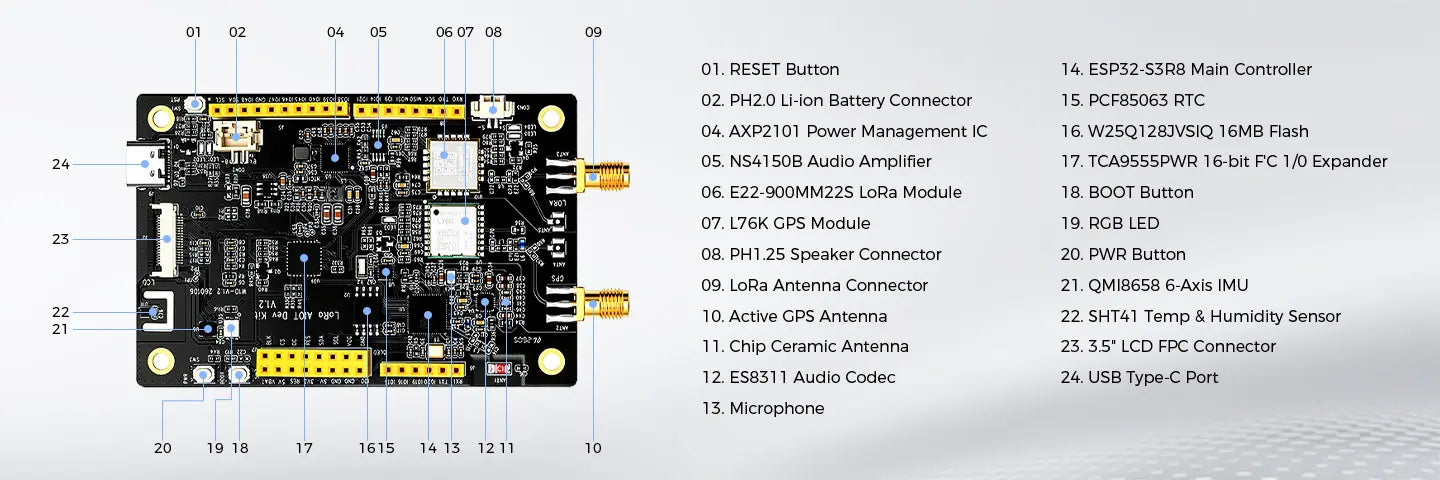

Take a Closer Look
Specification
| Item | Specification |
|---|---|
| Produc name | LoRa AIoT Dev Kit |
| Model | W10 |
| Power Supply Interface | USB TYPE-C 5V13A |
| Master Chip | ESP32-S3R8 Xtensa 32-bit LX7 dual-core microprocessor with a clock speed up to 240 MHz |
| LoRa Module | The EYTE B E22-900MM22S supports the 850-930 MHz frequency band and LoRaWAN protocol. |
| GPS Module | The Quectel L76K supports multiple satellite systems including GPS, GLONASS, BDS and QZSS |
| Audio Codec | ES8311 Low-power audio codec chip, 24 bit, sampling frequency support 8 to 96 kHz |
| Temperature and Humidity Sensor | SHT41 Temperature: 0 -75 ℃， accuracy ± 0.2 ℃; Humidity: 0-100%, accuracy ±2% |
| IMU Sensor | QMI8658 axis MEMS IMU chip, integrated 3 axis gyroscope and 3 axis accelerometer |
| RTC real time clock | PCF85063 RTC calendar chip, very low power consumption, standby current is only 0.25 μA |
| Power Management | AXP2101 Highly integrated PMIC with 4 channels of DC-DC converter and 1 channel of power meter |
| IO expansion port | Compatible with Arduino interfaces, featuring 2 UARTs, 1 ADC, 1 SPI and 1 I2C port |
| Debugging interface | 1 JTAG interface group |
| USB communication port | 1 Group USB 2.0 communication interface, mainly using USB CDC function |
| Push-button | 1 Multiple reset button, 1 BOOT button |
| Memory | External 16 MB SPI Flash |
| Number of board layers | 4 layer |
| Board materials | RF-4 (fiberglass board) |
| Single board weight | 30.8 g |
| Fixed hole spacing | 73.80 * 45.00 mm |

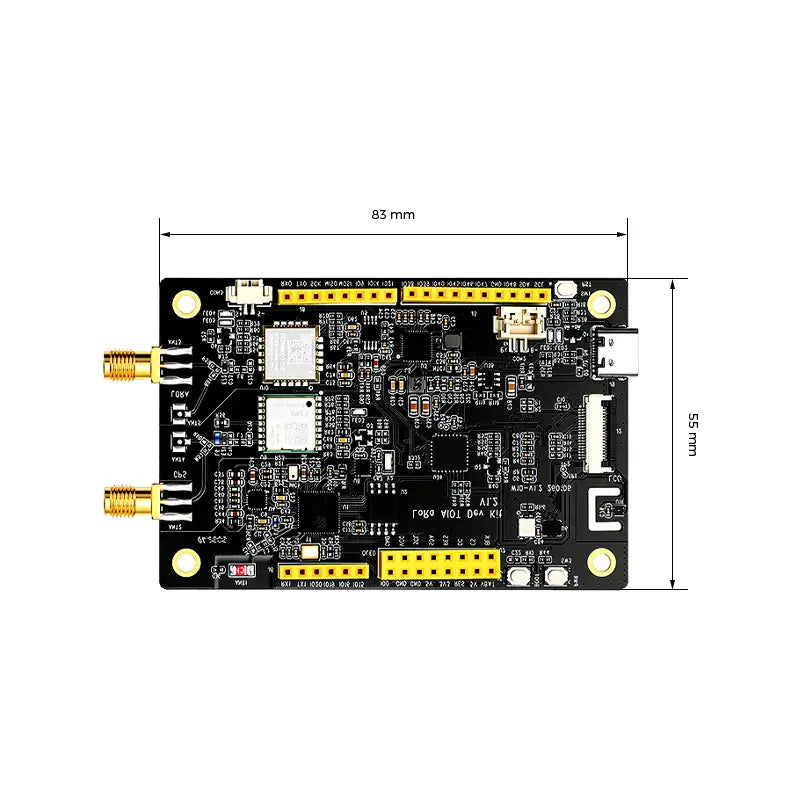

| Board size | 83.40 * 55.00 mm |
| Working Temperature | -40 ~ +85 ℃ |
| Product certification | FCC/ CE/ RoHs |
