Meshnology—N32 - ESP32 LoRa V3 SX1262 Chip Develop Meshtastic Node Kit for LoRaWAN, IoT, Arduino

Meshnology-N32 Video Show

1. Meshnology ESP32 LoRa V3 Dev Kit – SX1262 | Wi-Fi | Bluetooth 5 | Meshtastic Ready



2. 13 Miles 20km with NO WiFi? How LoRa Sent Voltage Across Crazy Distances! (Heltec WiFi LoRa 32 V3)

Turn On a Device from 13 mile 21km Away – The Ultimate Off-Grid LoRa Project with WiFi LoRa 32!

Main Features

1. ESP32-S3 LoRa Full-Featured Development Kit
   Powered by the ESP32-S3FN8 dual-core processor (240 MHz), this ESP32 LoRa kit integrates Wi-Fi, LoRa, and Bluetooth 5 Low Energy technologies, making it an ideal choice for smart city, home automation, and wireless IoT projects. Fully compatible with Arduino, it seamlessly supports Meshtastic application scenarios.
2. Exceptional Long-Range LoRa Communication
   Featuring the ESP32 SX1262 chip, delivering 21dBm transmit power, -134dBm sensitivity, and RF shielding. Equipped with an 863~928MHz antenna, it enables robust, clear long-range communication performance within LoRaWAN networks.

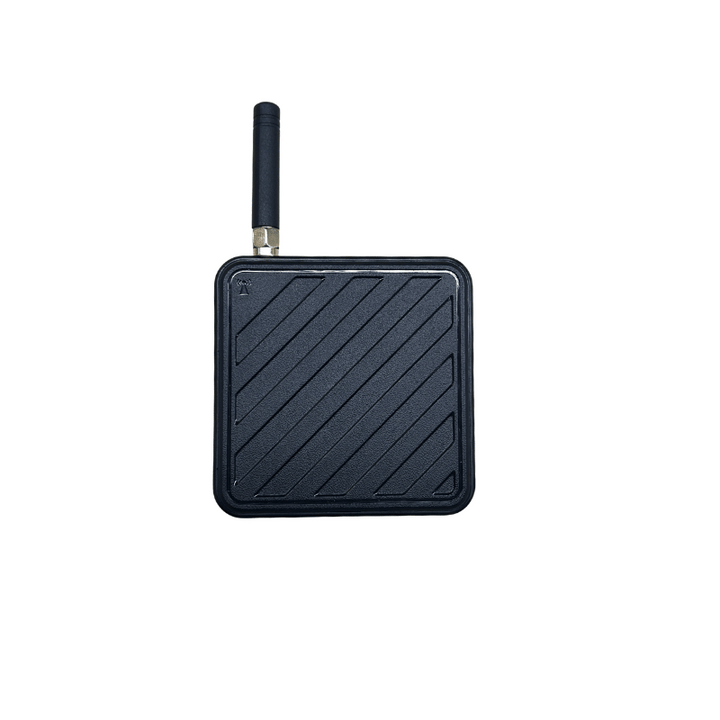

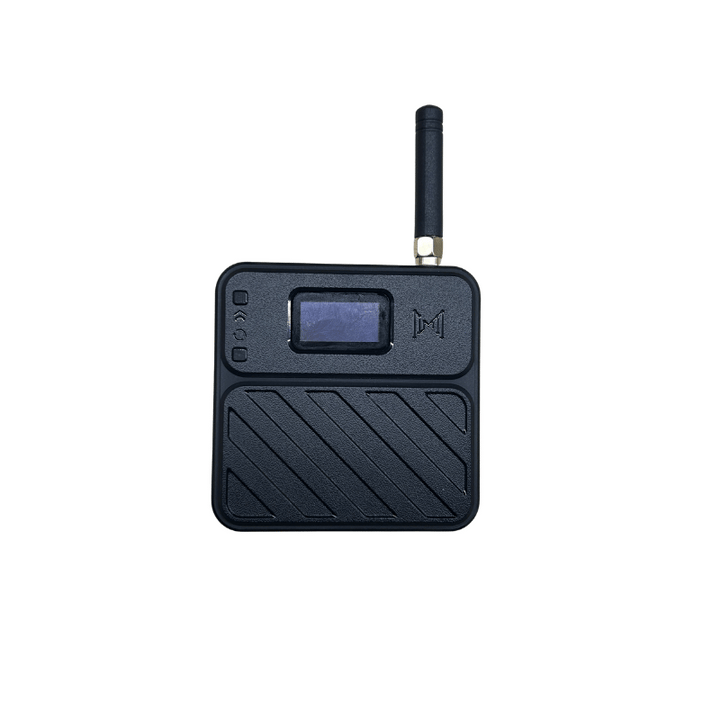

3. Protective Custom Enclosure
   Durable N32 green case securely fits the board, battery, and antennas. Precision cutouts provide access to display, Type-C charging, buttons, and external antenna port. Lightweight and rugged for field use.
4. Powerful Battery System
   Includes 3000mAh lithium battery with built-in protection against overcharge, discharge, short circuits, and overheating. Integrated USB/Battery power switching and OLED battery level display.
5. Feature-Rich & Developer Friendly
   0.96" OLED screen, CP2102 USB-to-Serial, dual battery connectors, IPEX port, and rich I/O: ADC, I2C, SPI, UART, and touch sensors for flexible expansion.

In the Box

• N32 Protect Case (Green or Red )
• 1 x ESP32 Wifi & LoRa V3 Development Node

• 1 x 3000mAh Meshnology Battery
• 1 x 863~928MHz Antenna x 1

Useful Links & Related Items

Find more files and documents on Meshnology Wiki & Code Lab Page

N32 - 3D-Printed Case For Heltec LoRa V3 Node - Green/Red

Specifications of ESP32 LoRa V3 Board

ESP32 LoRa Series Comparison

Feature	N30	N32	N33	N35
Processor	ESP32-S3FN8 (dual-core 240MHz)	ESP32-S3FN8 (dual-core 240MHz)	ESP32-S3FN8 (dual-core 240MHz)	ESP32-S3FN8 (dual-core 240MHz)
LoRa Chip	SX1262	SX1262	SX1262	SX1262
Frequency	470~510MHz, 863~928MHz	470~510MHz, 863~928MHz	470~510MHz, 863~928MHz	470~510MHz, 863~928MHz
Battery	1100mAh Li-ion	3000mAh Li-ion	3000mAh Li-ion	3000mAh Li-ion
Display	0.96" OLED (128x64, I2C, SSD1315)	0.96" OLED (128x64, I2C, SSD1315)	0.96" OLED (128x64, I2C, SSD1315)	0.96" OLED (128x64, I2C, SSD1315)
Antenna	External 863~928MHz Antenna	External 863~928MHz Antenna	External 863~928MHz Antenna	External 863~928MHz Antenna
Power Input	USB-C	USB-C	USB-C	USB-C
Compatible With	Arduino, Meshtastic, LoRaWAN	Arduino, Meshtastic, LoRaWAN	Arduino, Meshtastic, LoRaWAN	Arduino, Meshtastic, LoRaWAN
Case	Custom 3D-printed with OLED window	Protective case with OLED slot	Protective case with OLED slot	Protective case with OLED slot
Use Cases	Low-power portable LoRa device	Long-lasting battery for field deployment	IoT, smart home, long-range comms	Pocket-Sized, All-Day Performance
