Seeed Wio Tracker L1 Lite - Versatile LoRa Meshtastic GPS Development Board

Precio de oferta $36.99 USD

1. Pre-installed firmware makes it ready for immediate deployment in your mesh network projects without additional setup hassles.

2. Supports Type-C fast charging, solar input, and 3.7V Li-ion battery power—perfect for portable and off-grid scenarios.

3. Optional 1.3-inch OLED and 2.13-inch E-Ink screens for customizable power consumption and visual feedback requirements.

4. Fully Grove-compatible,with PTH headers and SWD pads for advanced hardware customization and debugging.

Product Description

Seeed Wio Tracker L1 Lite – Versatile LoRa Meshtastic GPS Development Board

The Wio Tracker L1 is a powerful, highly adaptable development board designed for LoRa-based Meshtastic networks, outdoor tracking, and IoT projects. It comes pre-flashed with Meshtastic firmware, ensuring seamless, ready-to-use setup right out of the box.

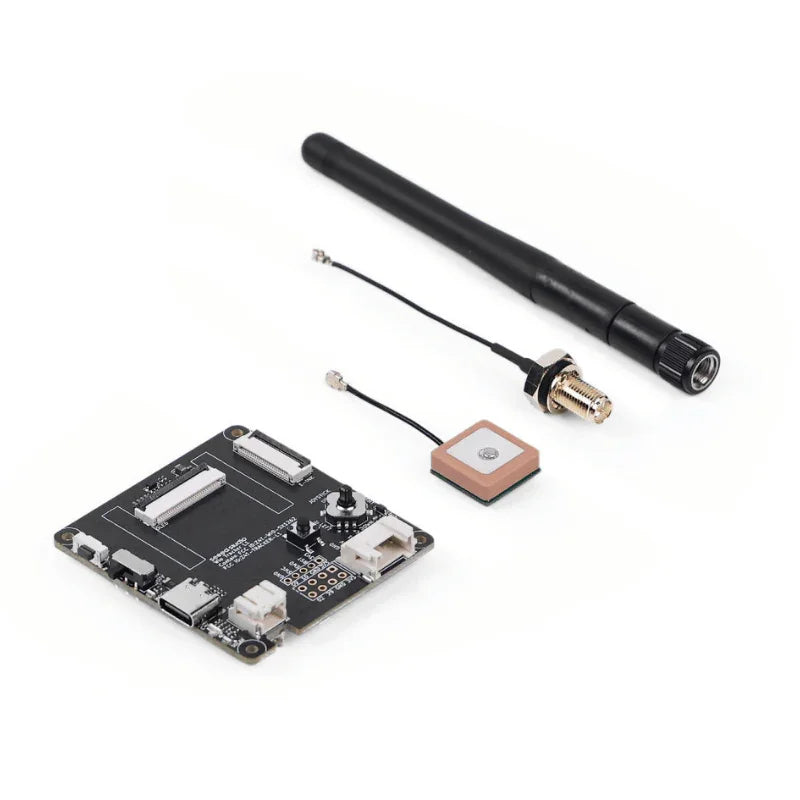

Package Includes

  • 1× Wio Tracker L1 Board
  • 1× LoRa Antenna
  • 1× GPS Antenna
  • 1× 60mm RF Cable (RP-SMA Female to IPEX)

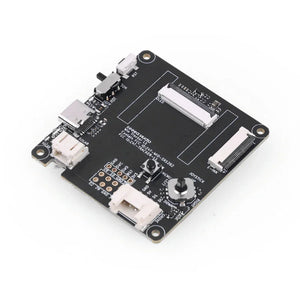

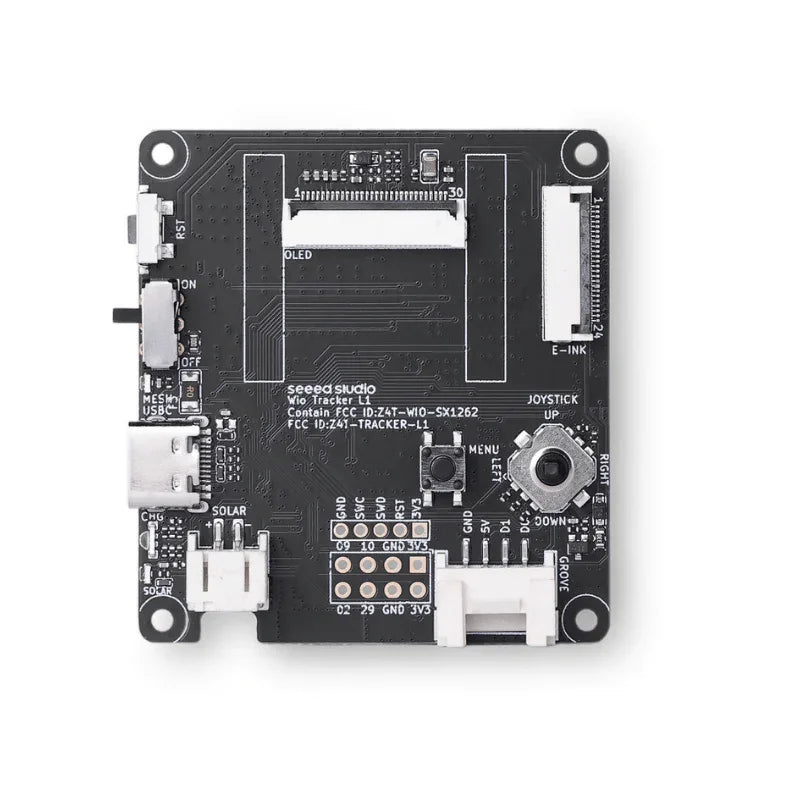

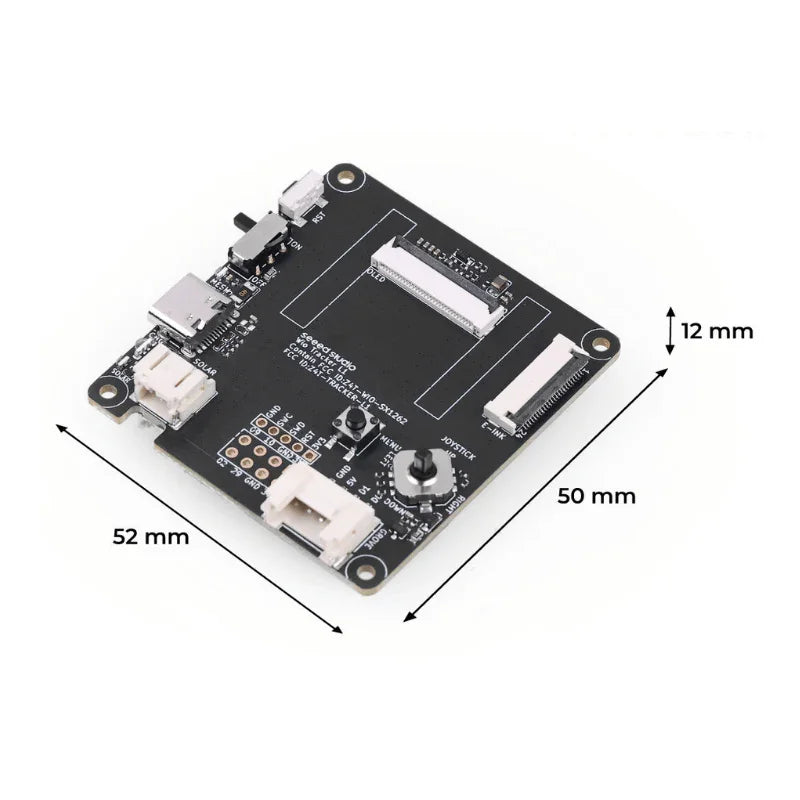

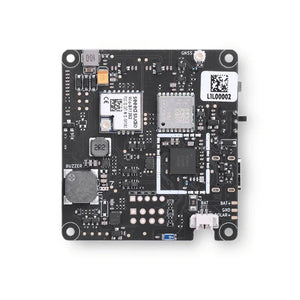

Take a Closer Look

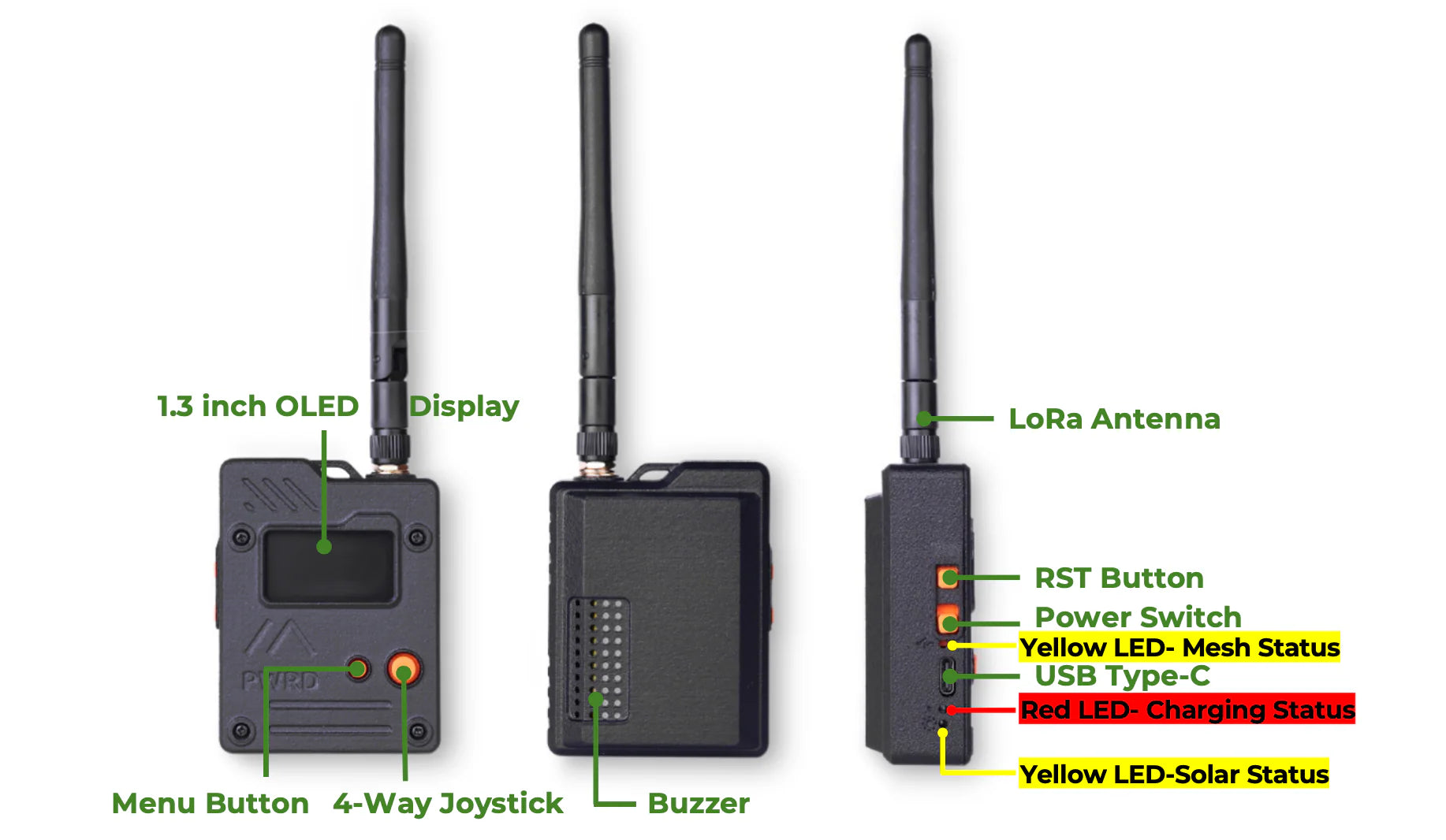

Seeed Wio Tracker L1 Lite - Versatile LoRa Meshtastic GPS Development Board 1

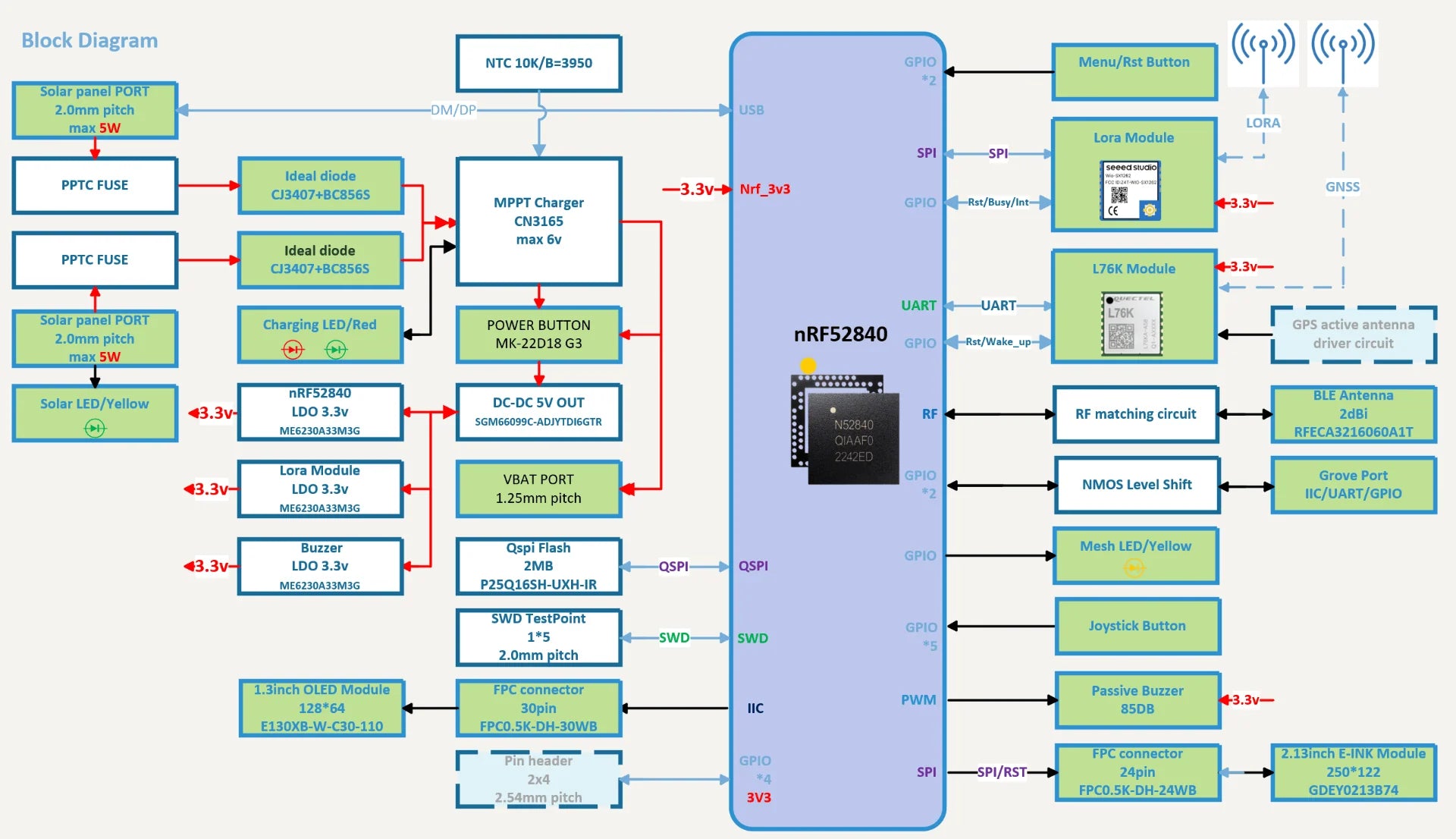

Seeed Wio Tracker L1 Lite - Versatile LoRa Meshtastic GPS Development Board 2

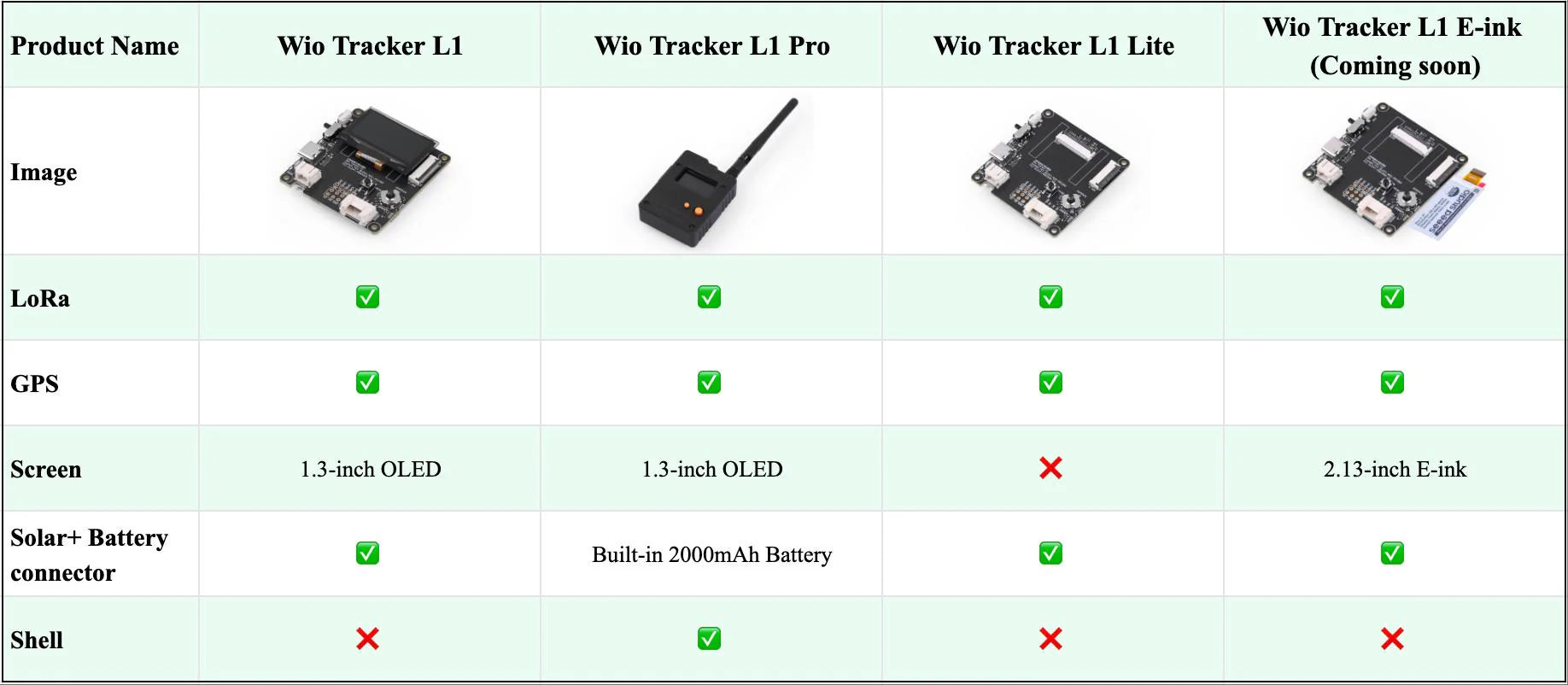

Seeed Wio Tracker L1 Lite - Versatile LoRa Meshtastic GPS Development Board 3

Specification

Item Specification
Processor
Nordic nRF52840 ARM® Cortex®-M4 with FPU, up to 64 MHz
On-Chip Memory
1 MB Flash, 256 kB RAM
Wireless
LoRa (Wio-SX1262), 862–930 MHz; Bluetooth 5.0
GPS Module
L76K (GPS, BeiDou, GLONASS, QZSS)
Display Interfaces
1.3-inch OLED (optional), 2.13-inch E-Ink (optional)
Interfaces
Grove Connector (UART/IIC/GPIO); Plated Through Hole (PTH) headers for UART/IIC/GPIO/Analog; Reserved SWD soldering pads
Power
Type-C: 5V, 1A Solar interface: 5V, 1A Battery interface: 3.7V, 1A
Certification
FCC, CE, RoHS
