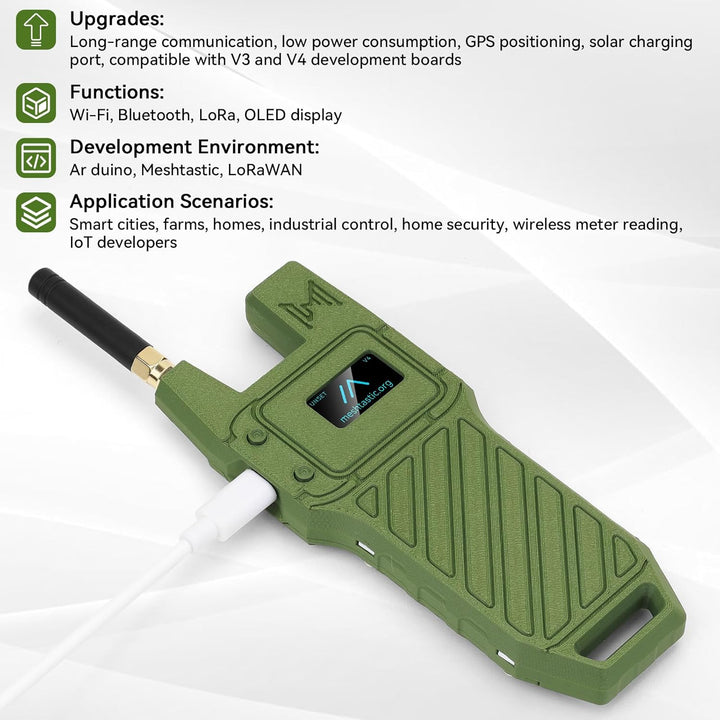

Meshnology - N39 Heltec WiFi LoRa 32 V4 – Upgraded ESP32-S3 LoRa Development Board
The Meshnology - N39 Heltec WiFi LoRa 32 V4 is the fully upgraded successor to the classic LoRa development board series that has been loved by developers and makers since 2017. Building on the powerful features of previous generations, the V4 introduces major improvements in transmit power, power management, expandability, and overall hardware design.
This board is ideal for a wide range of IoT applications, including smart cities, agricultural monitoring, smart homes, industrial automation, security systems, and wireless metering—delivering developers a more efficient and flexible development experience.

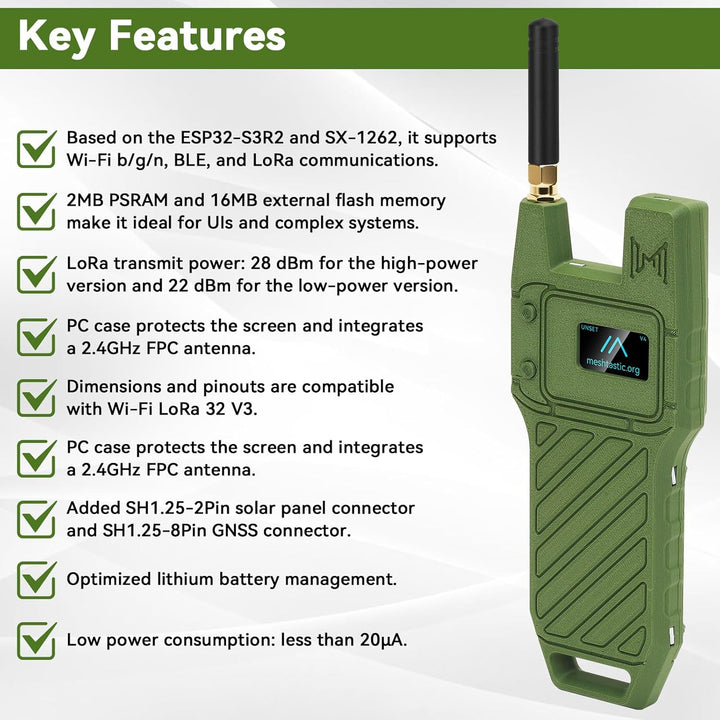

Key Features
- ESP32-S3R2 + SX1262 chipset – Supports Wi-Fi (802.11 b/g/n), Bluetooth BLE, and LoRa communication.
- Memory Upgrade – 2MB embedded PSRAM + 16MB external Flash, optimized for UI rendering and complex systems.
- Boosted LoRa Transmission Power – Up to 27±1dBm for stronger long-range communication.
- Compatible Design – Same form factor and pin layout as WiFi LoRa 32 V3, easy upgrade path.
- Integrated PC Casing & Antenna – Enclosed screen protection with built-in 2.4GHz FPC antenna for durability and signal stability.
- Solar Power Support – Added SH1.25-2P solar panel interface (supports 4.4–6V / ≤540mA).
- Optimized Battery Management – Smart charging/discharging, overcharge protection, power detection, and seamless USB/battery switching.
- Enhanced Expansion – Added SH1.25-8Pin GNSS interface for positioning modules.
- USB Type-C Interface – With built-in voltage regulation, ESD protection, short-circuit protection, and RF isolation.
- Ultra-Low Power Consumption – Less than 20μA, with independent GNSS power control.

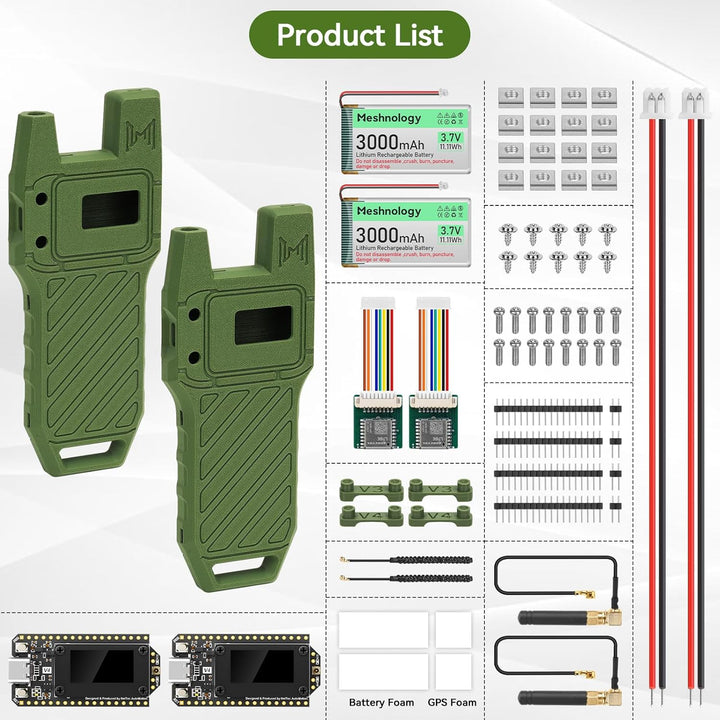

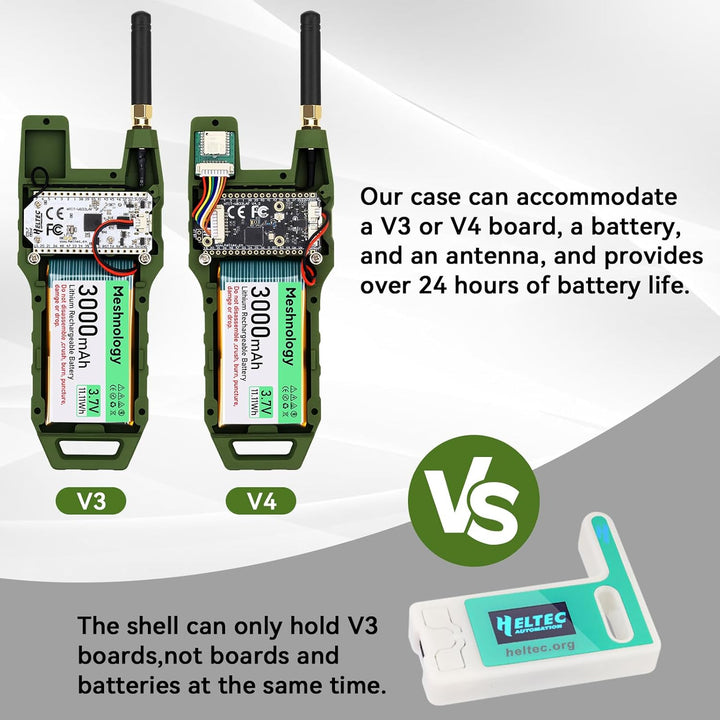

Package Includes
Heltec WiFi LoRa 32 V4 development board
3000mAh rechargeable Li-ion battery (pre-installed)

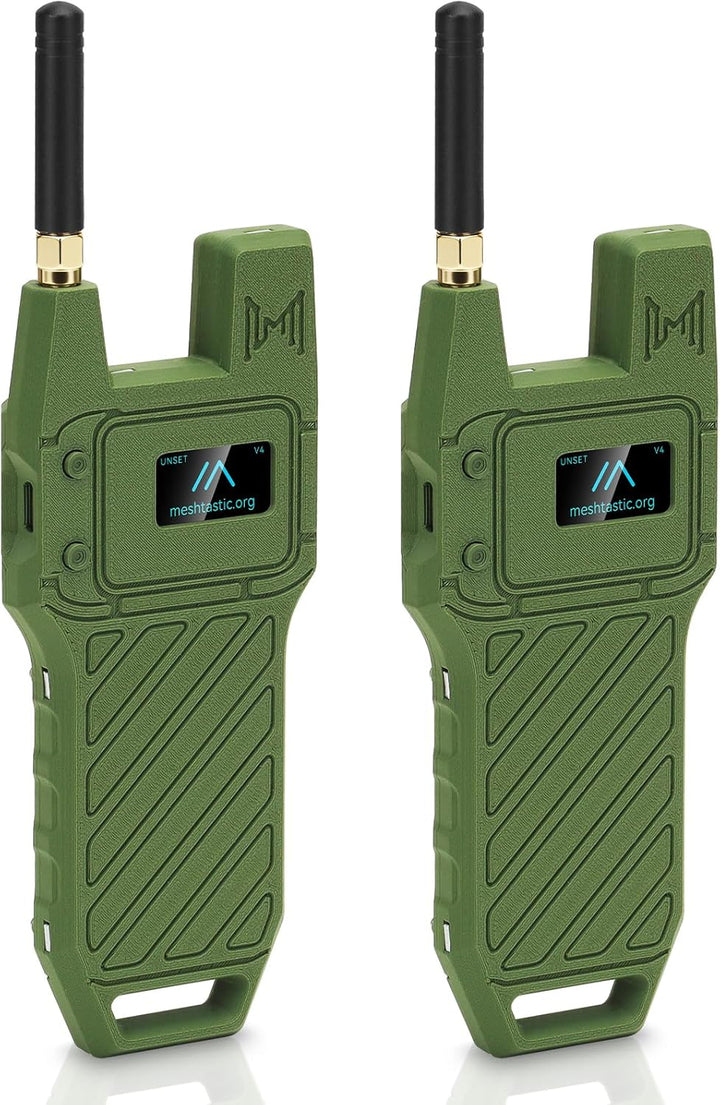

N39 protective case
863~928MHz antenna

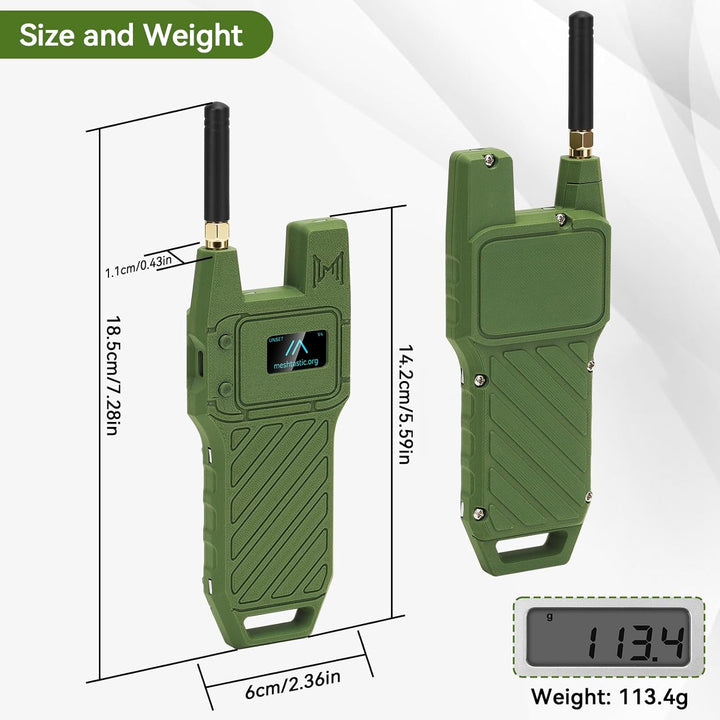

Dimensions and Weight
Board with case: approx. 85mm*45mm*35mm
Total weight: approx. 100g (including battery and case)
V3 vs V4 – Comparison Table
| Feature | ESP32 LoRa 32 V3 | WiFi LoRa 32 V4 (Upgraded) |
|---|---|---|
| Main MCU | ESP32-S3FN8, dual-core, up to 240MHz | ESP32-S3R2, dual-core, 2MB PSRAM, 16MB Flash |
| LoRa Chip | SX1262 | SX1262 |
| USB Interface | Type-C, with voltage regulation & ESD protection | Type-C, with voltage regulation, ESD, short-circuit protection, RF isolation |
| USB-to-Serial Chip | Integrated CP2102 | Removed – simpler design, lower cost |
| Display | 0.96″ 128×64 OLED | 0.96″ OLED (with PC casing protection) |
| Antenna | 2.4GHz spring antenna + IPEX (U.FL) for LoRa | Integrated FPC 2.4GHz antenna with casing |
| Battery Interface | SH1.25-2, with charge/discharge management | SH1.25-2, optimized management, solar panel input (4.4–6V / ≤540mA) |
| GNSS Support | Not available | Added SH1.25-8Pin GNSS interface |
| Wireless Connectivity | Wi-Fi b/g/n, Bluetooth 5 (LE), LoRa | Wi-Fi b/g/n, Bluetooth 5 (LE), LoRa |
| Memory | 384KB ROM, 512KB SRAM, 16KB RTC SRAM, 8MB Flash | 2MB PSRAM + 16MB Flash |
| LoRa TX Power | 21 ±1dBm | 27 ±1dBm (High Power Upgrade) |
| Power Consumption | Low-power design | Ultra-low <20μA, GNSS power independently controllable |
| Dimensions | 50.2 × 25.5 × 10.2 mm | Similar footprint (V3 pin-compatible) |
| Operating Temp. | -20 ~ 70 ℃ | -20 ~ 70 ℃ |
| Development Support | Arduino IDE | Arduino + extended compatibility |
| Notable Extras | CP2102 for programming/debug | Solar input, stronger LoRa, GNSS, casing protection |
| Color |
Green, Black |
|---|---|
| Size |
Only Case, 1 Set (Board+Battery+Case), 2 Sets (Board+Battery+Case) |
