TFS20-L LiDAR dToF Long Range Distance Sensor

1. The TFS20-L is a high-precision LiDAR sensor using advanced dToF technology to deliver accurate distance measurements.
2. Designed for compact integration and low power consumption.
3. It is ideal for drones, service robots, and other smart devices.

Feature-rich Long Range LiDAR Sensor

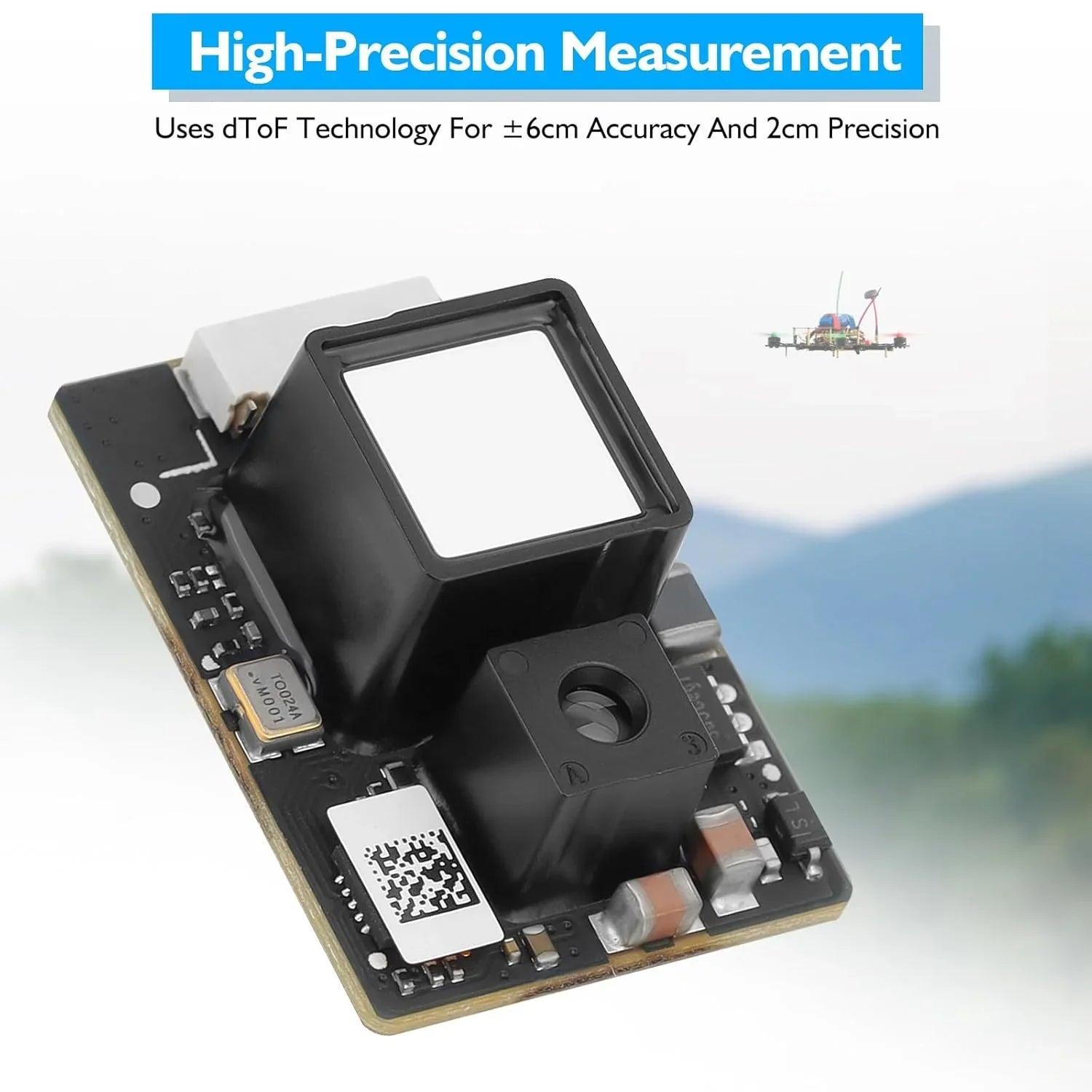

• High-Precision Measurement – Accuracy of ±6cm with a ranging resolution of 2cm.

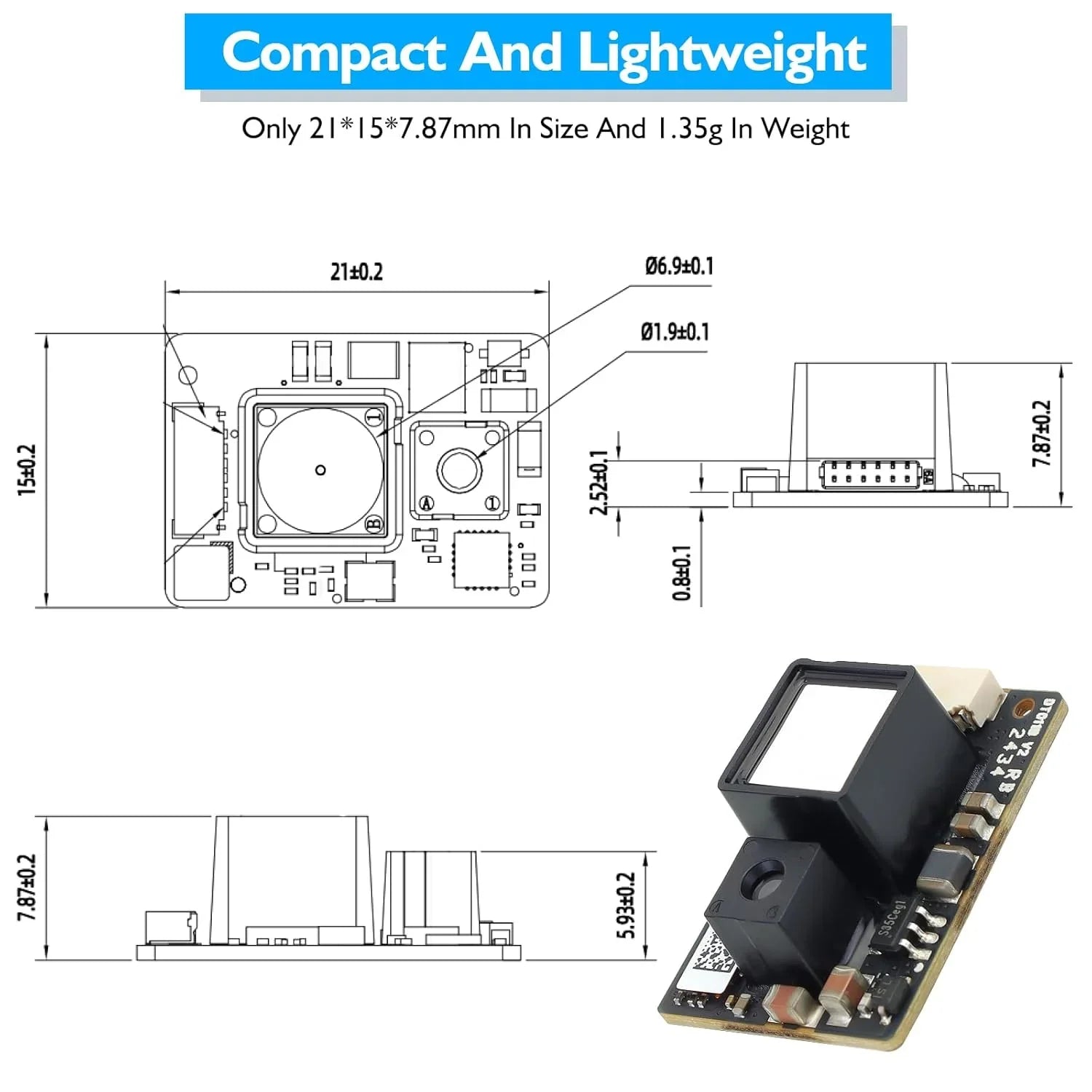

• Compact and Lightweight – Size only 21×15×7.87 mm³ and weight just 1.35g.

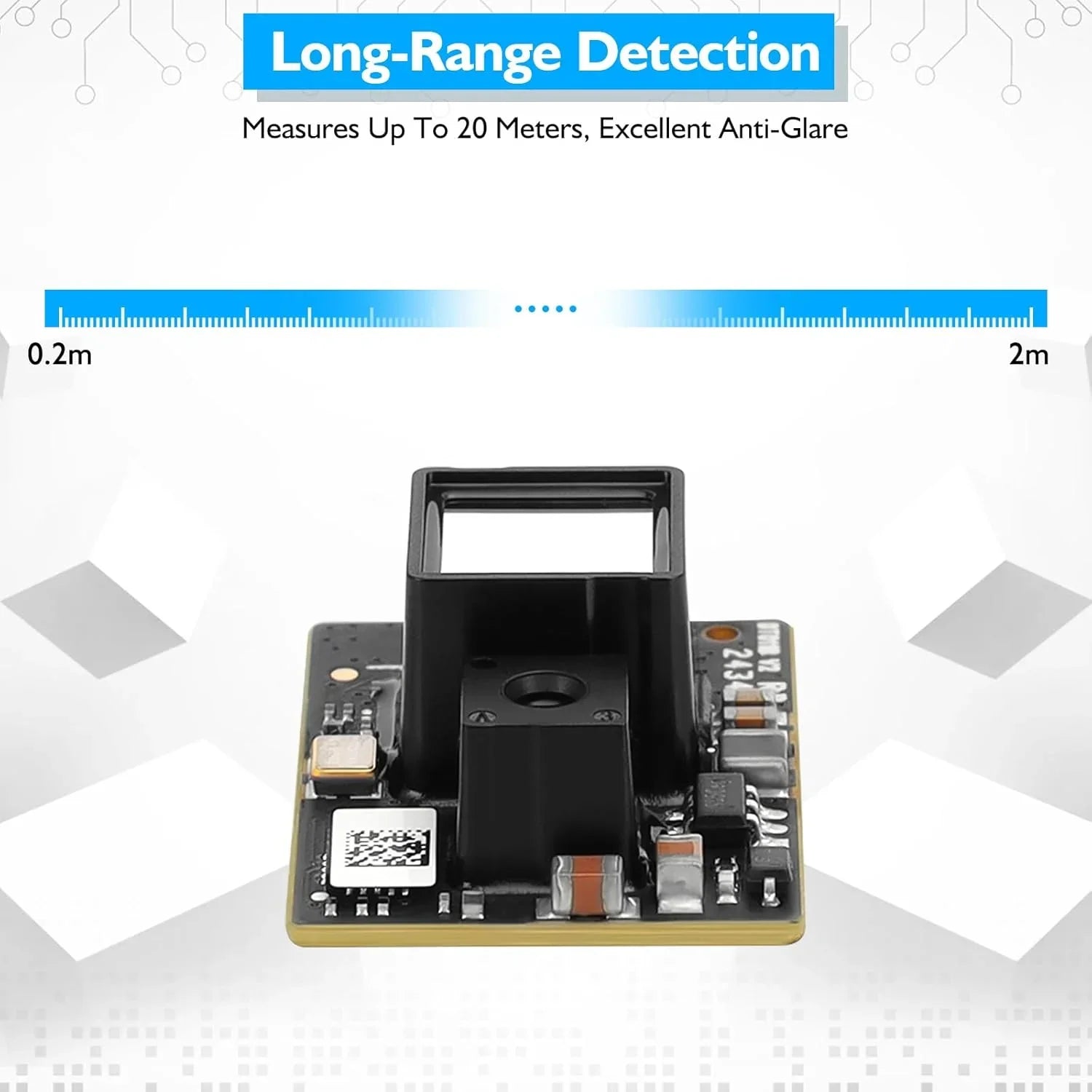

• Long-Range Detection – Measures distances up to 20 meters with strong anti-glare capability.

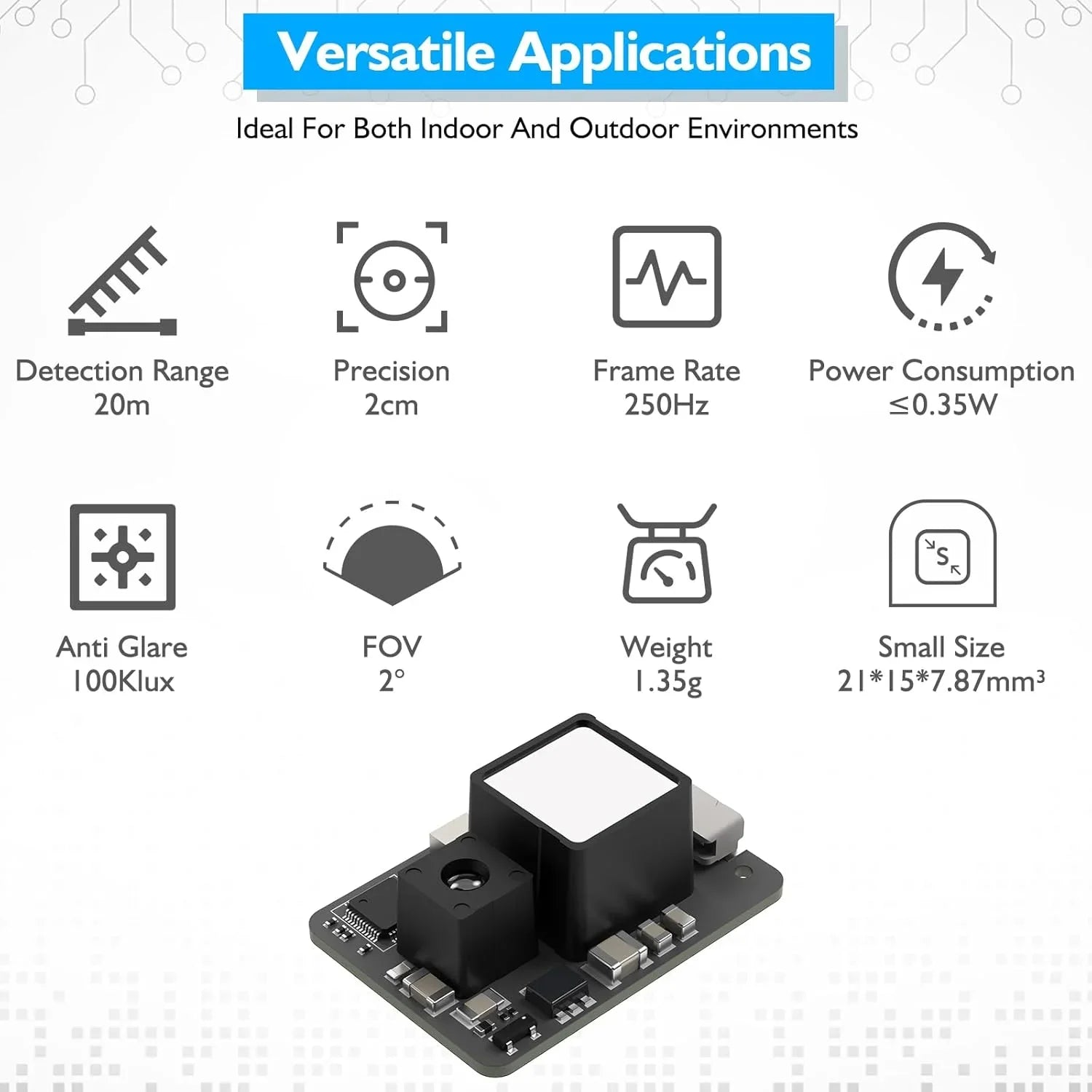

• Versatile Applications – Perfect for drone altitude hold, assisted landing, and fall prevention in robots.

• Low Power Consumption – Average power usage of ≤0.35W, suitable for long-term continuous use.

Technical Specifications

• Product: LiDAR distance sensor
• Gauge: 1.0
• Connector Type: Plug-in
• Number of Contacts: 1
• Mounting Type: PCB Mount
• Material: Plastic
• Color: Black
• Brand: MakerHawk
• Number of Poles:1
• Dimensions: 0.3"W x 0.59"H
• Number of positions: 1

Package Includes

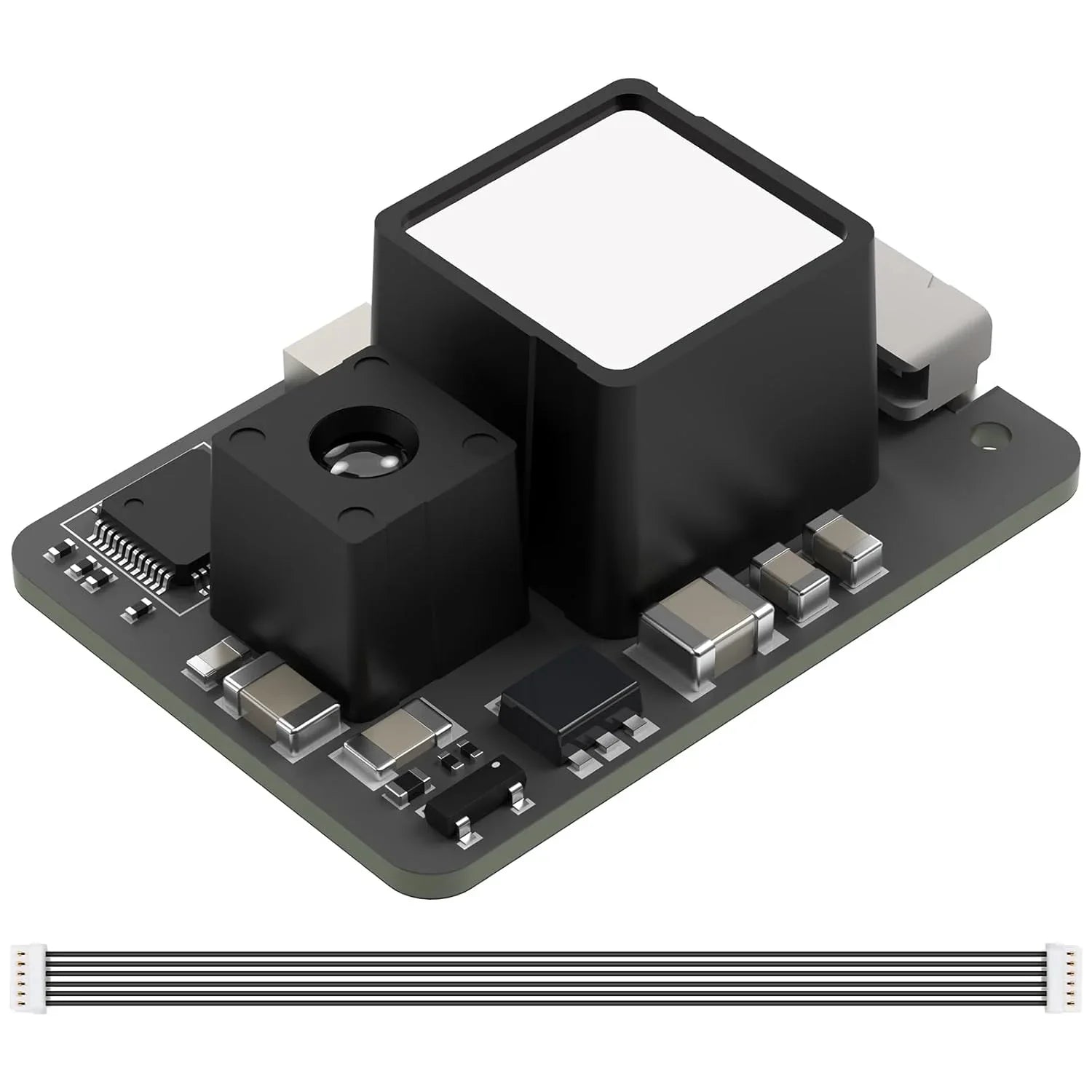

• 1 x TFS20-L LiDAR Sensor

• 1 x User Manual

Packaging

Shock-absorbing packaging in a sealed box ensures safe delivery.
