Mesh Node T1 LoRa Position Tag – Meshtastic GPS Tracker with IP65 & Long Battery Life

Compact Off-Grid LoRa Position Tracker

The Mesh Node T1 is a rugged, credit card-sized LoRa position tracker designed for reliable off-grid communication, GPS tracking, and outdoor navigation. Powered by the nRF52840 MCU and SX1262 LoRa chip, it supports both Bluetooth LE and long-range LoRa communication, making it ideal for Meshtastic networks, hiking, camping, search & rescue, and emergency preparedness.

Features

• Meshtastic & MeshCore Compatible
• Long-Range LoRa Communication
• Multi-Constellation GNSS (GPS, BeiDou, GLONASS, Galileo)
• Built-In 9-Axis IMU for Motion & Orientation Detection
• 0.96" TFT LCD Display
• 1850mAh Rechargeable Battery
• Ultra-Low 11μA Sleep Current

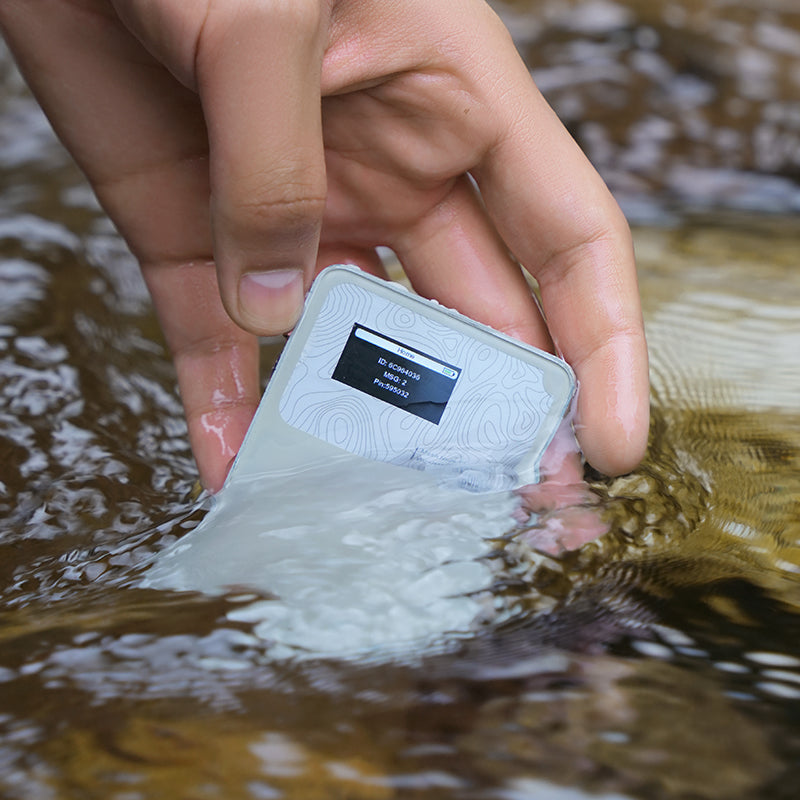

• IP65 Waterproof & Dust Resistant
• Waterproof USB-C Charging Port
• Built-In Buzzer for Audible Alerts
• Supports Custom Firmware & Arduino Development

Specifications

• MCU: nRF52840
• LoRa Chip: SX1262
• GNSS: UC6580
• Memory: 1MB Flash, 256KB SRAM
• TX Power: 21±1 dBm
• Display: 0.96" TFT LCD
• Battery: 1850mAh Li-ion
• Charging: USB-C (5V)
• Operating Temperature: -20°C to 60°C
• Protection Rating: IP65
• Size: 85 × 55 × 9.5mm
• Weight: 53g

Ideal For

• Meshtastic Networks
• Off-Grid Communication
• GPS Tracking
• Hiking & Camping
• Search & Rescue
• Outdoor Expeditions
