Mesh Pocket M1 10000mah Qi2 Heltec Wireless Meshtastic Magnetic Power Bank Charger
1. Qi2 Magnetic Wireless Charging – Fast and stable magnetic alignment for effortless phone charging.
2. Dual Smart Communication – Integrated Bluetooth + LoRa for long-range, low-power connectivity.
3. E-Ink Smart Display – Ultra-low power screen for status, messages, and system information.
4. Meshtastic Ready – Fully compatible with open-source mesh networking systems.
5. Simultaneous Charge & Discharge – Charge devices while recharging the power bank.
6. Multi-Protocol Fast Charging – Supports PD / AFC / Huawei fast charging standards.
Recommended For You
1. Dual Input Interface – Combines capacitive touchscreen with rotary encoder for flexible human-machine interaction. 2. High-Performance ESP32-S3&n…
Details...
1. This 3.7v lithium polymer battery delivers steady power for everyday builds. 2. With 3.7V 1100mAh capacity, it supports longer run time in compact projects.…
Details...
Mesh Pocket M1 10000mah Qi2 Heltec Wireless Meshtastic Magnetic Power Bank Charger
Reasons To Buy
MeshPocket is not only a Qi2 magnetic power bank but also an intelligent device equipped with Bluetooth, LoRa remote communication, and e-ink display, making it the perfect companion for open source projects such as Meshtastic and providing a good solution for outdoor exploration and emergency communication.
Merkmale
| Feature | Specification |
|---|---|
| Color Option | Yellow, Grey |
| Battery Capacity | 5000mAh / 10000mAh |
| Charging Standard | Qi2 |
| Wireless Charging | Supports 5W, 7.5W, 10W, 15W |
| USB-C Input/Output Protocols | Supports 9V-2.22A and 5V-3A |
| Industry-Standard Protocols | PD, AFC, Huawei adapter protocols |
| Charging and Discharging | Simultaneous charging and discharging |
| Wireless and Wired Discharging | Ja |
| Protection Features | Overvoltage, undervoltage, overcurrent, short circuit, battery undervoltage, NTC temperature, chip temperature, and charging timeout protection |
| Integrated Components | nRF52840 (BLE), SX1262 (LoRa) |
| Lora Band Option |
863-870 MHz, 902-928 MHz |
| Display | 2.13-inch e-ink display |
| Custom Firmware Support | Full custom firmware support |
| Compatibility | Seamlessly compatible with Meshtastic |
Dimensions
Product Instruction
How to Use
①Wireless Charging
② Charging By Cable
③Recharging For Power Bank
Detailed Specification
| Parameter | Beschreibung |
|---|---|
| Battery capacity | 5000mA/3.87V(19.35Wh), 10000mA/3.87V(38.7Wh) |
| Rated capacity | 3500mAH(USB-C, 5V-2A), 6500mAH(USB-C, 5V-2A) |
| Battery type | Lithium polymer battery |
| Charging time | About 2.5 hours |
| Working temperature | Charging: 0~45℃, Discharging: -10~45℃ |
| Storage temperature | -20℃~55℃ |
| USB-C | Input: 9V-2.22A，5V-3A, Output: 9V-2.22A，5V-3A |
| Battery charging limit voltage | 4.4V |
| Wireless Charging output | 5W, 7.5W, 10W, 15W |
| Charge+Discharge | USB-C output (10W) + Wireless charging (5W) |
| Shell material | ABS, Tempered glass |
| Dimensions | 102.00*74.10*10.80 (unit: mm) |
| Weight | 140g |
| RF chip | nRF52840(BLE), SX1262(LoRa) |
| E-Ink | 2.13 Inch |
Packing List
The default packing list without selecting any accessories is as follows:
| Artikel | Menge |
|---|---|
| Meshpocket | x1 |
| USB-C to USB-C Cable | x1 |
| Paper Manual | x1 |
| 3M Magnetic Sticker (attached to the back of the phone) | x1 |
| USB-A to Magnetic Data Cable | x1 |
FAQs
Q1: Can wireless charging and wired charging be used simultaneously?
A: Yes, when both wired charging and wireless charging are enabled simultaneously, the wired charging will be 10W and the wireless charging will be 5W.
Q2: My wireless charging is very slow.
A: Please ensure that your phone’s wireless charging protocol is Qi or Qi2.
Q3:How to turn OFF Meshtastic function?
A: Press and hold the USER button on the side of the device to disable the Meshtastic feature.
A: It currently does not have waterproof features.
Q5: Does it support charging and discharging simultaneously?
A: Yes. You can charge the MeshPocket via the USB-C port while simultaneously using its wireless charging to charge your phone.
(Current power allocation: Wired charging input 10W, wireless charging output 5W. Total output may be limited by input power capability.)
Q6: What is the correct LoRa Frequency Band for my country/region?
A: LoRa Frequency Band for common country/region:
- United States (US): 902–928 MHz
- Uinted Kingdom (UK): EU: 868 MHz
- Australia (AU): 915–928 MHz
- Japan (JP): 920–928 MHz
Detailed LoRa Frequency Band Table From Meshnology Wiki: Click Here
Precautions
- When the wireless charging output is abnormal or a foreign object (FOD) is detected, the wireless charging indicator light flashes yellow and recovers within 5S after it is released.
You can manipulate the Meshtastic interface with the buttons on the right side. - To ensure battery life, please charge it at least once every three months.
Do not expose this product to high-temperature environments or around heating equipment, such as cars, sunlight, heaters, microwave ovens, ovens and other high-temperature environments, as it may cause an explosion. - It is strictly prohibited to use unapproved or incompatible power adapters, charging cables, etc., which may cause fire, explosion or other dangers. Please use original or certified data cables.
- Do not leave this product in an unventilated space for a long time, such as a handbag, etc. Confined spaces can easily cause fire and other dangers.
- This product contains lithium-ion batteries. It is strictly prohibited to disassemble the product casing without permission to avoid damage to the battery core or fire hazard.
- Do not drop, squeeze, puncture, short-circuit this product, or put it into water or fire to avoid fire hazards. Please dispose of this product in accordance with local regulations. Do not dispose of this product as domestic waste. Improper disposal may cause explode.
Please do not use this product during thunderstorms to avoid product failure or click hazards. - Do not come into contact with liquids and avoid dropping the product. If the product has battery swelling, leakage, deformation, etc., please stop using it.
Please keep this product out of reach of children.

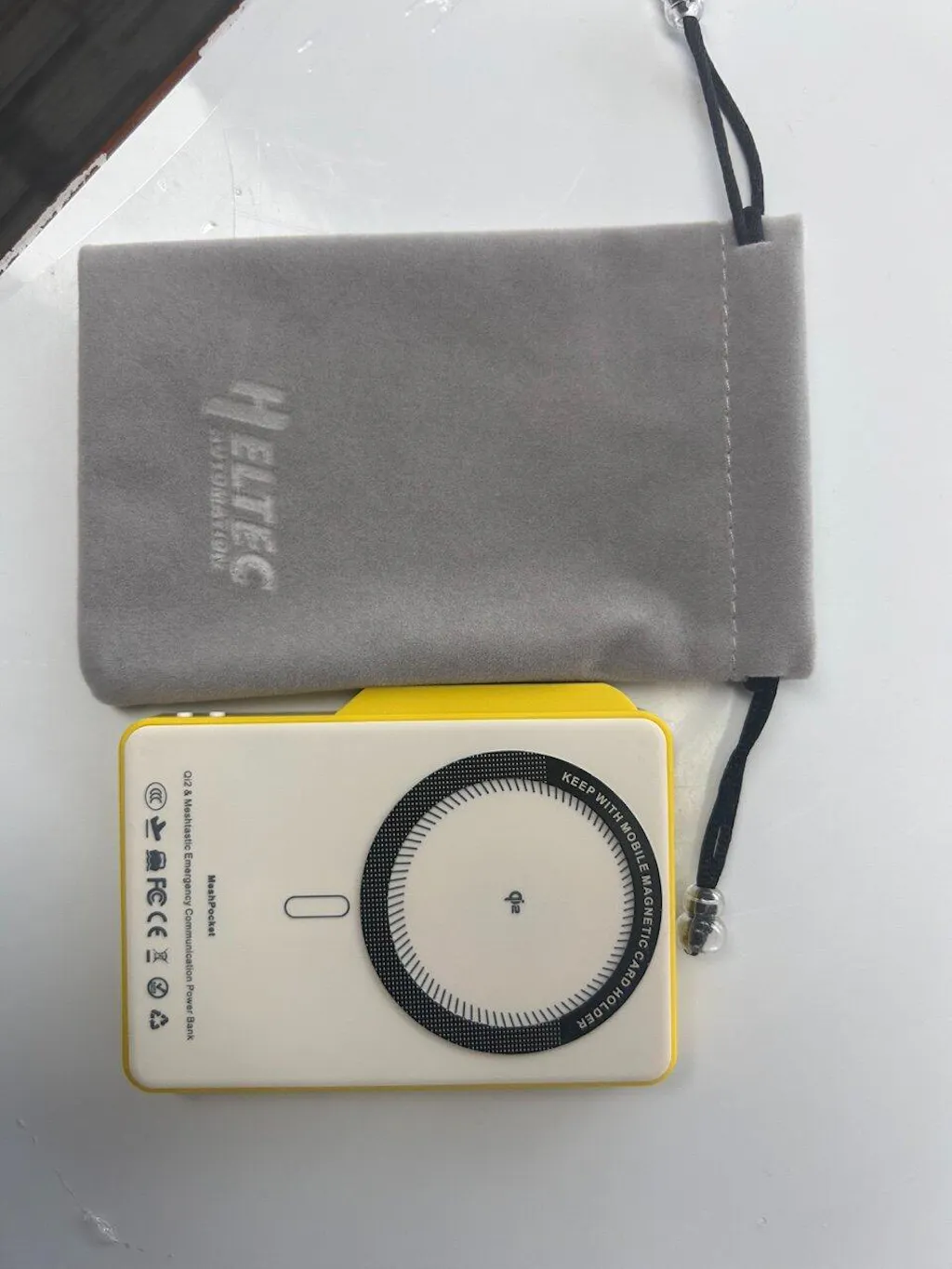

Take a Closer Look
Specification
| Item | Specification |
|---|---|
| Battery Capacity | 5000mAh / 10000mAh (Li-Polymer) |
| Wireless Charging | Qi2 Magnetic, 5W / 7.5W / 10W / 15W |
| USB-C Output | 5V-3A / 9V-2.22A (PD supported) |
| Connectivity | Bluetooth 5.0 + LoRa (SX1262) |
| Frequency Bands | 863–870 MHz / 902–928 MHz |
| Display | 2.13-inch E-Ink Screen |
| Simutaneous Use | Supports wireless + wired charging at the same time |
| Protection System | Overvoltage, overcurrent, short circuit, temperature control, battery safety protection |
| Dimensions | 102 × 74.1 × 10.8 mm |
| Weight | Approx. 140g |
