Meshnology N35-ESP32 Heltec LoRa V3/WiFi 32 LoRa V4 Complete Meshtastic Device

Sale price $10.99 USD

1. ESP32-S3 Dual-Core Processor – Up to 240MHz performance for IoT and mesh networking

2. SX1262 LoRa Module – Long-range, low-power wireless communication

3. WiFi + Bluetooth + LoRa Integration – Multi-protocol connectivity in one device

4. High-Capacity Battery Support – 3000mAh Li-ion for extended field use

5. 0.96" OLED Display – Real-time system status and debugging

6. USB Type-C Interface – Fast programming and stable power input

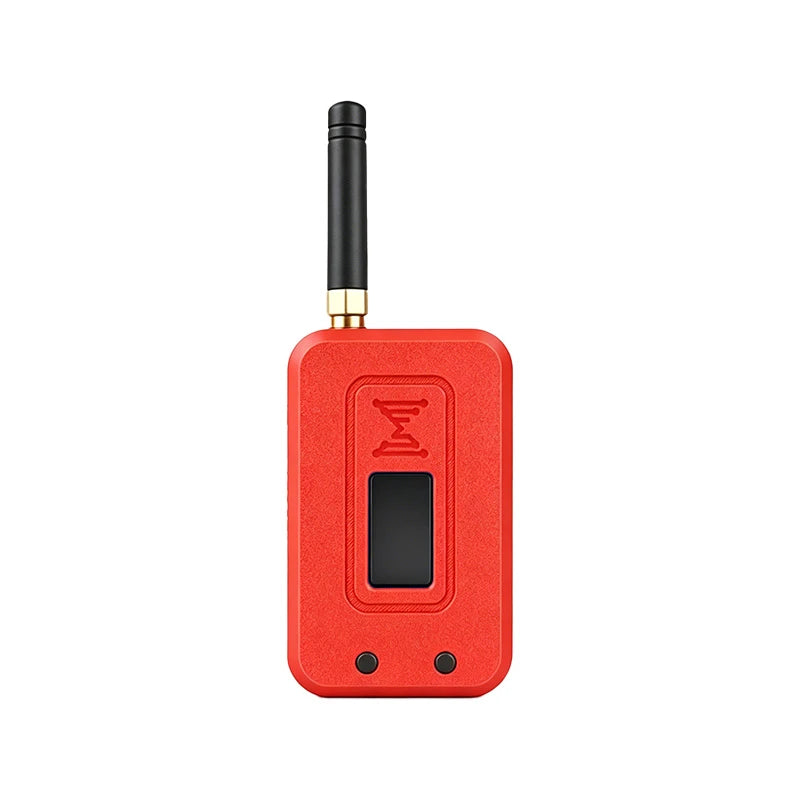

Color: Red
Size: Only Case

Product Description

Meshnology N35 ESP32 LoRa Meshtastic Device

Overview

1. The Meshnology N35 is an advanced ESP32-S3 LoRa development board designed for Meshtastic, IoT, and long-range wireless communication applications.
2. It integrates WiFi, Bluetooth 5 LE, and SX1262 LoRa technology into a compact, high-performance platform.
3. With enhanced processing power, expanded memory options, and improved power management, the N35 is built for developers, field engineers, and off-grid communication systems.


Applications

  • Meshtastic off-grid communication networks
  • IoT sensor and smart city systems
  • Outdoor exploration & emergency communication
  • Smart agriculture and environmental monitoring
  • GNSS + LoRa tracking systems
  • Embedded systems education and prototyping

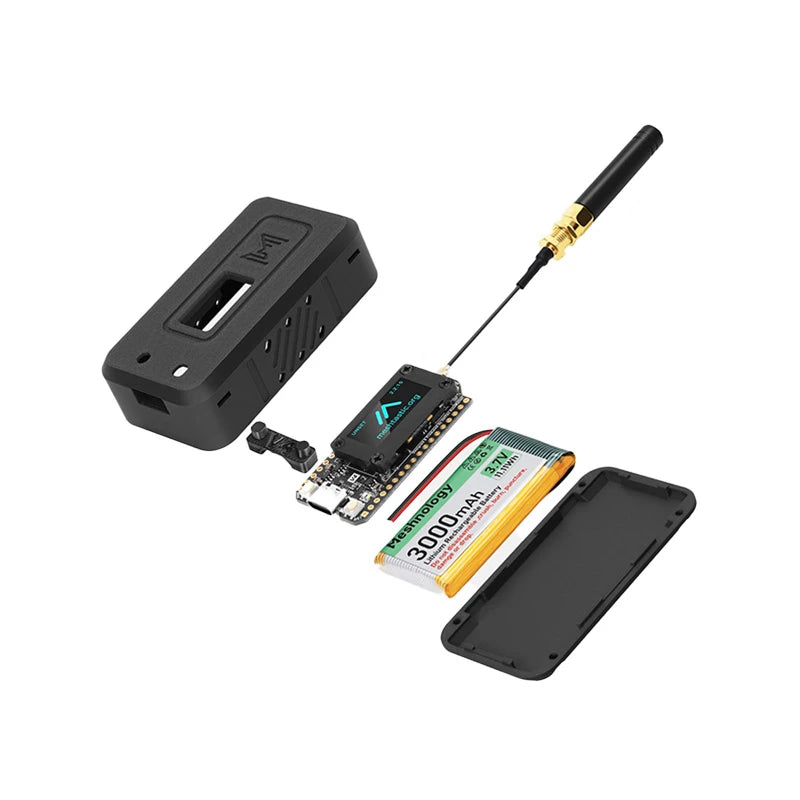

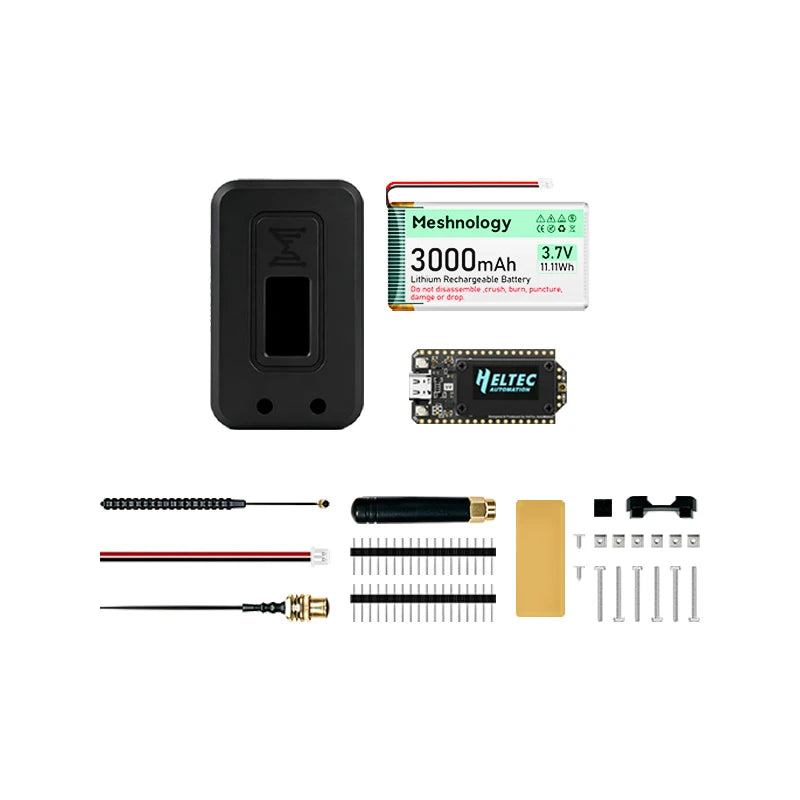

Package Includes

  • 1 × N35 ESP32 LoRa Development Board
  • 1 × 3000mAh Li-ion Battery
  • 1 × Protective Case
  • 1 × 863–928MHz LoRa Antenna

Resources

Related Products

Take a Closer Look

Meshnology N35-ESP32 Heltec LoRa V3/WiFi 32 LoRa V4 Complete Meshtastic Device 1

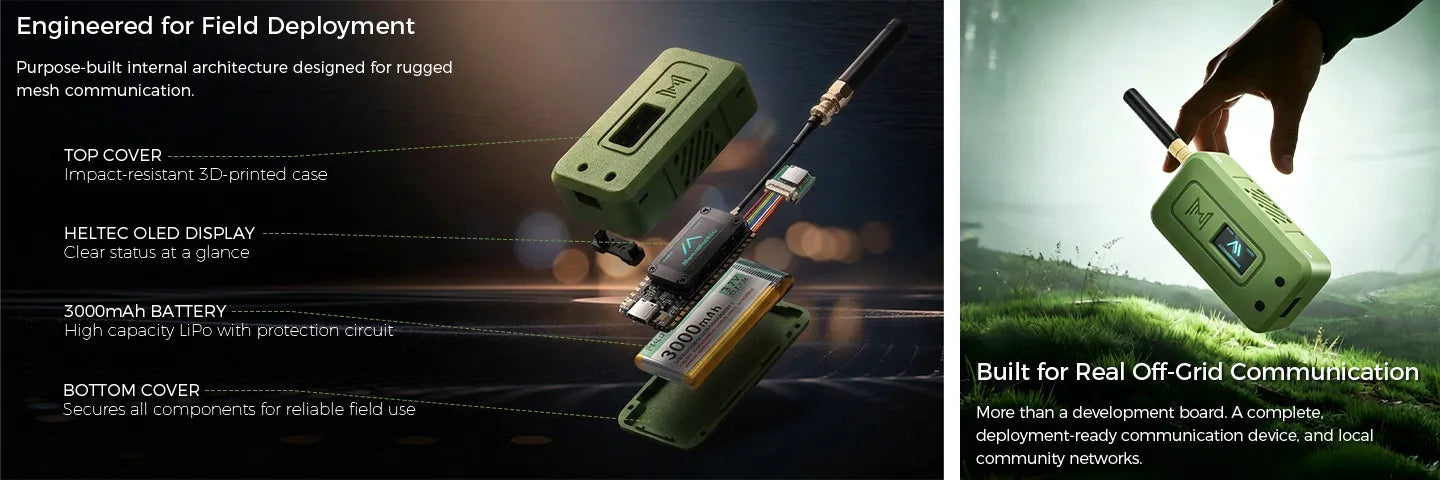

Meshnology N35-ESP32 Heltec LoRa V3/WiFi 32 LoRa V4 Complete Meshtastic Device 2

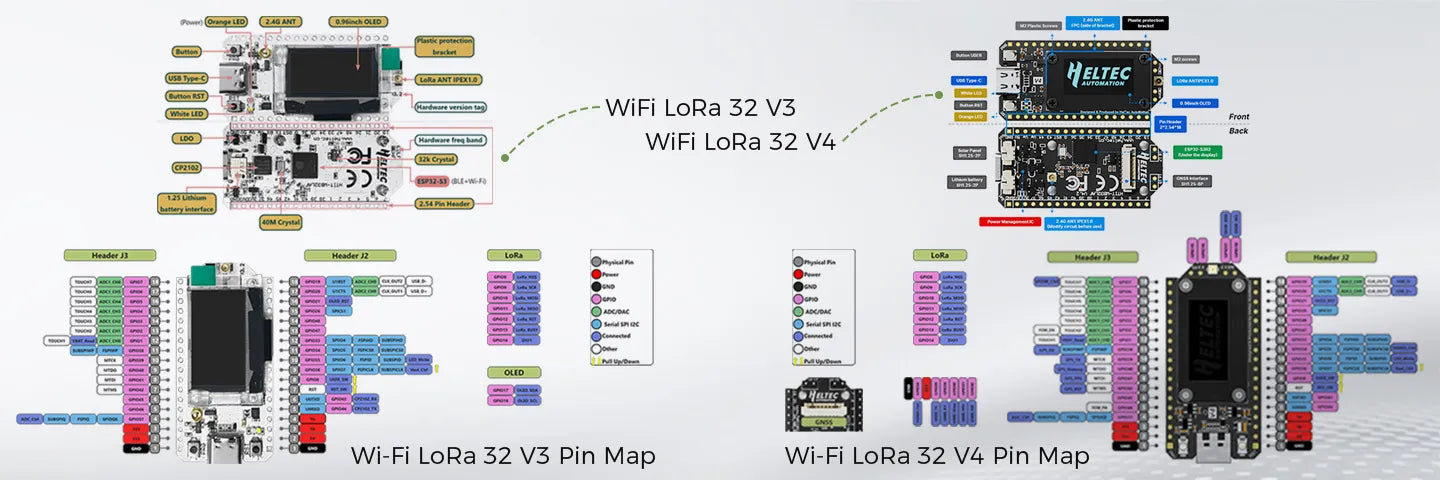

Meshnology N35-ESP32 Heltec LoRa V3/WiFi 32 LoRa V4 Complete Meshtastic Device 3

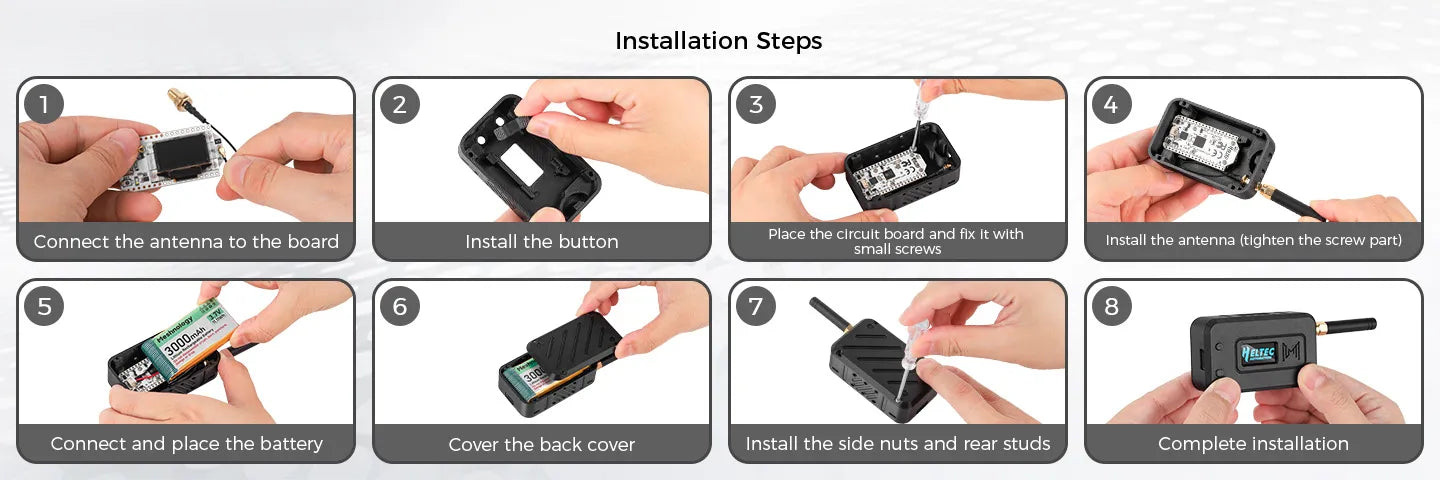

Meshnology N35-ESP32 Heltec LoRa V3/WiFi 32 LoRa V4 Complete Meshtastic Device 4

Specification

Item Specification
MCU
ESP32-S3FN8 / ESP32-S3R2 (dual-core LX7)
LoRa Chip
SX1262 high-performance transceiver
Wireless
WiFi 802.11 b/g/n + Bluetooth 5 LE + LoRa
Memory
Up to 16MB Flash + 2MB PSRAM (variant dependent)
Frequency
470–510MHz / 863–928MHz
TX Power
Up to 27dBm (optimized version)
Display
0.96" OLED 128×64 (I2C)
Battery
3000mAh Li-ion rechargeable battery
Charging
USB Type-C with protection circuit
Interfaces
UART, I2C, SPI, ADC, GPIO, GNSS expansion support
Protection
Overcharge, short circuit, ESD protection
