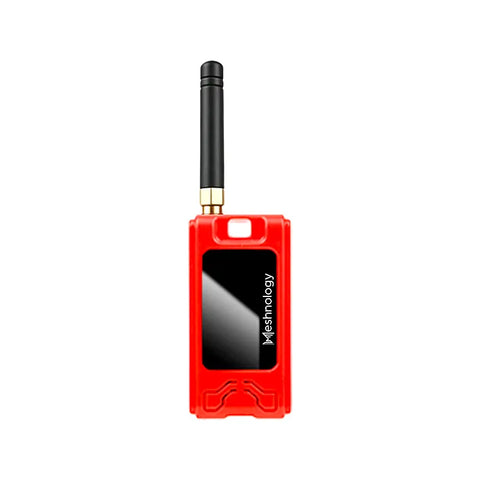

Meshnology N30 ESP32 Meshtastic Text Radio
Overview
The Meshnology N30 is a pre-built Meshtastic text radio based on the Heltec ESP32 LoRa V3 platform, designed for long-range off-grid communication and IoT applications. It integrates a dual-core ESP32-S3 processor, SX1262 LoRa module, WiFi, and Bluetooth into a compact development-ready device.
Built for makers, engineers, and field deployments, the N30 provides stable mesh networking, low-power operation, and easy integration with the Meshtastic ecosystem.
Core Highlights
- Dual-Core ESP32-S3 Processor – Up to 240MHz performance for IoT and mesh networking applications.
- Long-Range LoRa Communication – SX1262 module for stable, kilometer-level connectivity.
- WiFi + Bluetooth + LoRa Integration – Multi-protocol wireless communication in one device.
- Portable Battery System – 1100mAh Li-ion battery with smart power management.
- OLED Display – 0.96" 128×64 screen for real-time status and debugging.
- Developer Friendly – Supports Arduino, PlatformIO, and Meshtastic firmware.
- Optimized RF Design – Stable antenna system with IPEX LoRa interface support.
Features & Video Showcase
- Processor: ESP32-S3FN8 dual-core 240MHz
- LoRa Chip: SX1262 long-range transceiver
- Wireless: WiFi 802.11 b/g/n + Bluetooth 5 BLE + LoRa
- Memory: 384KB ROM + 512KB SRAM + 8MB Flash
- Battery: 1100mAh Li-ion with protection circuit
- Power Management: Auto switch between USB and battery
- Interface: USB Type-C + SH1.25 battery connector + IPEX antenna
- Display: 0.96" OLED 128×64
Applications
- Off-grid mesh communication networks
- Outdoor adventure & hiking communication
- IoT sensor networks
- Smart home & smart agriculture systems
- Emergency & rescue communication systems
- Educational embedded systems projects
A reliable long-range text radio platform designed for Meshtastic and decentralized communication networks.

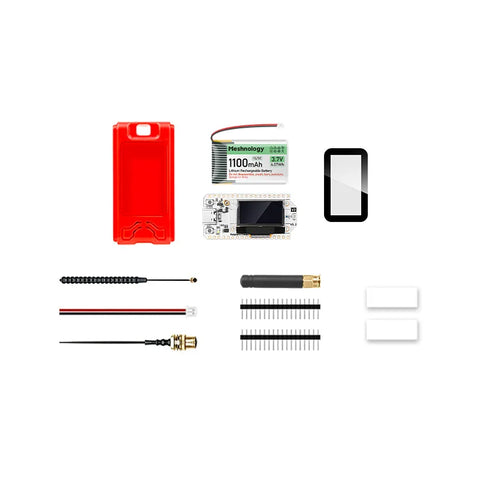

Package Includes
- 1 × ESP32 LoRa V3 Development Board
- 1 × 1100mAh Li-ion Battery (with protection board)
- 1 × Protective Case (N30 enclosure)
- 1 × 863–928MHz LoRa Antenna
Docs & Resources
Related Products
Kindly Note
This N30 device is based on the Heltec ESP32 LoRa V3 architecture and is fully compatible with the Meshtastic ecosystem. It is optimized for portable off-grid communication and IoT development.
