Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino

Sale price $11.99 USD

1. All-in-One LoRa Development Kit – Pre-assembled ESP32 + LoRa + battery + enclosure solution

2. Long-Range SX1262 Communication – Stable performance with up to 21 dBm TX power and high sensitivity (-134 dBm)

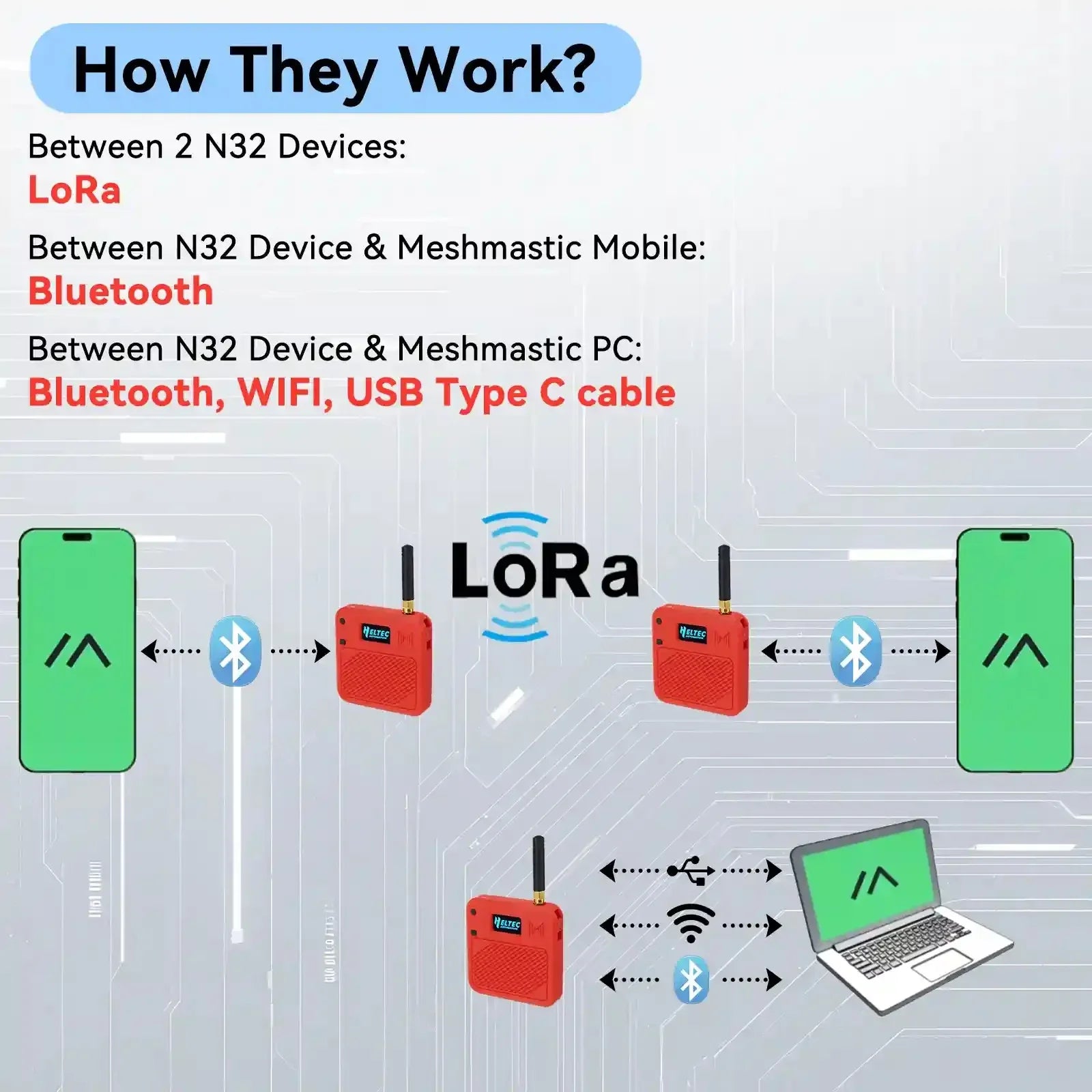

3. Multi-Protocol Connectivity – Wi-Fi, Bluetooth 5 (BLE), and LoRa integrated in one platform

4. Ready for Meshtastic – Fully compatible with decentralized mesh networking applications

5. Rich Hardware Interfaces – GPIO, I2C, SPI, UART, ADC, and touch support for expansion

6. Developer Friendly – Supports Arduino, ESP-IDF, PlatformIO and MicroPython

Color: Green
Size: Only Case

Product Description

Meshnology N32 ESP32 LoRa V3 Meshtastic Development Kit

Video Showcase

Meshnology ESP32 LoRa V3 Dev Kit – SX1262 | Wi-Fi | Bluetooth 5 | Meshtastic Ready

Extreme Long-Range LoRa Demo (Up to 20km / 13 Miles Off-Grid Communication)

Overview

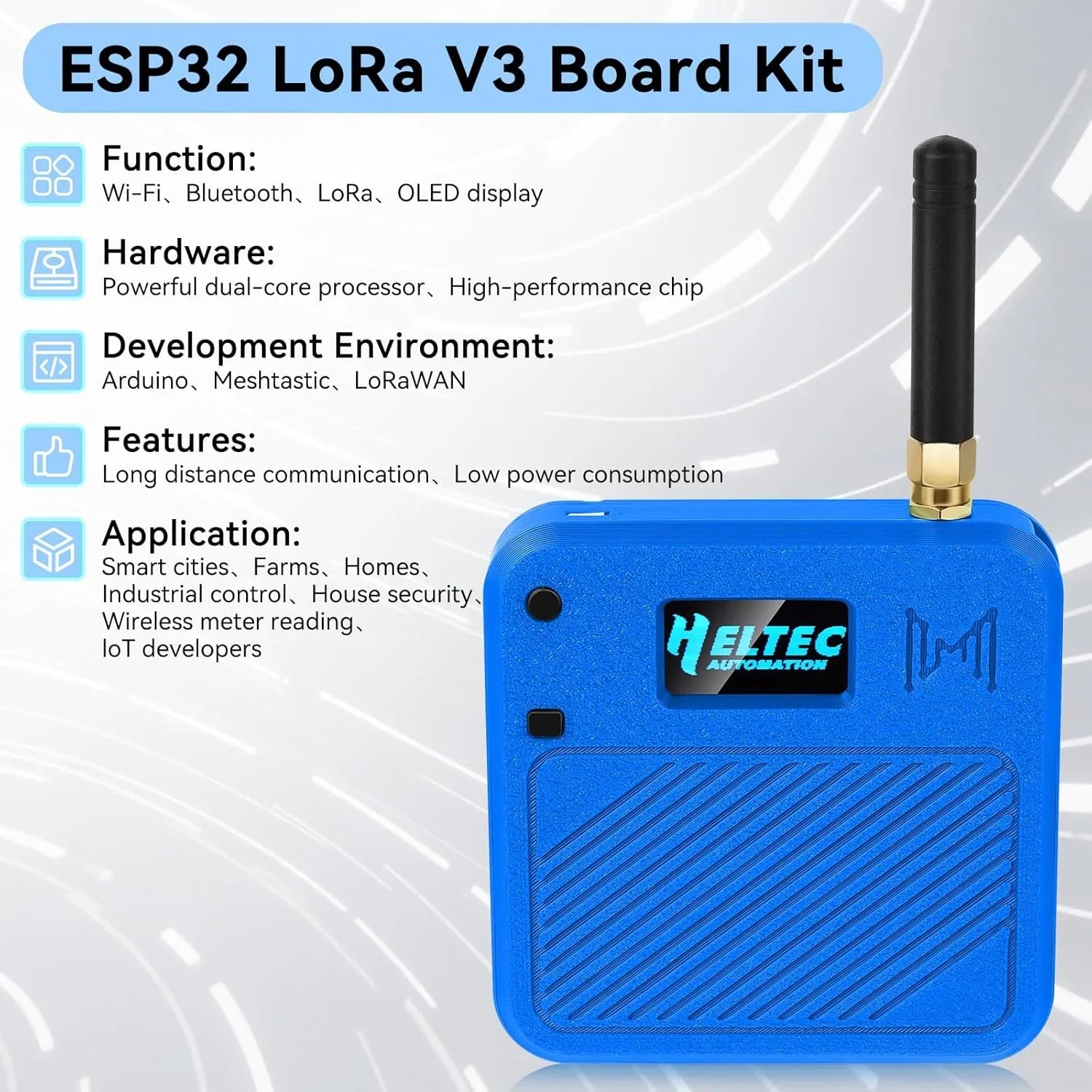

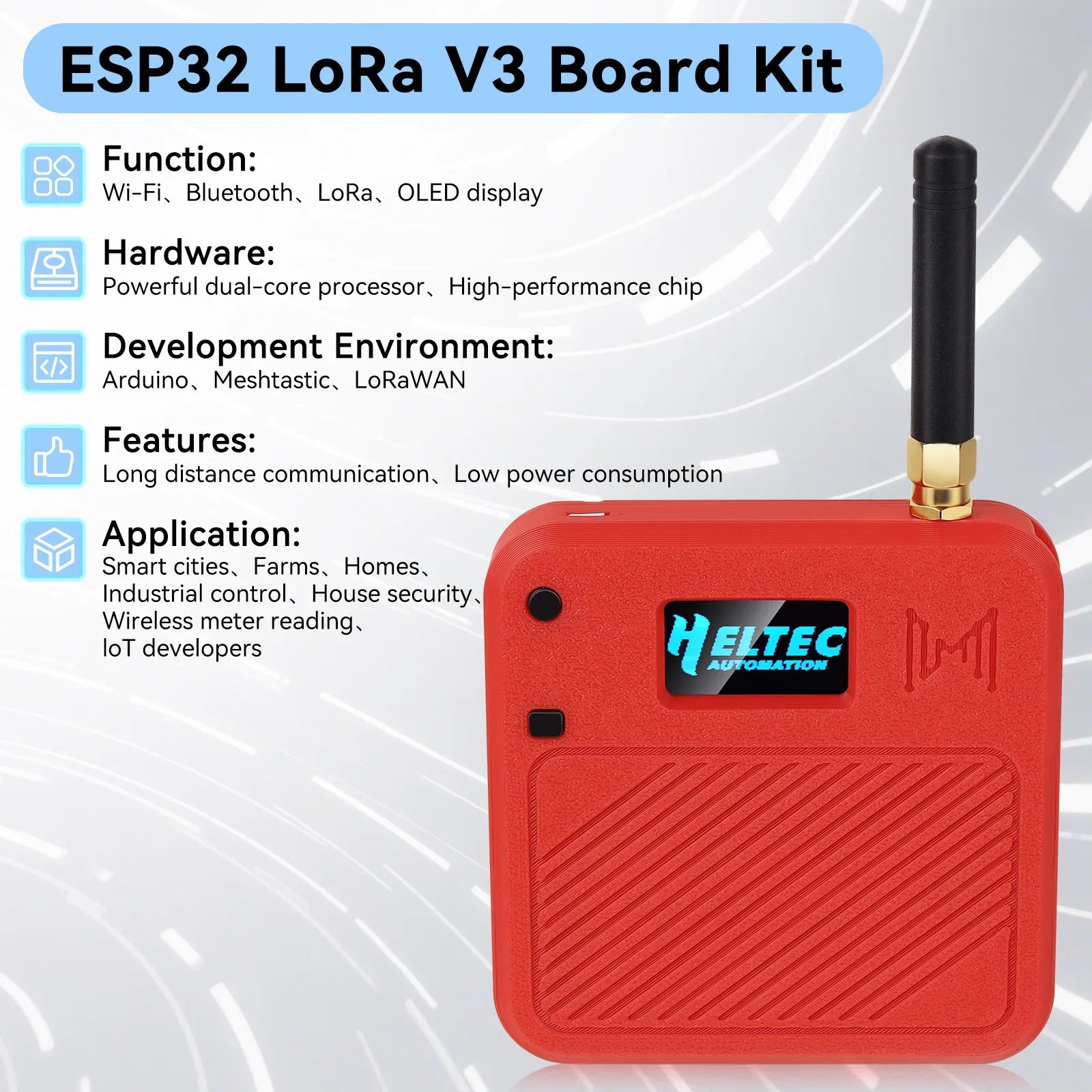

  1. The Meshnology N32 ESP32 LoRa V3 Kit is a fully integrated long-range IoT development solution designed for Meshtastic networks, off-grid communication, and low-power IoT deployments.
  2. Built around the ESP32-S3 dual-core processor and SX1262 LoRa transceiver, this kit combines Wi-Fi, Bluetooth 5 (LE), and ultra-long-range LoRa connectivity in a compact, field-ready enclosure with battery and antenna included.
  3. Designed for rapid deployment, it is ideal for developers building sensor networks, GPS tracking systems, smart automation, and outdoor communication nodes.

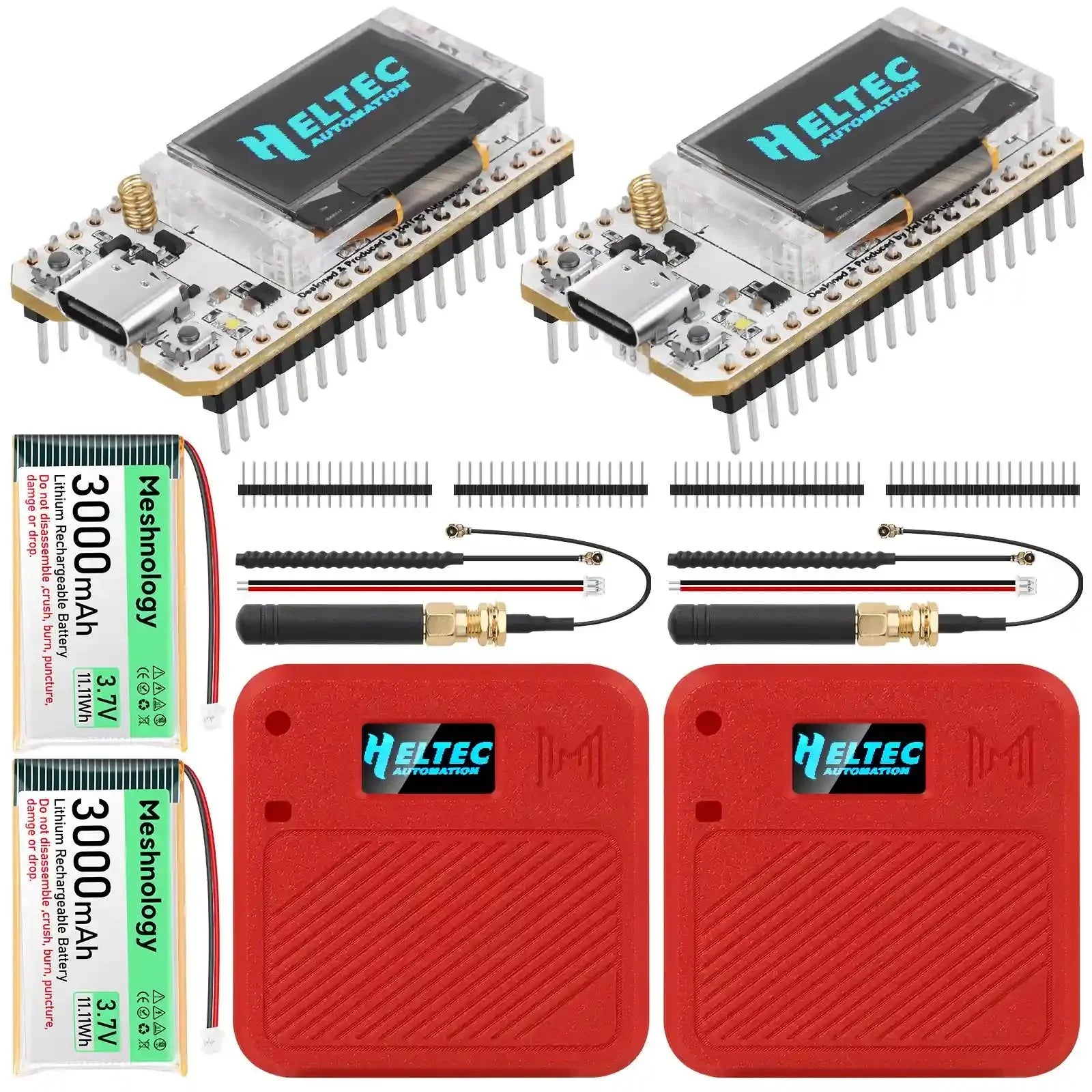

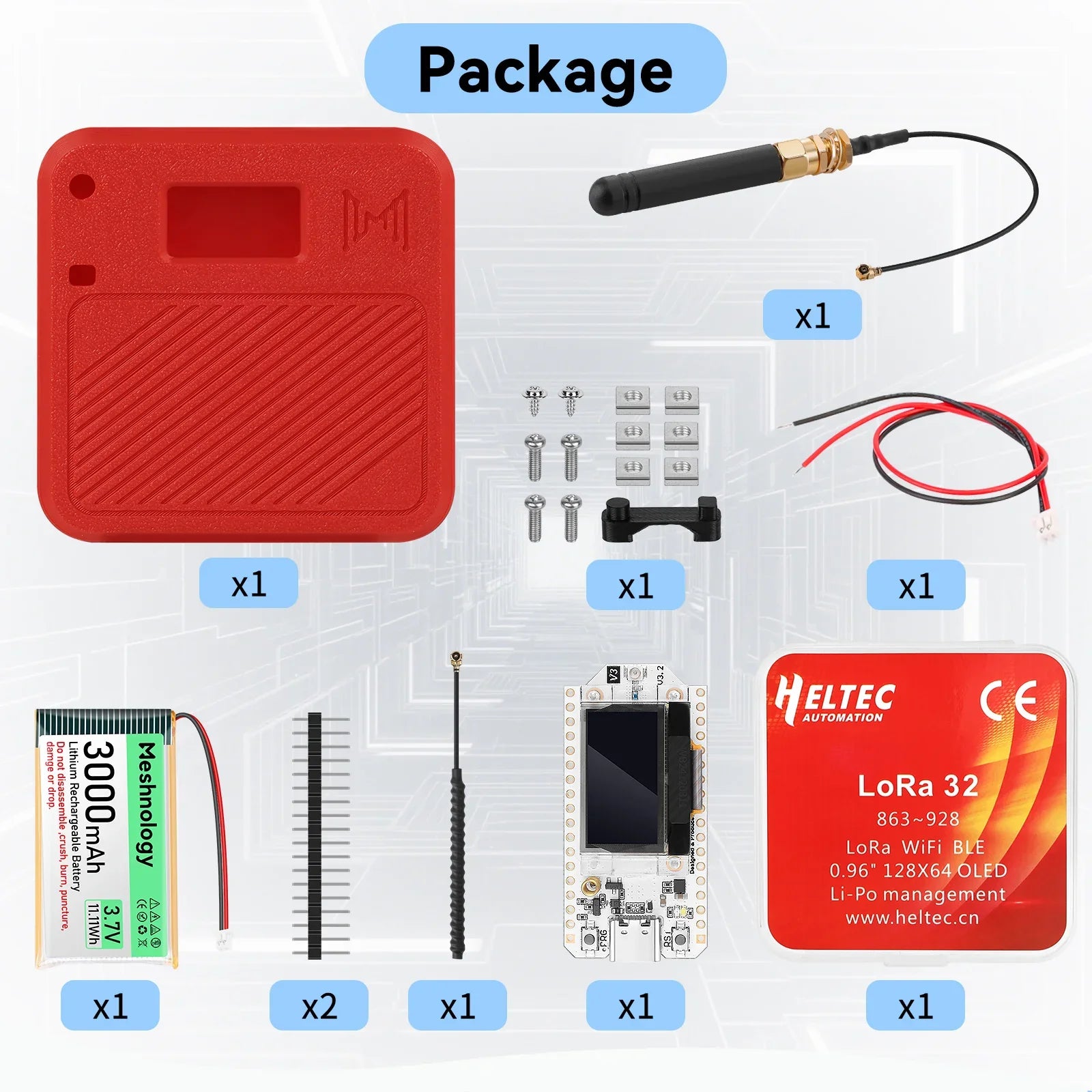

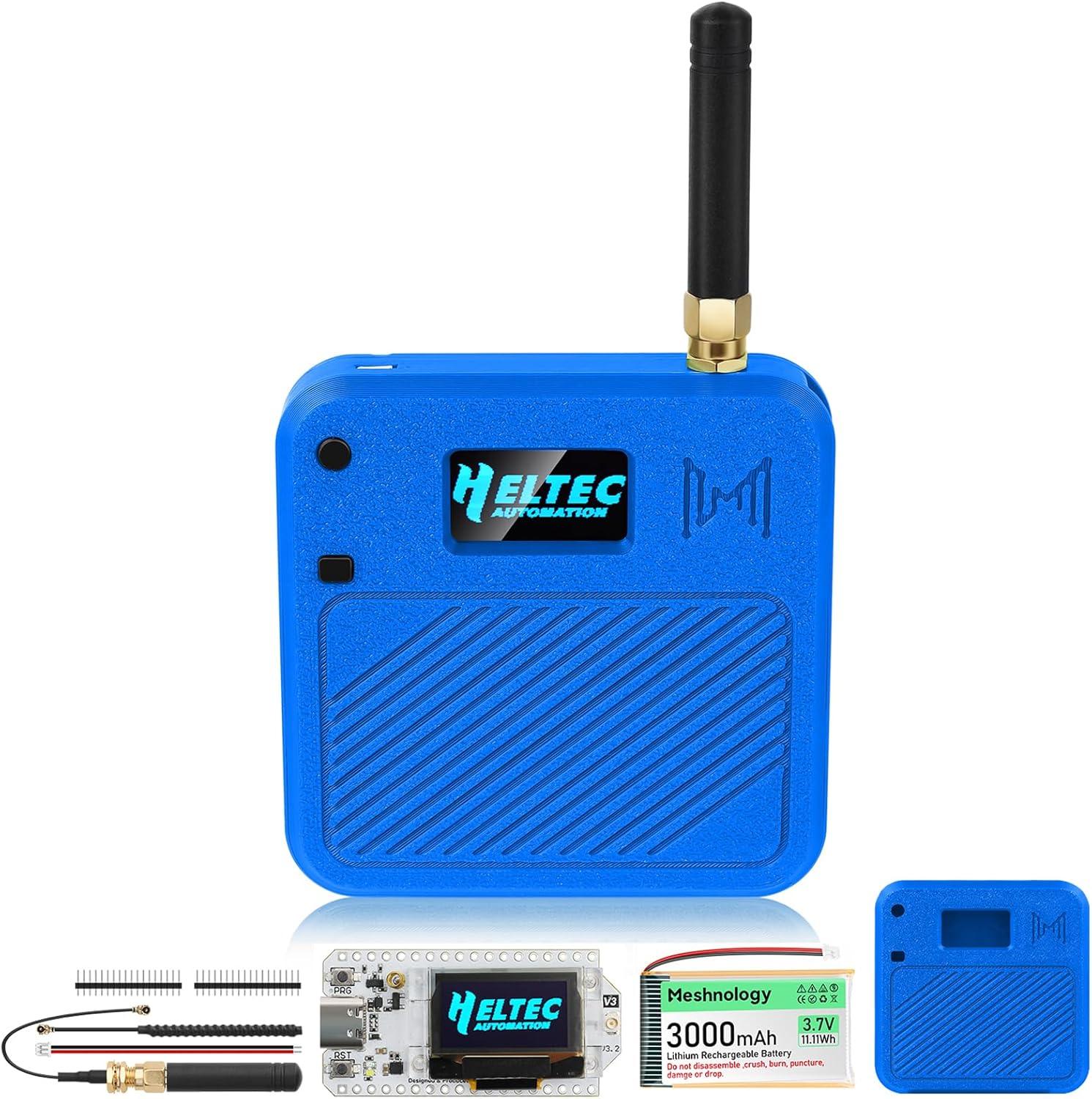

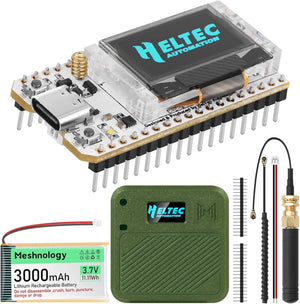

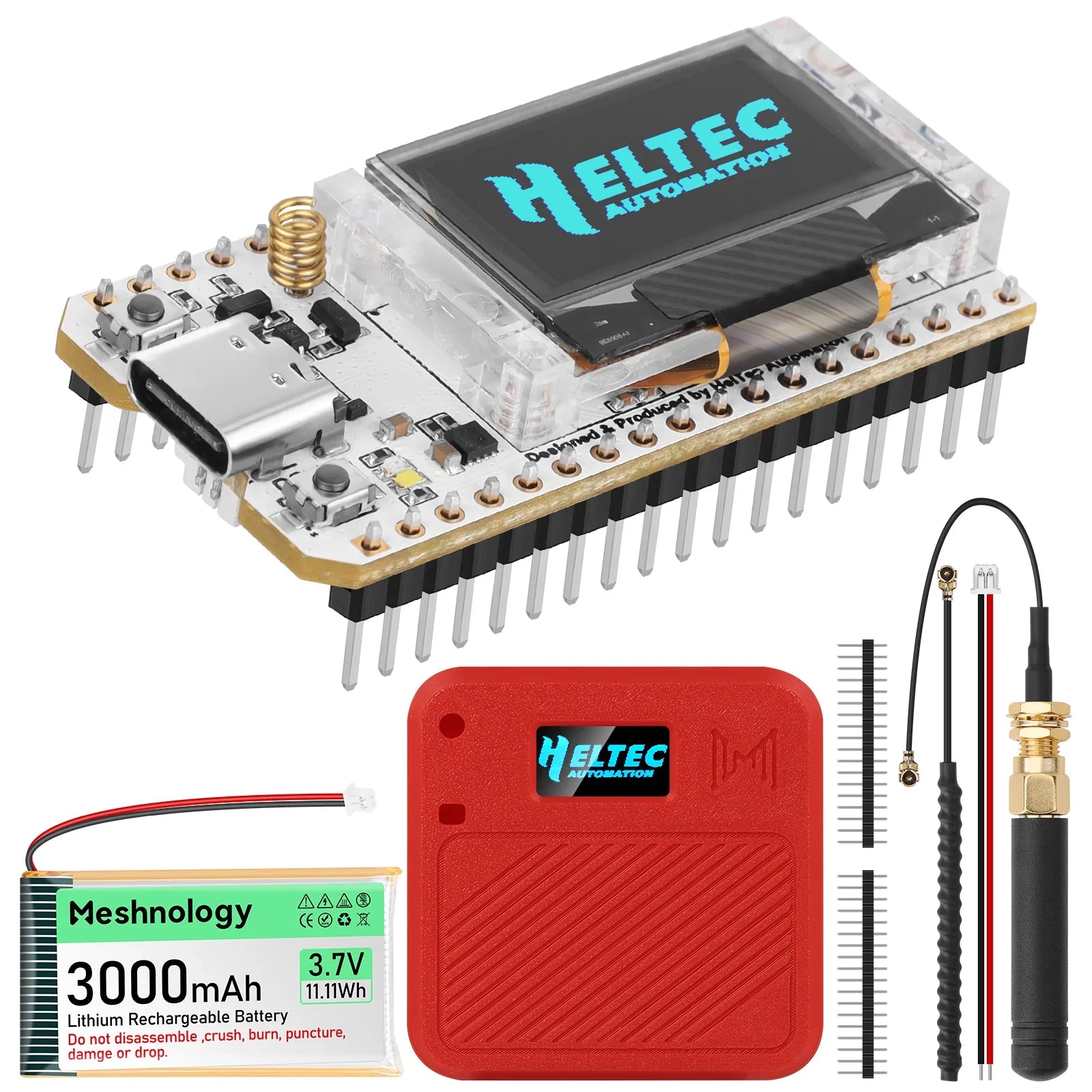

In the Box

  • 1 × ESP32 LoRa V3 Development Board (Pre-installed)

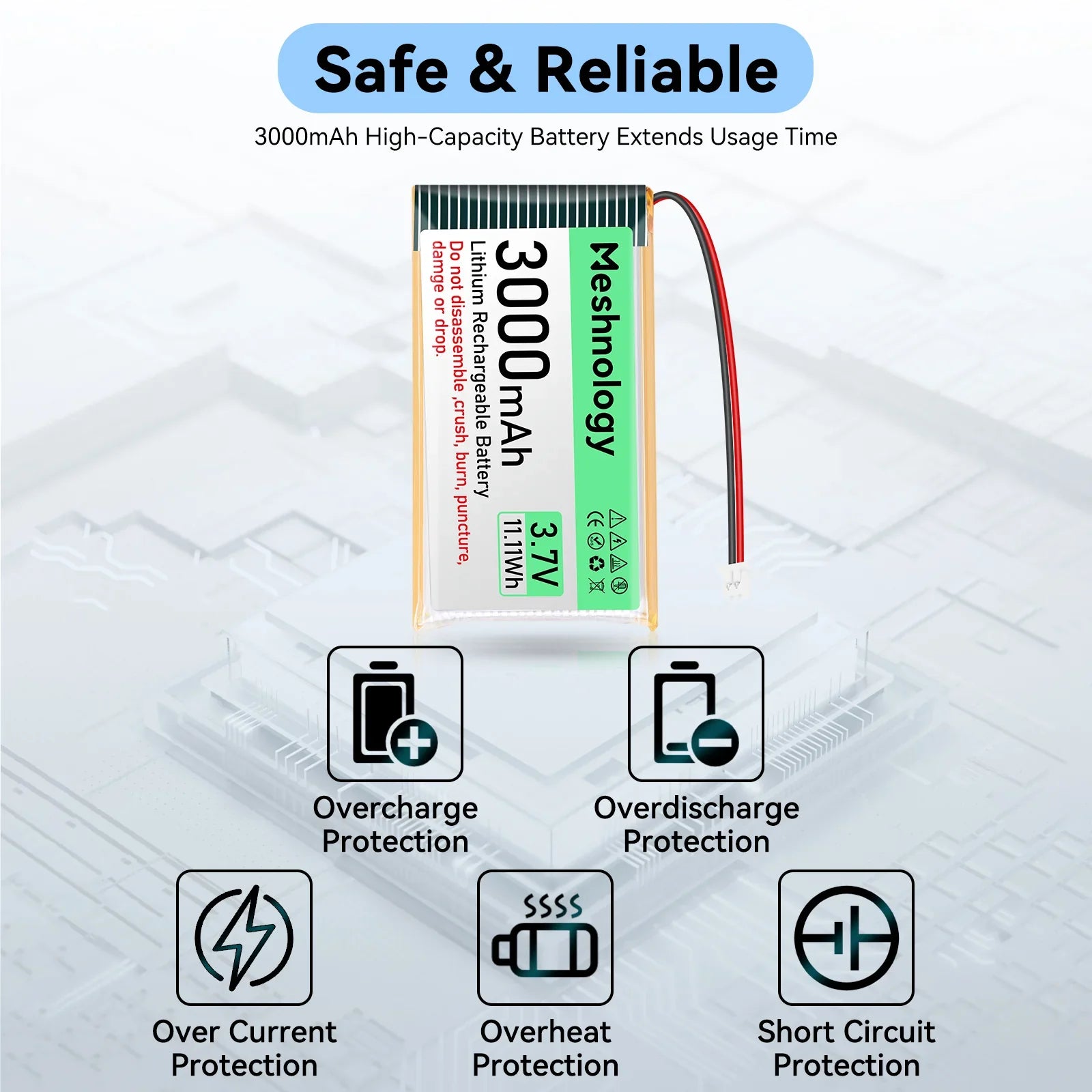

  • 1 × 3000mAh Rechargeable Battery
  • 1 × 863–928MHz Antenna
  • 1 × Protective 3D-Printed Case (N32 Enclosure)
  • 1 × USB Type-C Cable (or header accessories depending on batch)

Applications

  • Meshtastic mesh networking nodes
  • Long-range IoT sensor networks
  • GPS tracking and asset monitoring
  • Off-grid emergency communication systems
  • Smart home and industrial IoT projects
  • Education and embedded system development

ESP32 LoRa Series Comparison

N30 N32 N33 N35
1100mAh Battery 3000mAh Battery 3000mAh Battery 3000mAh Battery
Portable Basic Node Balanced Field Kit IoT + Smart Home OLED Full Feature Node
Entry Level Recommended Advanced Use Premium Build

Useful Links

Take a Closer Look

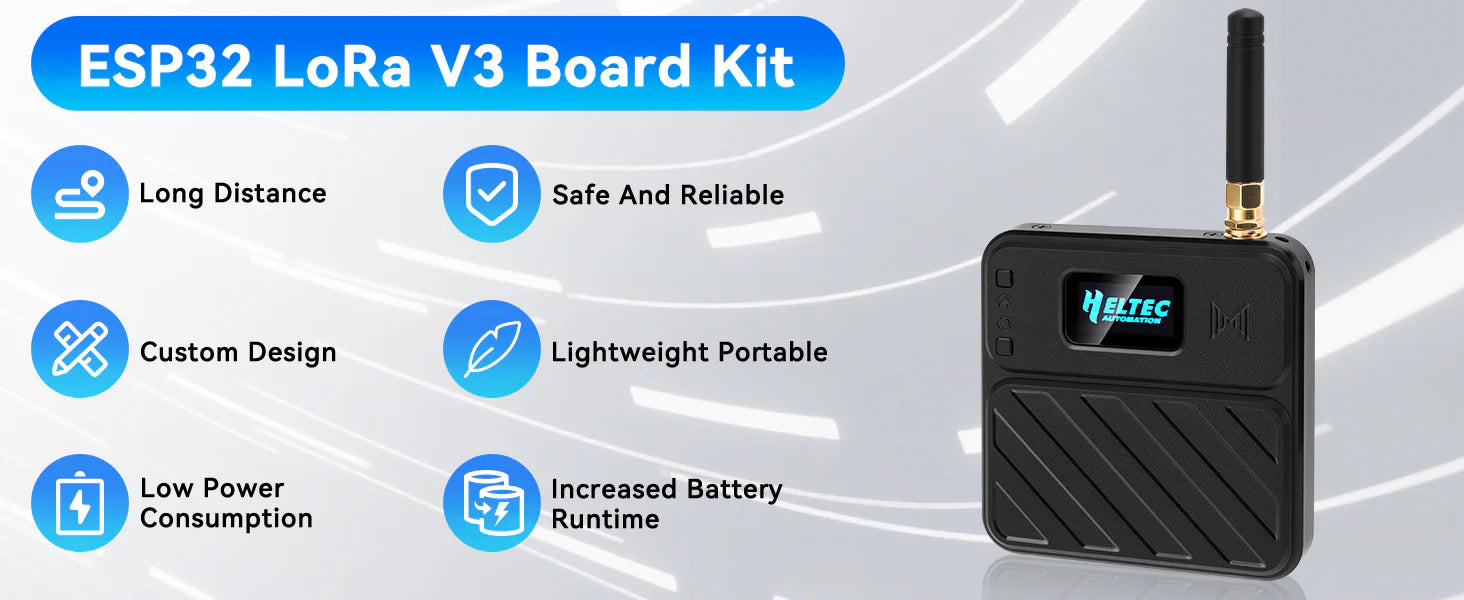

Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino 1
Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino 2

Specification

Item Specification
MCU
ESP32-S3FN8 (Dual-core Xtensa LX7, up to 240MHz)
LoRa Chip
SX1262
USB TO Serial
CP2102
Frequency
470–510MHz / 863–928MHz
Max TX Power
Up to 21 ±1 dBm
Sensitivity
-134 dBm @ SF12 BW=125KHz
Wi-Fi
802.11 b/g/n (up to 150Mbps)
Bluetooth
Bluetooth 5 (BLE)
Memory
8MB Flash / 512KB SRAM / RTC SRAM
Interfaces

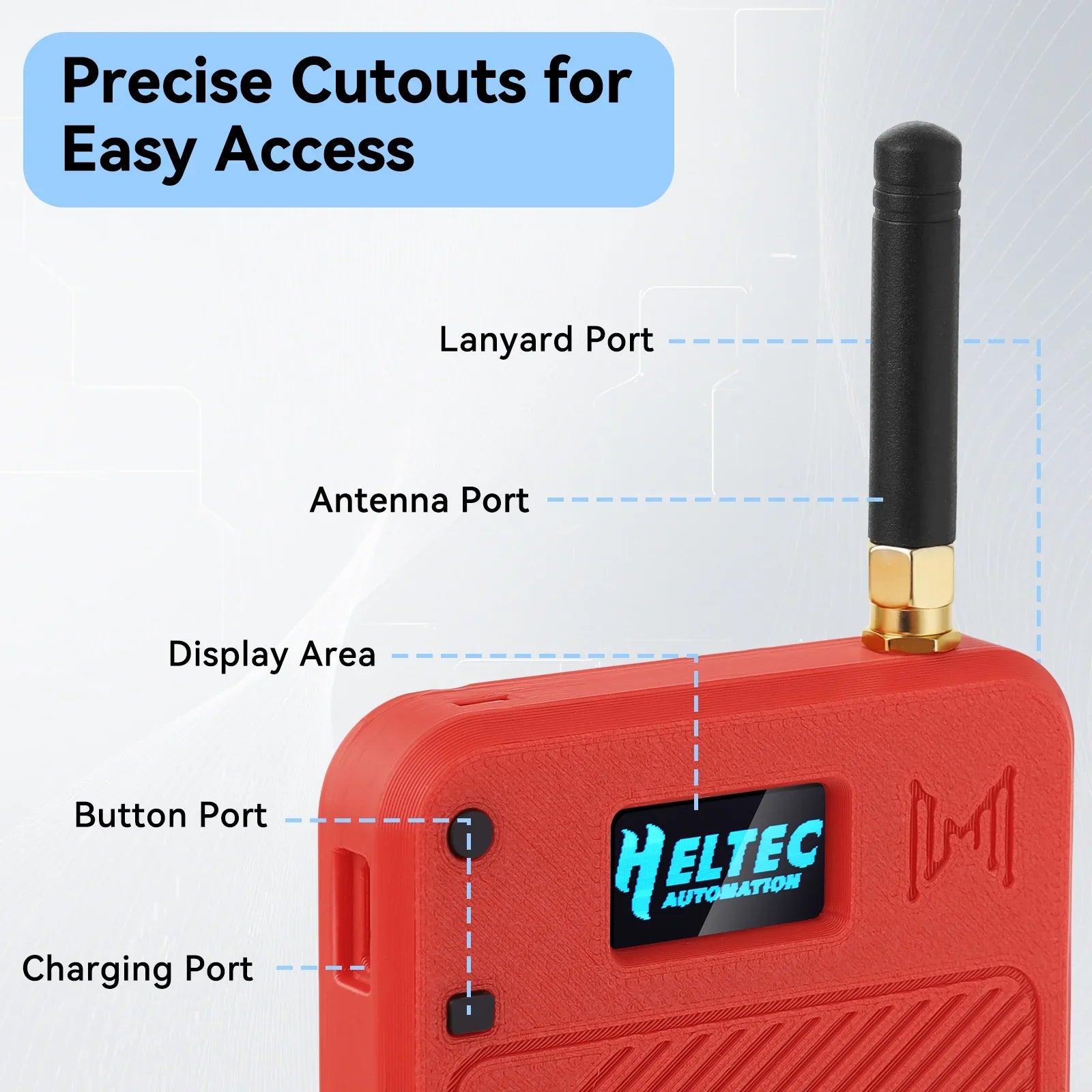

USB Type-C, dual battery port, IPEX antenna, GPIO headers
Battery
3.7V 3000mAh lithium battery with protection board
Operating Temp.
-20°C ~ 70°C

Warranty & After-Sales

Many of our products are handcrafted, which may result in minor variations or imperfections. If you experience any quality-related issues withinone year of purchase, we will offer afull refund or a replacement shipment. Please contact our support team with photos or videos of the issue, and we will assist you accordingly.

Technical Support & Resources

Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino 1
Product Manual Download
Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino 2
Product Certificates
Meshnology—N32 - ESP32 LoRa V3 Dev Kit, Meshtastic Node Kit for LoRaWAN, IoT, Arduino 3
Join the Community
