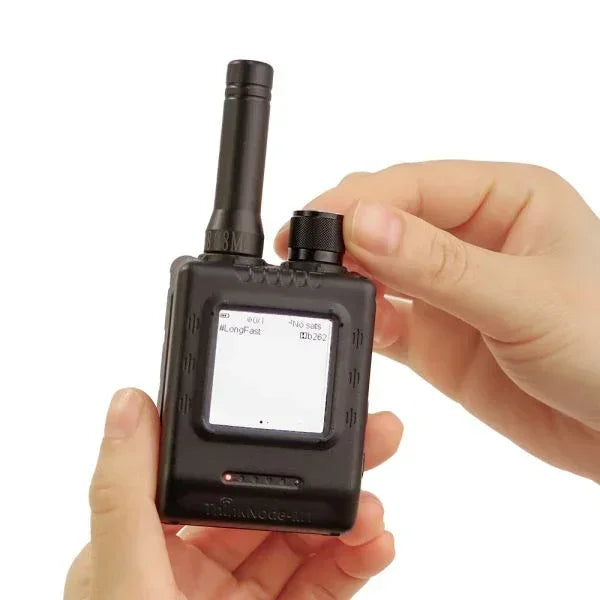

Compact LoRa transceiver with GPS screen held in hand, DIY IoT device with antenna
Compact LoRa transceiver with GPS, black case, antenna, and screen, with size dimensions shown.
ThinkNode-M1 LoRa transceiver kit with GPS, antenna, USB-C cable, and user manual
Compact LoRa transceiver with antenna, LCD screen, and 1200mAh battery shown outdoors
Compact ThinkNode-M1 LoRa transceiver with GPS and 1.54-inch EPD display outdoors
Hand holding ThinkNode-M1 compact LoRa transceiver with GPS, map, and compass in background
Compact LoRa transceiver device with antenna and GPS, shown next to smartphone running Meshtastic app outdoors
ThinkNode-M1 compact LoRa transceiver with GPS for outdoor adventure, emergency communications, community networking, technology projects, and fleet management.
Compact black LoRa transceiver with GPS, screen displaying frequency and logo, front view
Compact LoRa transceiver with GPS, screen display, antenna, and feature icons below.
Compact LoRa transceiver with GPS screen held in hand, DIY IoT device with antenna
Compact LoRa transceiver with GPS, black case, antenna, and screen, with size dimensions shown.
ThinkNode-M1 LoRa transceiver kit with GPS, antenna, USB-C cable, and user manual
Compact LoRa transceiver with antenna, LCD screen, and 1200mAh battery shown outdoors

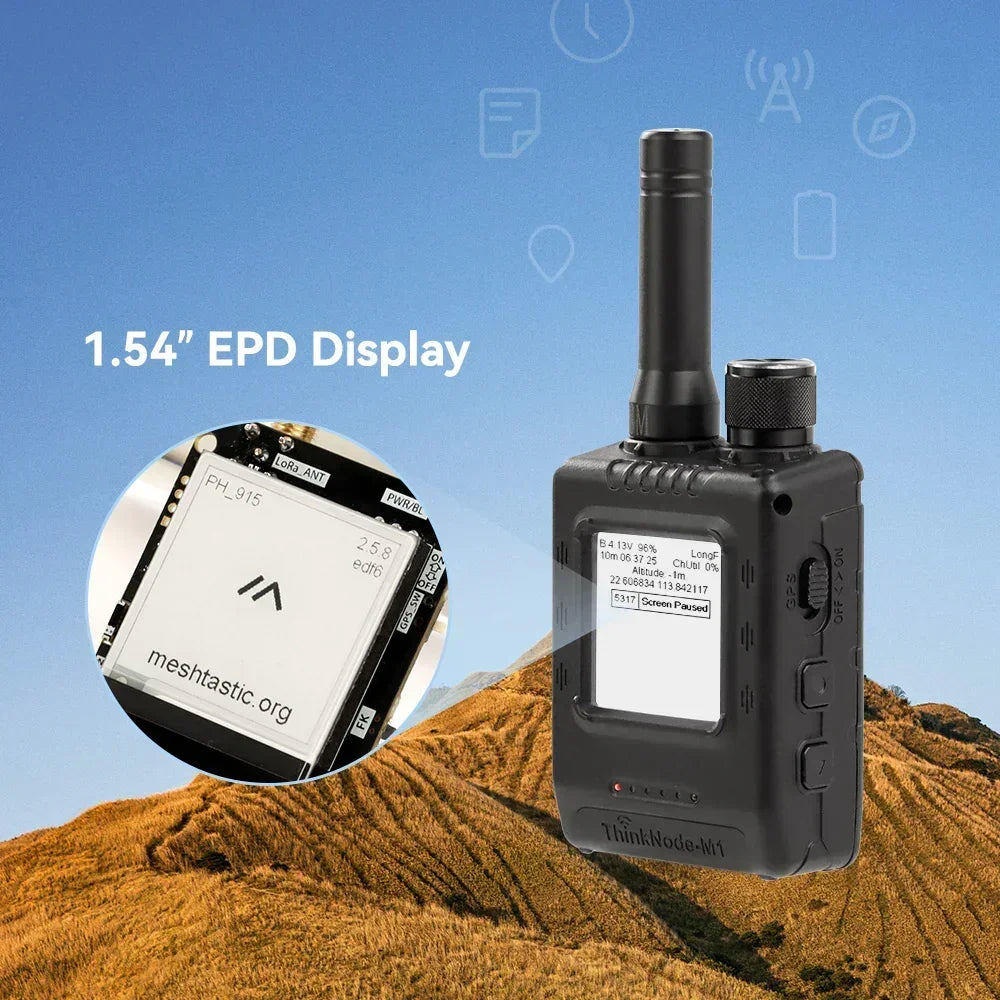

Compact ThinkNode-M1 LoRa transceiver with GPS and 1.54-inch EPD display outdoors
Hand holding ThinkNode-M1 compact LoRa transceiver with GPS, map, and compass in background
Compact LoRa transceiver device with antenna and GPS, shown next to smartphone running Meshtastic app outdoors
ThinkNode-M1 compact LoRa transceiver with GPS for outdoor adventure, emergency communications, community networking, technology projects, and fleet management.

ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display

Sale price $59.99 USD

1. Meshtastic LoRa transceiver designed for outdoor communication, GPS tracking, and IoT mesh networking.
2. Powered by the Nordic nRF52840 chipset and SX1262 LoRa module。

3. Delivers stable long-range connectivity with ultra-low power consumption, making it ideal for off-grid communication and emergency scenarios.

4. Pre-configured firmware that compatible with Meshtastic. Supports GPS / GLONASS / BeiDou / QZSS

5. High perforamnce with 1.54" E-Ink Display, 1200mAh battery and 5.6μA standby consumption.

Frequency: 868 MHz

Product Description

ThinkNode M1 LoRa Meshtastic Transceiver

Overview

The ThinkNode M1 is a compact, high-performance Meshtastic LoRa transceiver designed for outdoor communication, GPS tracking, and IoT mesh networking.
Powered by the Nordic nRF52840 chipset and SX1262 LoRa module, it delivers stable long-range connectivity with ultra-low power consumption, making it ideal for off-grid communication and emergency scenarios.

Key Features

  • nRF52840 MCU – Low-power 64MHz ARM Cortex-M4 processor
  • SX1262 LoRa Module – Reliable long-distance communication (868/915MHz)
  • Meshtastic Compatible – Pre-configured firmware support
  • 1.54" E-Ink Display – Ultra-low power 200×200 resolution screen
  • Built-in GPS – Supports GPS / GLONASS / BeiDou / QZSS
  • 1200mAh Battery – Long battery life for field operations
  • Ultra-Low Power Design – ~5.6μA standby consumption
  • Portable & Rugged – Compact ABS housing for outdoor use

Applications

  • Meshtastic off-grid communication networks
  • Outdoor hiking and expedition tracking
  • Emergency and disaster communication systems
  • Environmental and IoT sensor networks
  • GPS asset tracking and field monitoring

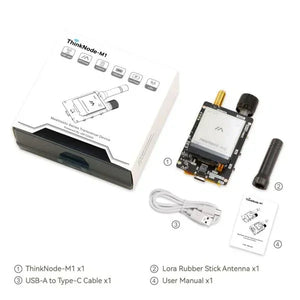

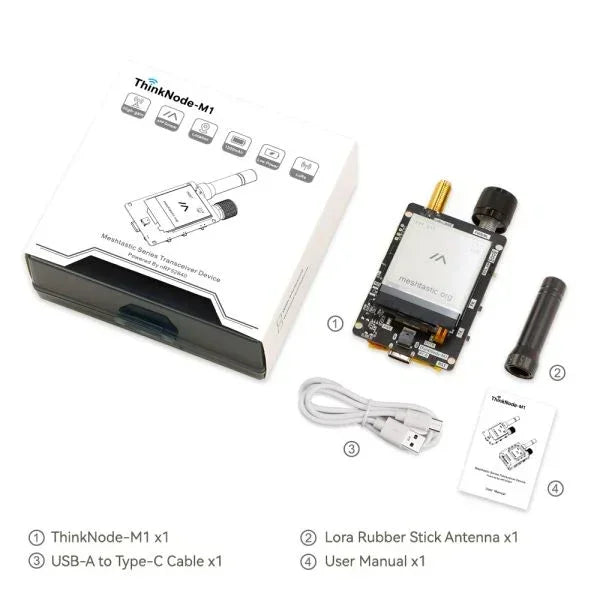

Package Includes

  • 1 × ThinkNode M1 LoRa Meshtastic Device
  • 1 × USB Type-C Cable
  • 1 × LoRa Antenna
  • 1 × User Manual



Take a Closer Look

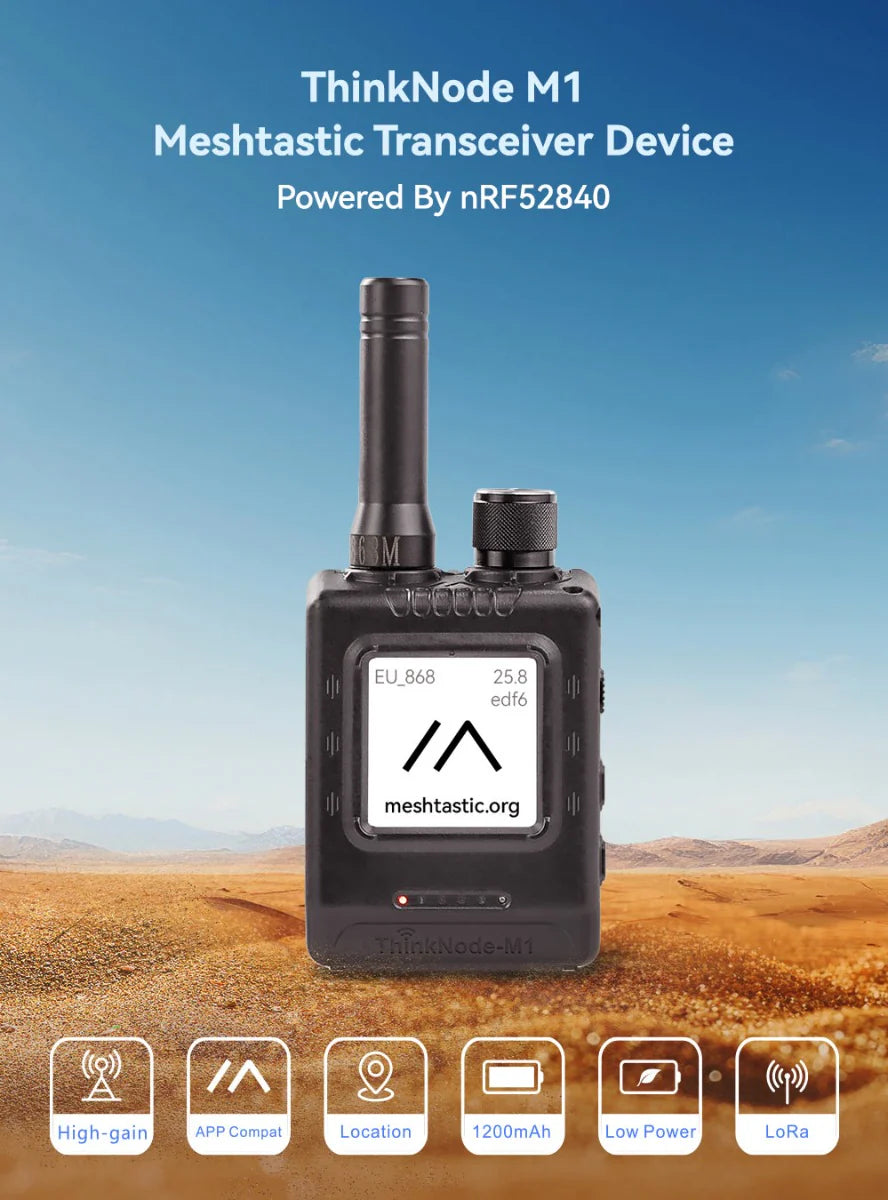

ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display 1
ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display 2
ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display 3

Specification

Item Specification
Processor
Nordic nRF52840 (ARM Cortex-M4, 64MHz)
LoRa Chip
SX1262
Memory
256KB RAM + 3MB Flash + 2MB external Flash
Display
1.54" E-Ink, 200×200, SSD1681
Wireless
Bluetooth 5 (BLE) + LoRa 868/915MHz
GPS
GPS / GLONASS / BeiDou / QZSS
Interface
USB Type-C + RP-SMA antenna
Battery
1200mAh rechargeable lithium battery
Power Consumption
~85mA active / ~5.6μA standby
Size
82 × 51.6 × 26.3 mm
Weight
58g (without case), 81g (with case)
Operating Temperature
-10°C to 50°C

Warranty & After-Sales

Many of our products are handcrafted, which may result in minor variations or imperfections. If you experience any quality-related issues withinone year of purchase, we will offer afull refund or a replacement shipment. Please contact our support team with photos or videos of the issue, and we will assist you accordingly.
