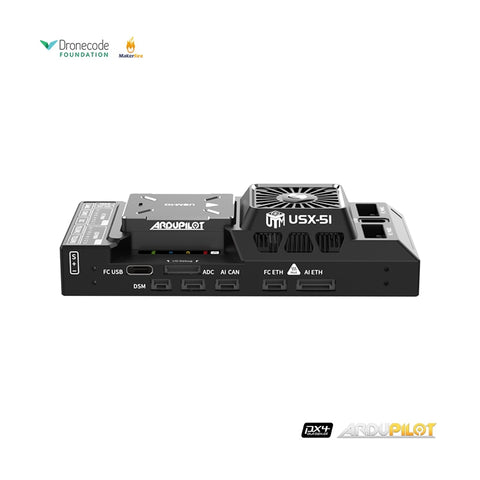

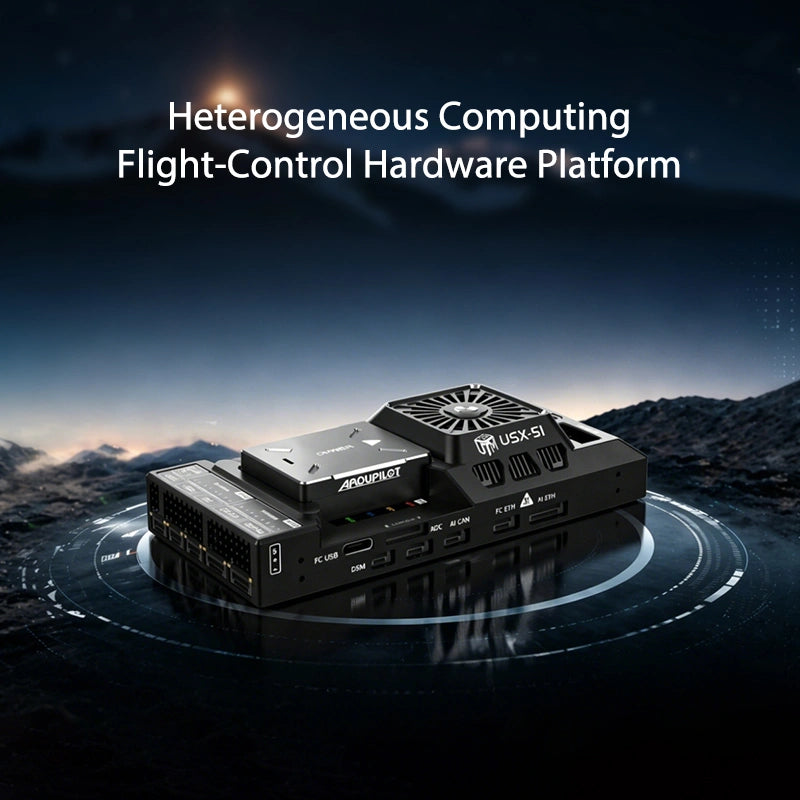

USX51 Industrial-Grade AI Computing Drone Flight Controller Board
1. Edge AI Computing (10 TOPS): In-house Developed AI chip enables local AI decision-making, eliminating cloud latency to serve as a industrial drone solution.
2. Pixhawk 6X, PX4/ ArduPilot Compatible: Integrates AI chip and the Pixhawk 6X flight controller core architecture, purpose built for multirotor, fixed-wing drones and VTOL platforms.
3. High-Speed Ethernet: Built-in 100 Mbps Ethernet PHY for high-speed data and payload communication.
4. AI-Enhanced Navigation: Air-ground perception enables centimeter-level navigation in complex environments. Meet the autonomouse decision-making drones.

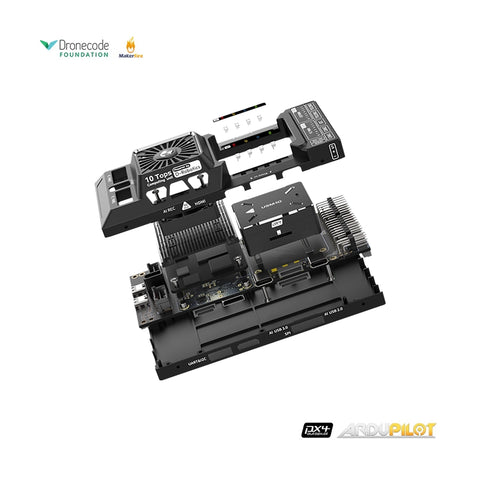

5. Universal Compatibility: Modular design supports all aircraft types, reducing integration costs.
In The Box: 1 x USX51 Drone Flight Controller, 1 x USP10 Power Module, 1 x USX51 Manual, 5 x Cables & Adapters, 4 X USX51 Corner Brackets, 2 x USP10 Corner Brackets
Guaranteed Safe Checkout

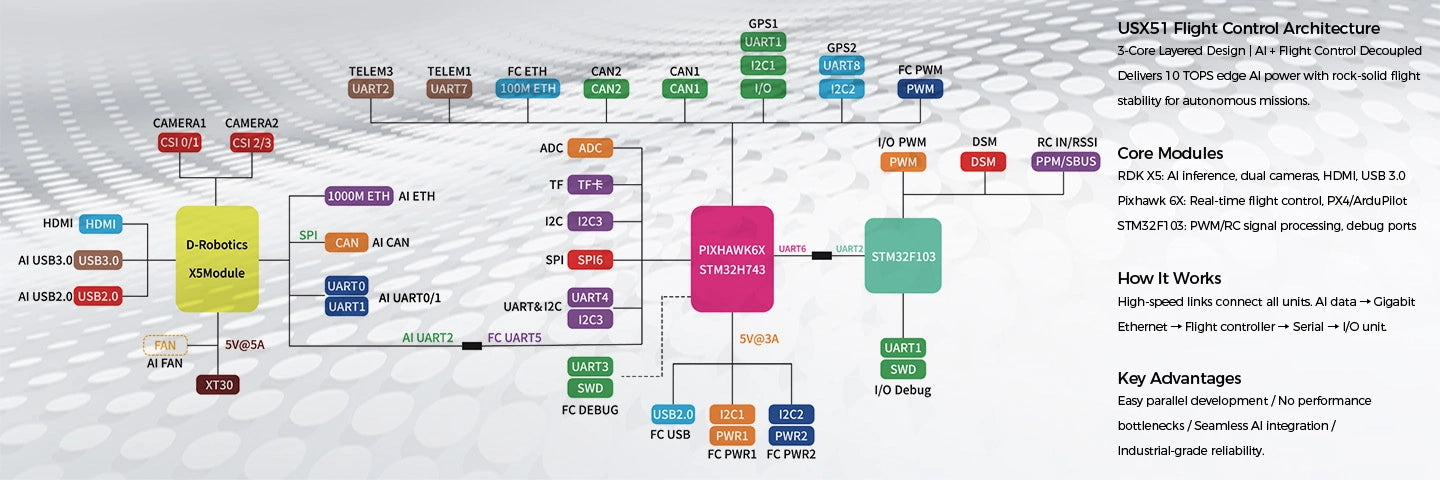

USX51 is a high performance EDGE AI computing drone flight controller that integrates D-Robotics X5 AI chip with Pixhawk 6X, delivering integrated flight control and AI capabilities for autonomous drones and robots, It features powerful 10 TOPS AI computing power, dual-core independent design (Ubuntu + ROS 2/ PX 4/ Ardupilot), and rick interface compatiblity, making it ideal for intelligent drone navigation, industrial monitoring, and robotic control scenarios.

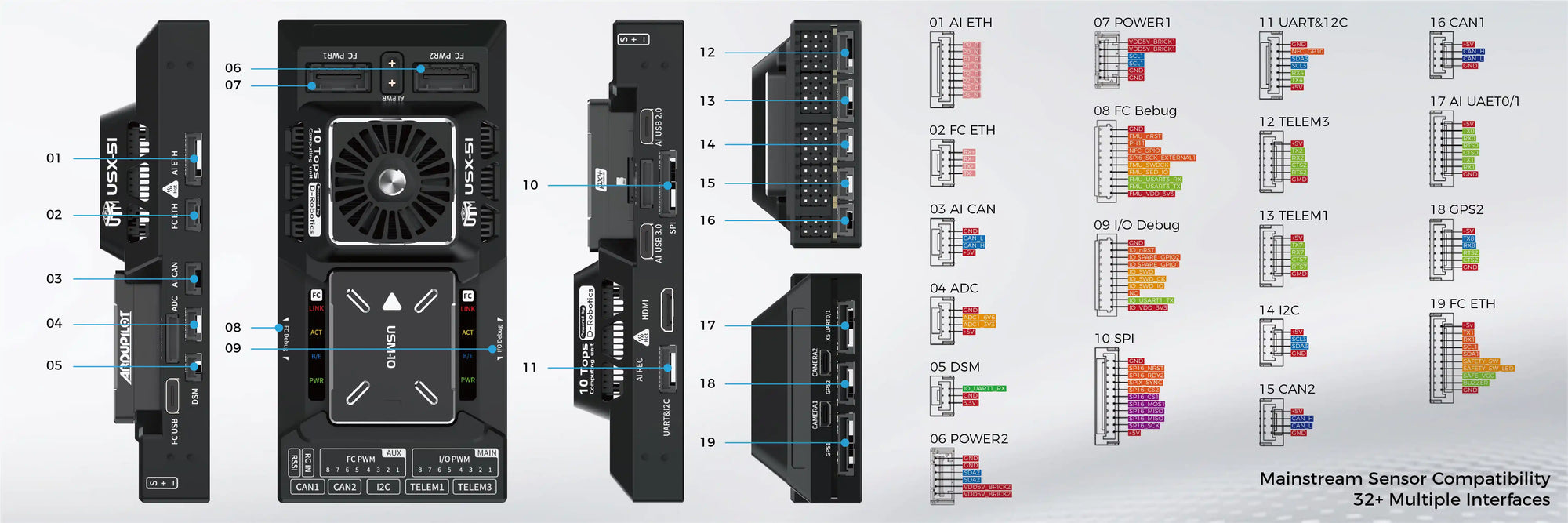

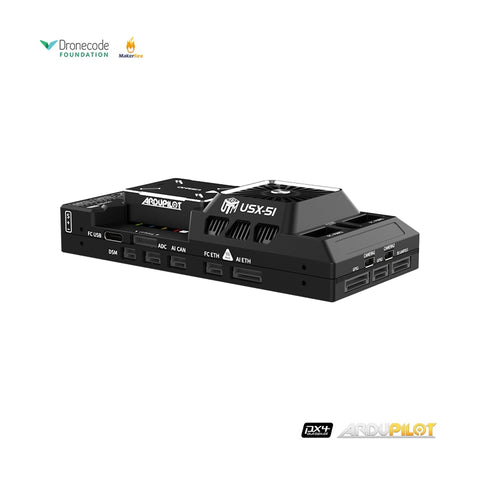

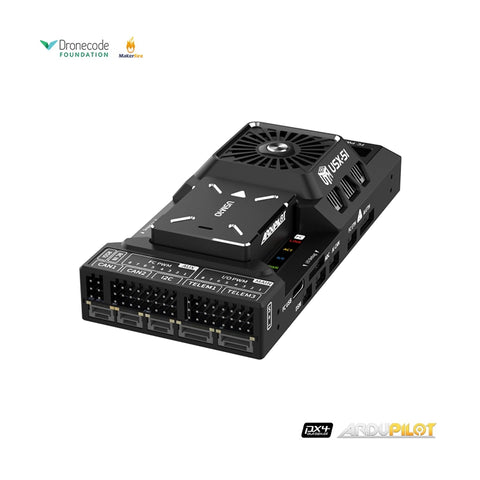

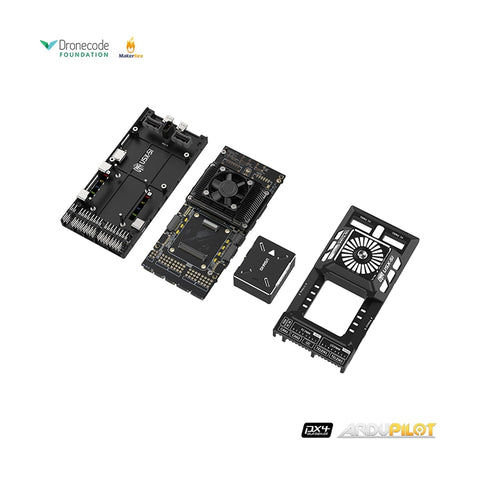

Take a Closer Look
Specification
| Item | Specification |
|---|---|
| Product Name | Drone AI Flight Controller |
| Suitable UAV Types | Fixed-wing, Multirotor, VTOL |
| Model | USX51 |
| Brand | Meshnology (Makerfire) |
| FMU Processor | STM32H753 - Arm Cortex - M7 480MHz, 2MB memory, 1MB SRAM |
| IO Processor | STM32F103 - Arm Cortex - M3 72MHz, 64KB SRAM |
| CPU | 8x Octa-core Cortex.A55, 1.5GHz |
| GPU | 32 GFlops, 2D & 3D Engine, Support OpenGL ES 3.1/3.0/2.0/1.1, OpenCL 1.1/1.2/3.0, Vulkan 1.0/1.2, DirectX 11 |
| BPU | 10 TOPS computing power, Bayes architecture: support Tranformer accelerated large models |
| DDR | LPDDR4/4x 32bit@4267Mbps, Up to 8GB |
| Accel/Gyro | ICM-45686x3 |
| Compass | BMM150 |
| Barometer | 1 x BMP388, 1 x ICP20100 |
| Power | 8.7 W |
| Operating Temp. | -20 ~ +50 ℃ |

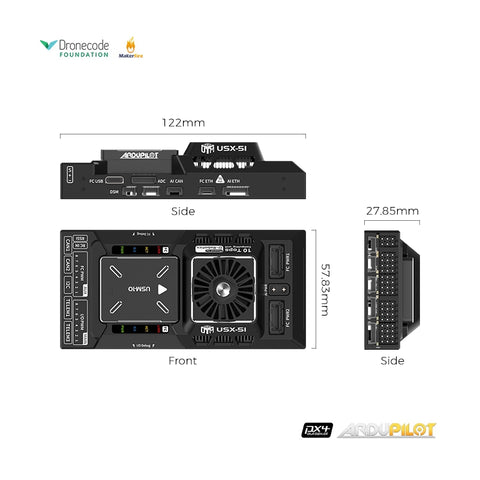

| Product Size | 122 x 58 x 28mm/ 4.8 x 2.3 x 1.1 inch |
| Package Size | 182 x 173 x 49mm/ 7.2 x 6.8 x 1.9 inch |
| Product Weight | 170 g/ 0.38 lbs |
