Benewake TF-Luna 0.2 to 8M LiDAR Range Finder - for Arduino & Pixhawk
TF-Luna Drone LiDAR Range Finder Sensor

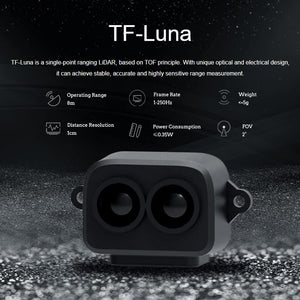

- The TF-Luna is a compact, cost-effective LiDAR distance sensor based on Time-of-Flight (ToF) technology.
- It offers high-precision single-point ranging with excellent stability and responsiveness which makes it ideal for drones, robotics, smart devices, and industrial automation.
- With an operating range of 0.2 to 8 meters, multiple interfaces, and low power consumption, TF-Luna is built for integration into diverse real-world environments.
- Widely compatible with LoRa32U4 II, Raspberry Pi, Arduino, Pixhawk, and more.
Key Features & Specifications
Accurate Ranging Performance
• Operating range: 0.2–8 meters
• Accuracy: ±6cm (0.2–3m), ±2% (3–8m)
• Range resolution: 1cm
• Field of View (FOV): 2°
• Frame rate: 1–250Hz (adjustable)
Efficient Power Management
• Supply voltage: 5V ±0.1V
• Average current: ≤70mA, Peak current: 150mA
• Average power consumption: ≤350mW
Flexible Communication & Integration

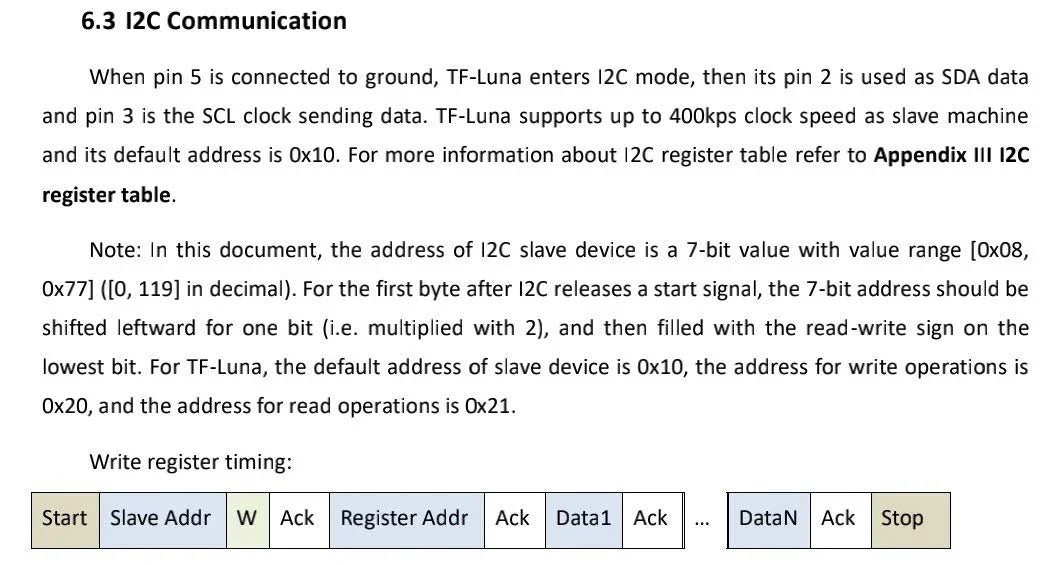

• Interface: UART/I²C (default UART, I²C configurable)
• Communication level: LVTTL (3.3V)
• Default baud rate: 115200
• Data bit: 8, Stop bit: 1, No parity
• Light source: VCSEL (850nm)
• Operating temperature: -20°C to 75°C
• Certifications: CE, FCC, RoHS
Wide Applications
• Drone altitude hold and obstacle avoidance
• Fall detection and anti-fall safety in robotics
• Smart trash bins and waste-level monitoring
• Smart home devices like dressing mirrors and IoT automation
• Elevator projection trigger systems
• Traffic monitoring, industrial measurement, and more

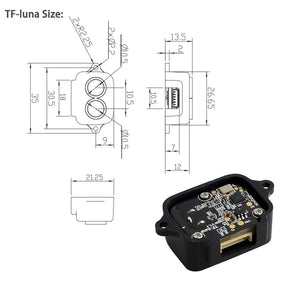

Dimensions & Weight
Size: 35 × 21.25 × 12.5 mm
Weight: Approx. 5g

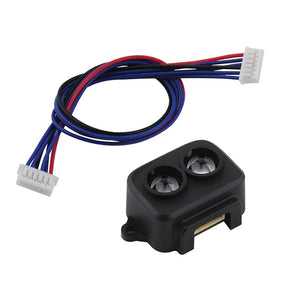

Package Includes
1 × TF-Luna LiDAR Module

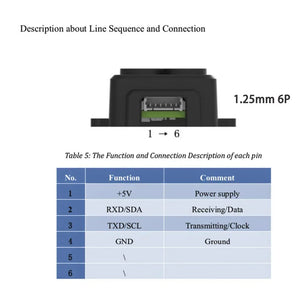

1 × 1.25mm 6-pin Interface Cable
