Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114
1. All-in-One Meshtastic Node – Pre-configured for fast deployment and seamless mesh networking.
2. Powerful nRF52840 MCU – Low-power ARM Cortex-M4 architecture optimized for BLE and IoT applications.
3. Long-Range LoRa Communication – SX1262 chipset (863–928MHz) for stable, low-power transmission.
4. Integrated GNSS Support – Built-in GPS positioning for tracking and location-aware applications.
5. Multiple Power Options – USB Type-C, lithium battery, and solar input support.
6. Developer-Friendly Design – Fully compatible with Arduino and extensible I/O interfaces.
Product Description
Meshnology N36 - Kit de développement carte Mesh Node T114 – Batterie 3000mAh - Antenne 863~928MHz, Bluetooth, écran TFT en option, boîtier
All-in-One nRF52840 LoRa Development Kit
This compact Mesh Node T114 board integrates the powerful nRF52840 MCU and SX1262 LoRa chipset, delivering robust long-range wireless communication. Designed for Meshtastic and IoT projects, it offers versatile connectivity including Bluetooth and supports Arduino development for easy prototyping and integration.
Reliable and Versatile Connectivity
Equipped with the SX1262 LoRa radio and Bluetooth, the board ensures stable communication over long distances. It includes multiple power input options such as Type-C USB, lithium battery, and solar panel interfaces, making it suitable for outdoor and solar-powered applications.

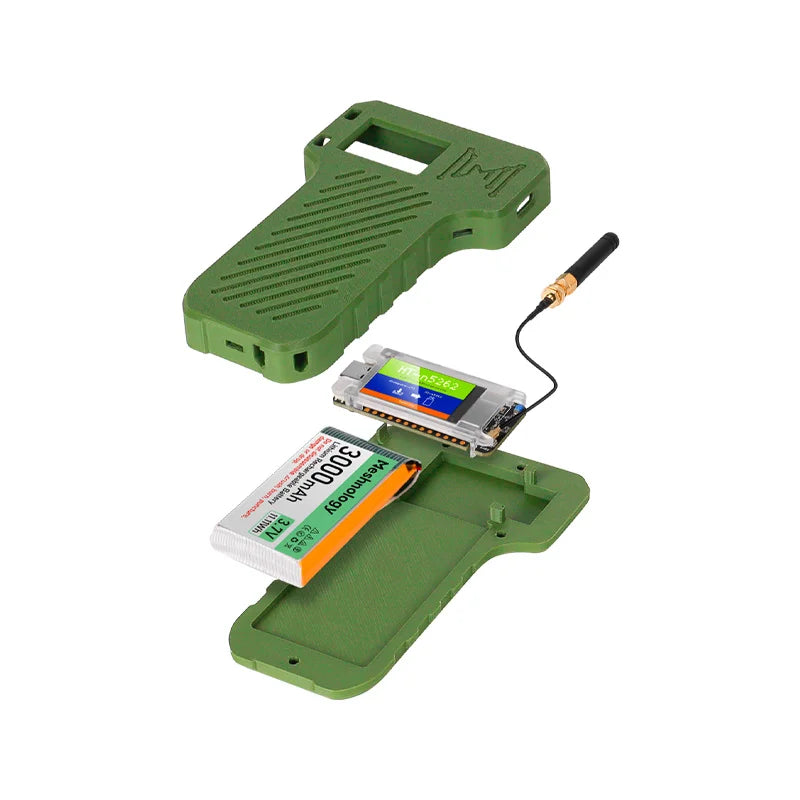

Durable Protective Case with High-Capacity Battery
Encased in the upgraded N36 protective case, the board comes with a pre-installed 3000mAh rechargeable battery to support extended operation. The design accommodates solar charging and provides stable power management for continuous use in variable environments.
Optional Brilliant TFT Display
Supports an optional 1.14-inch TFT display with 135(H)RGB × 240(V) resolution and up to 262k colors, enabling vibrant and clear real-time data visualization directly on the device.
I/O et extensions conçus pour les développeurs
Compatible Arduino et soutenu par un cadre de développement complet et des bibliothèques, le module dispose de nombreux connecteurs d’extension pour GPS, antennes et intégration solaire, facilitant le développement et le passage à l’échelle des projets.

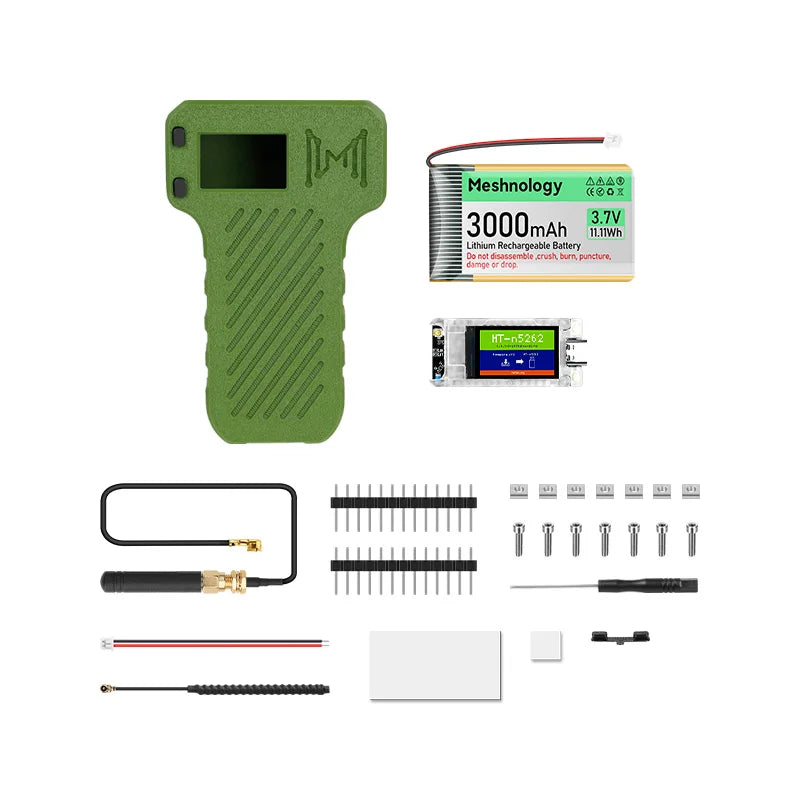

Le colis contient
- Carte de développement Mesh Node T114
- Batterie rechargeable 3000mAh (préinstallée)
- Boîtier de protection N36

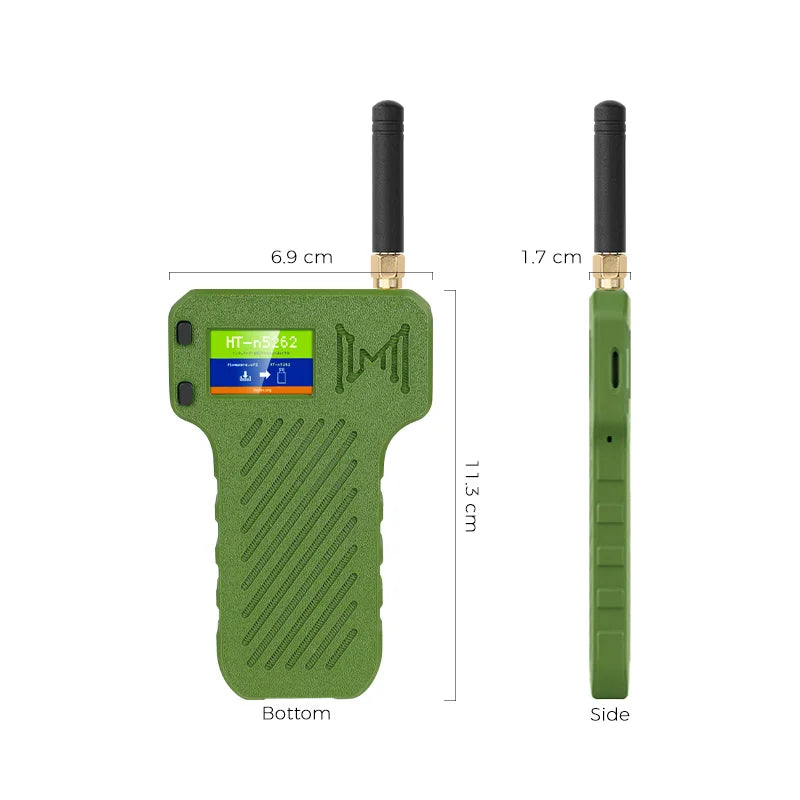

Dimensions et poids
- Approximate size with case: 100mm × 45mm × 30mm
- Poids total : environ 95g (batterie et boîtier inclus)
| Paramètre | Mesh Node T114 | WiFi LoRa 32 (V3) |
|---|---|---|
| MCU principal | nRF52840 (Nordic Semiconductor) | ESP32-S3FN8 (Espressif) |
| CPU Architecture | ARM Cortex-M4 avec FPU | Xtensa® LX7 dual-core, 5-stage pipeline |
| Puce LoRa | SX1262 (Semtech) | SX1262 (Semtech) |
| Sans fil | Bluetooth 5 / 5.1 / 5.2, 2,4 GHz | Wi-Fi 802.11 b/g/n + Bluetooth 5 (LE) |
| Affichage | Écran couleur TFT 1,14" | 0.96" Monochrome OLED display |
| GPS Module | Supported (Built-in GNSS) | Non pris en charge |
| Gestion de la batterie | Charge intégrée de batterie lithium (compatible batterie 18650) | Charge intégrée de batterie lithium (compatible batterie LiPo) |
| Platform Focus | Optimized for Meshtastic Bluetooth Mesh network | General purpose platform for LoRa + WiFi + BLE |
| Utilisation recommandée | Outdoor comm nodes, low-power BLE mesh networks | IoT projects, wireless sensor networks |
Take a Closer Look
Specification
| Item | Specification |
|---|---|
| Item | Details |
| MCU | Nordic nRF52840 (ARM Cortex-M4, up to 64MHz) |
| LoRa Chip | Semtech SX1262 (863–928MHz) |
| Wireless | Bluetooth 5 / 5.1 / 5.2 BLE |
| GNSS | Built-in GPS positioning support |
| Display | Optional 1.14" TFT color display (135×240) |
| Memory | 1MB Flash / 256KB RAM |
| Battery | 3000mAh rechargeable lithium battery (included) |
| Charging | USB Type-C / Solar / Li-ion input support |
| Expansion | UART / I2C / GPIO / GPS / antenna interfaces |
