ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display

Sale price $59.99 USD

1. Meshtastic LoRa transceiver designed for outdoor communication, GPS tracking, and IoT mesh networking.
2. Powered by the Nordic nRF52840 chipset and SX1262 LoRa module。

3. Delivers stable long-range connectivity with ultra-low power consumption, making it ideal for off-grid communication and emergency scenarios.

4. Pre-configured firmware that compatible with Meshtastic. Supports GPS / GLONASS / BeiDou / QZSS

5. High perforamnce with 1.54" E-Ink Display, 1200mAh battery and 5.6μA standby consumption.

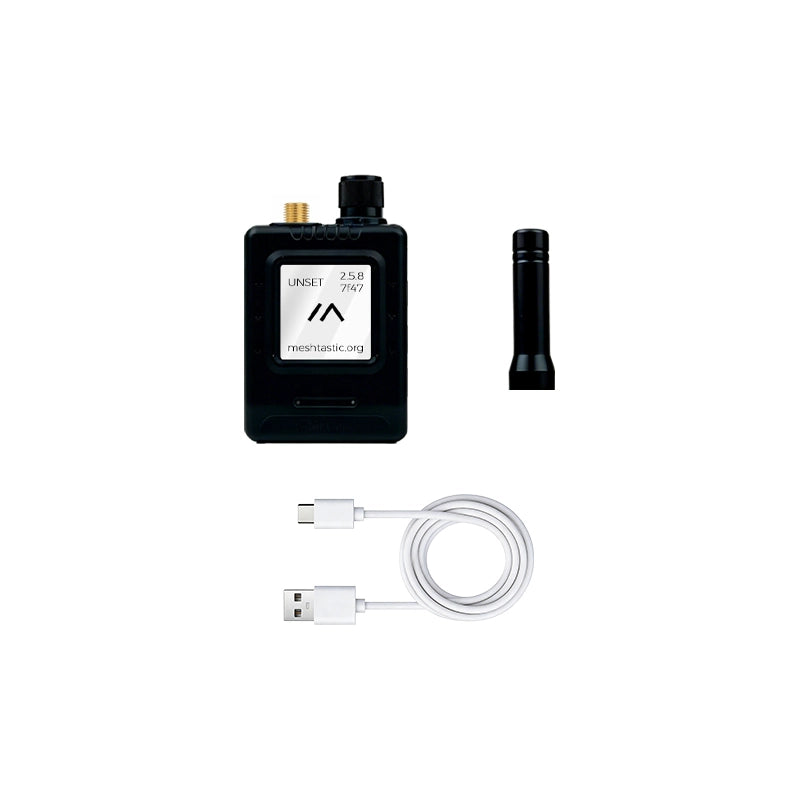

In The Box: 1 × ThinkNode M1 LoRa Meshtastic Device, 1 × USB Type-C Cable, 1 × LoRa Antenna, 1 × User Manual

Frequency: 868 MHz
ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display

ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display

ThinkNode M1 Meshtastic Device | Off-Grid Communication

Compact, rugged off-grid communication hub for outdoor adventures, fieldwork and emergencies. Powered by nRF52840 with Bluetooth and pre-flashed Meshtastic firmware, it uses the SX1262 LoRa chip for reliable long-range signal transmission and works seamlessly with the official Meshtastic App for device setup, messaging, location sharing and data management.
Features multi-constellation GPS for precise global positioning, a 1.54" low-power EPD display for real-time status updates, and a 1200mAh battery delivering 48+ hours of continuous use (ultra-low 5.6μA deep sleep). External LoRa antenna ensures maximum signal stability and range.

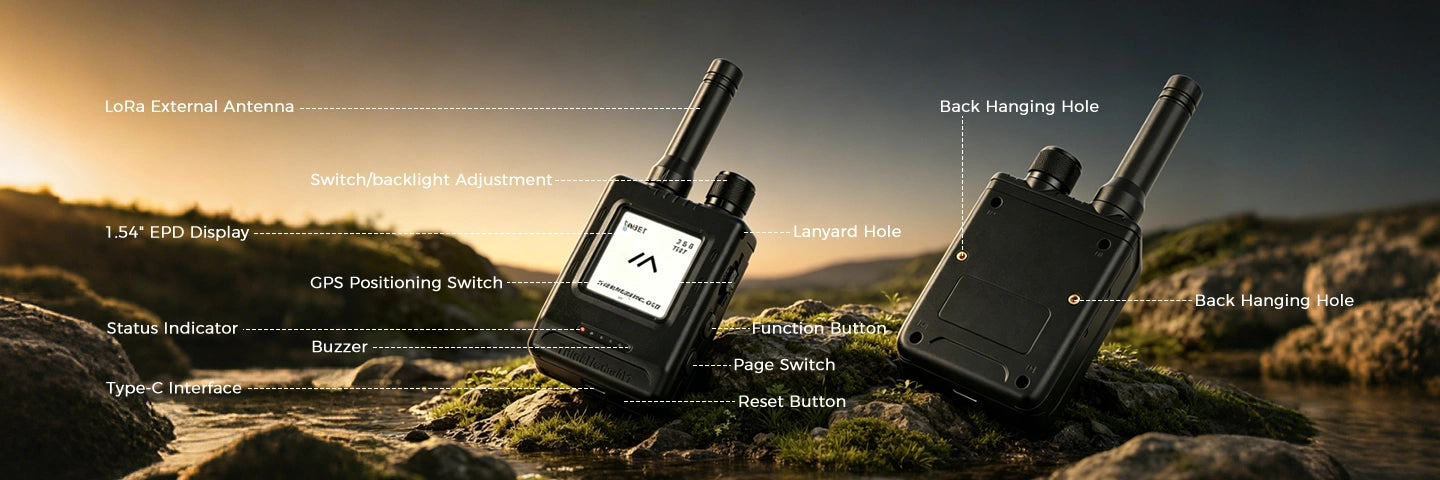

Take a Closer Look

ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display 2
ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display 3
ThinkNode M1 Lora Meshtastic Transceiver with GPS & 1.54 inch EPD Display 4

Specification

Item Specification
Processor
Nordic nRF52840 (ARM Cortex-M4, 64MHz)
LoRa Chip
SX1262
Memory
256KB RAM + 3MB Flash + 2MB external Flash
Display
1.54" E-Ink, 200×200, SSD1681
Wireless
Bluetooth 5 (BLE) + LoRa 868/915MHz
GPS
GPS / GLONASS / BeiDou / QZSS
Interface
USB Type-C + RP-SMA antenna
Battery
1200mAh rechargeable lithium battery
Power Consumption
~85mA active / ~5.6μA standby

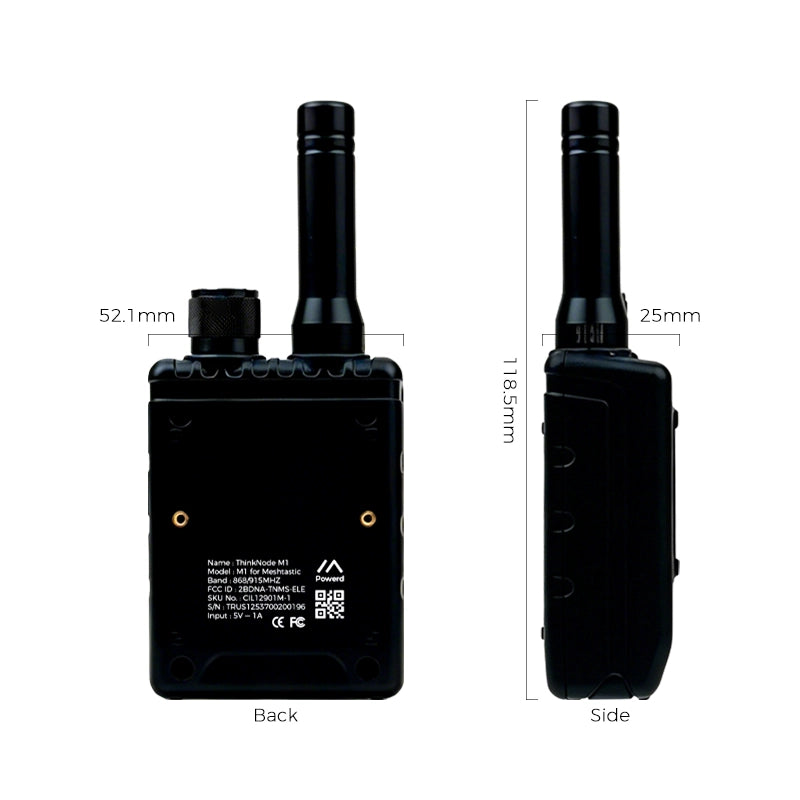

Size
82 × 51.6 × 26.3 mm
Weight
58g (without case), 81g (with case)
Operating Temperature
-10°C to 50°C

Warranty & After-Sales

Many of our products are handcrafted, which may result in minor variations or imperfections. If you experience any quality-related issues withinone year of purchase, we will offer afull refund or a replacement shipment. Please contact our support team with photos or videos of the issue, and we will assist you accordingly.
