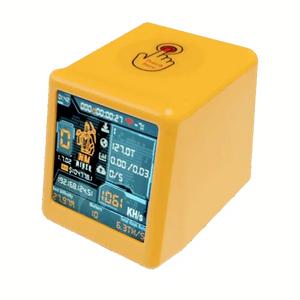

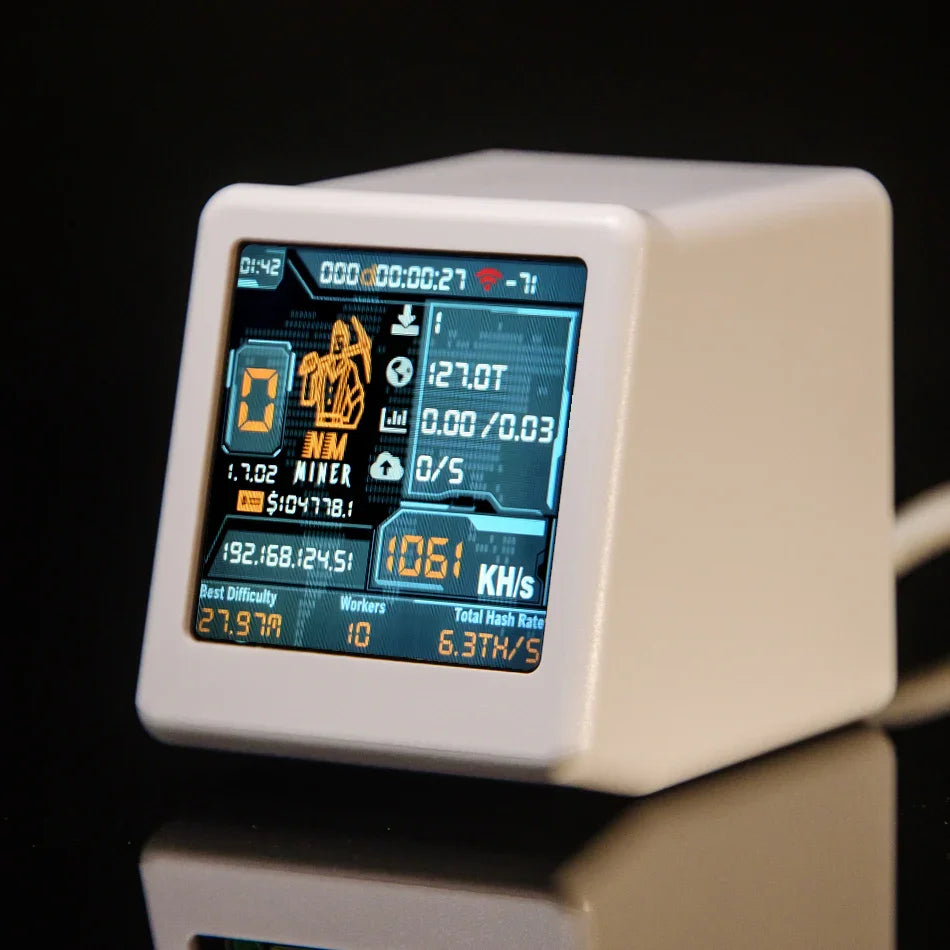

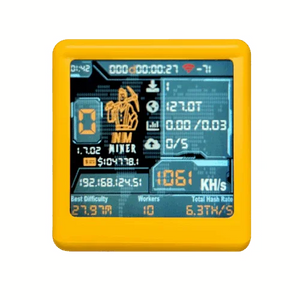

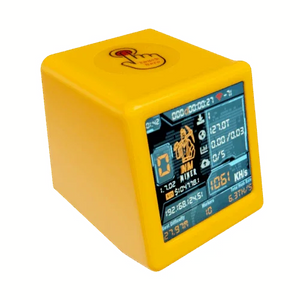

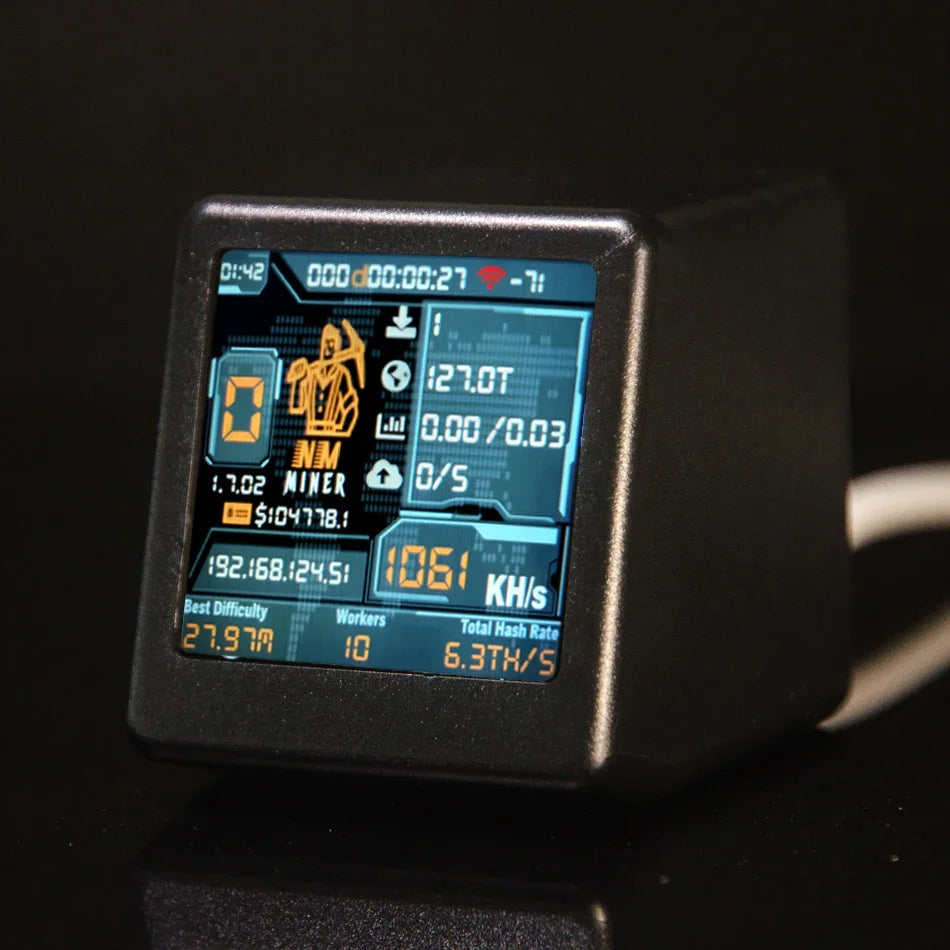

NMMiner NM-TV-154 ESP32 Embedded Display – 1.54" Smart Clock & IoT Node

Overview

The NM-TV-154 ESP32 Embedded Display is a compact 1.54-inch smart module designed for real-time system monitoring, IoT dashboards, and embedded UI applications. It integrates a low-power ESP32 platform with a TFT display, enabling real-time data visualization and standalone operation.

This device combines an embedded display interface with ESP32 wireless capability, making it suitable for development, experimentation, and smart device prototyping.

Key Features

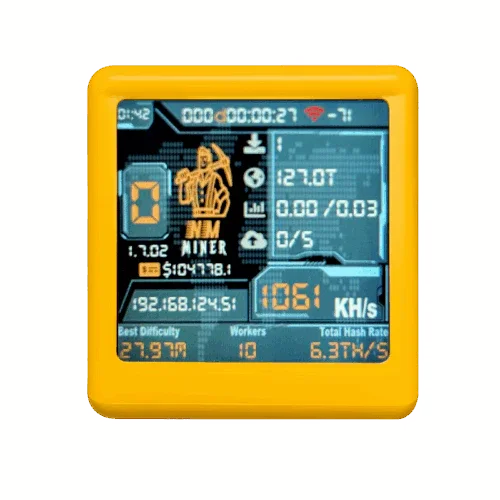

• 1.54" TFT Display – Real-time visualization of system status, network data, and UI elements.
• ESP32 Embedded Platform – Low-power Wi-Fi and Bluetooth-enabled MCU for IoT applications.
• Dual Function Interface – Supports both system monitoring dashboard and clock display mode.
• Standalone Operation – Runs independently without requiring a host computer.
• Low Power Design – Optimized for continuous operation with minimal energy consumption.
• Wireless Connectivity – Built-in 2.4GHz Wi-Fi and BLE support for IoT integration.
• Firmware Upgradable – Supports OTA or USB-based firmware updates.

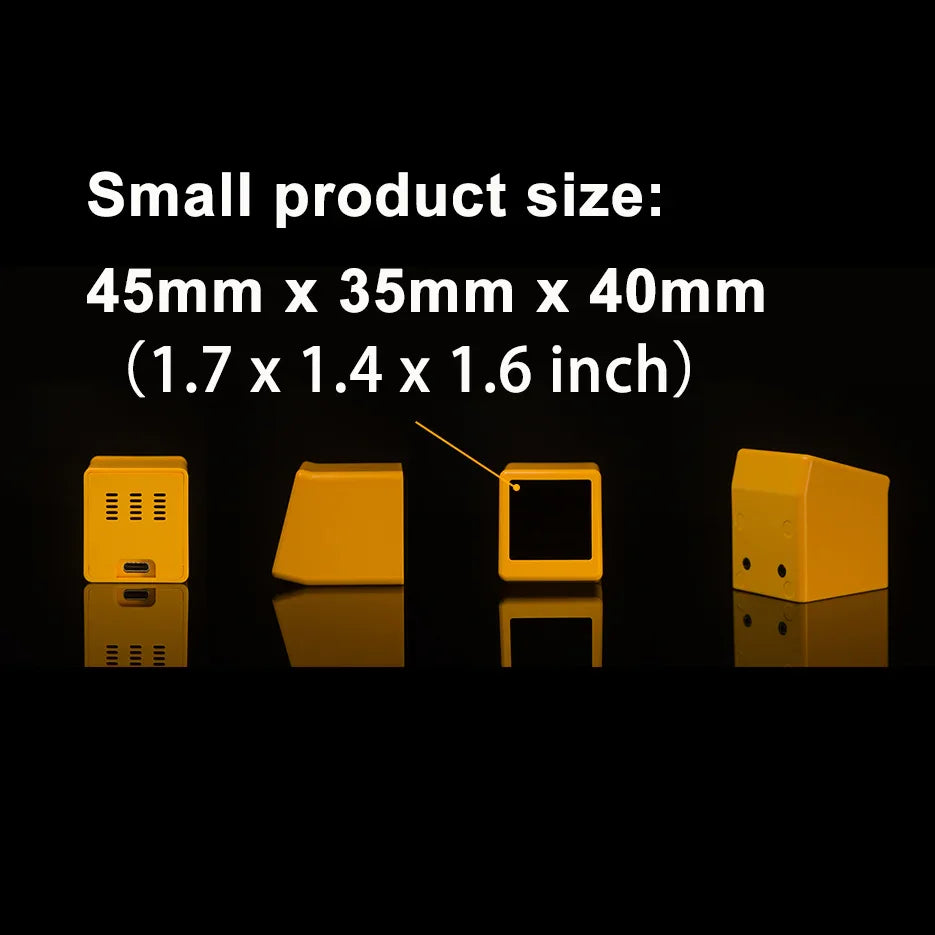

• Compact Form Factor – Designed for desktop, embedded, or portable installation.

Specifications

• Display: 1.54-inch TFT LCD
• Processor: ESP32 dual-core MCU
• Wireless: Wi-Fi 802.11 b/g/n, Bluetooth Low Energy
• Power Consumption: Low-power embedded operation (~0.8W typical)

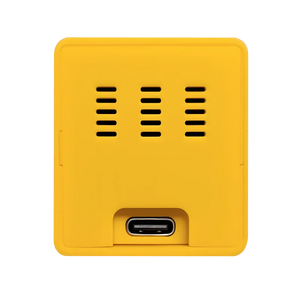

• Power Input: USB 5V
• Operating Modes: Dashboard mode / Clock mode
• Update Method: USB / OTA firmware upgrade
• Form Factor: Compact desktop embedded module

Applications

• IoT status dashboards
• Embedded system monitoring
• Smart desktop clock devices
• Educational electronics platforms
• Wireless sensor visualization systems

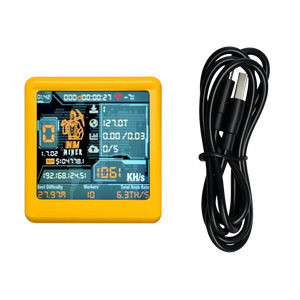

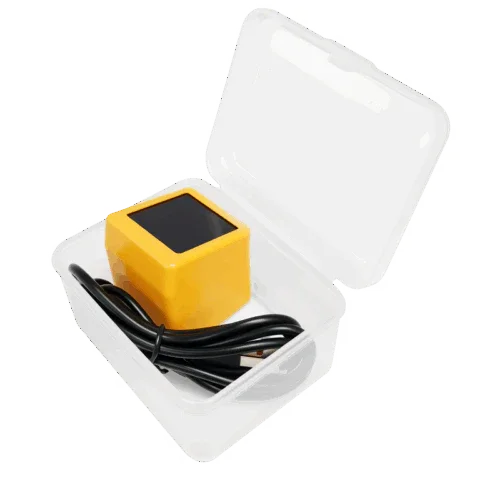

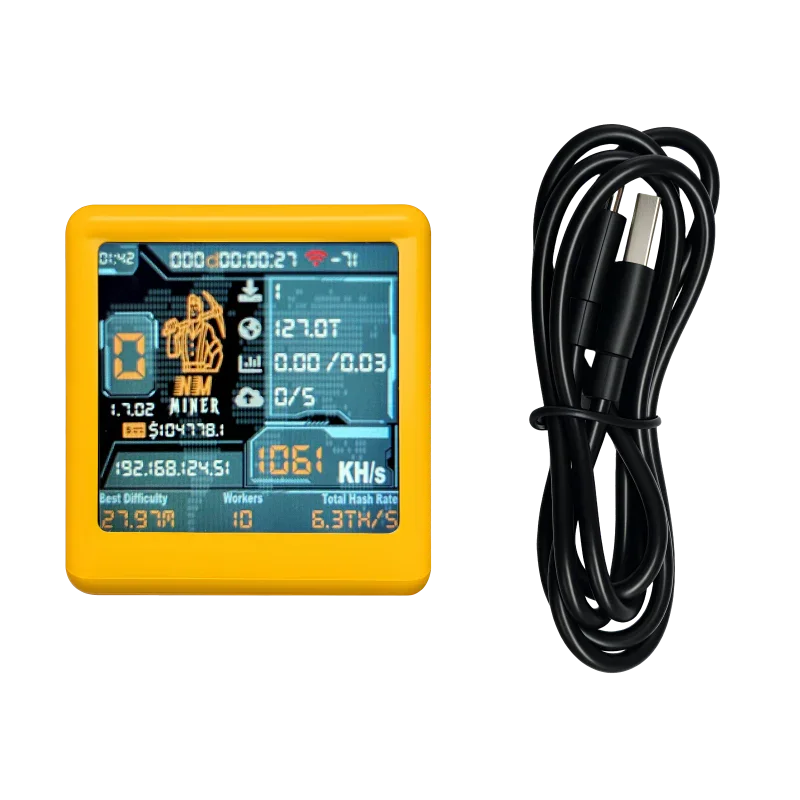

Package Includes

• 1 × NM-TV-154 ESP32 Display Module
• 1 × Pre-Flashed Firmware
• 1 × Quick Start Guide (Digital)
