Heltec WiFi LoRa 32 V4 ESP32-S3 SX1262 Meshtastic Compatible IoT Development Board

Sale price $25.99 USD

1. High-Performance ESP32-S3 Platform – Dual-core Xtensa LX7 processor for advanced IoT workloads

2. Long-Range LoRa Communication – SX1262 transceiver with high sensitivity and stable transmission

3. Multi-Protocol Connectivity – Supports Wi-Fi (802.11 b/g/n), Bluetooth 5.0 (LE & Mesh), and LoRa

4. Large Memory Resources – 16MB Flash + 2MB PSRAM for complex applications

5. GNSS Expansion Ready – SH1.25-8Pin interface for GPS module integration

6. Compact & Developer Friendly – Designed for rapid prototyping and embedded development

Model: With Screen + Antenna
Heltec WiFi LoRa 32 V4 ESP32-S3 SX1262 development board with accessories for IoT projects

Heltec WiFi LoRa 32 V4 ESP32-S3 SX1262 Meshtastic Compatible IoT Development Board

Heltec LoRa 32 V4 LoRa Development Board

The Heltec WiFi LoRa 32 V4 is a high-performance IoT development board built around the ESP32-S3R2 dual-core processor and SX1262 LoRa transceiver.

Quality ESP32 S3 board integrates Wi-Fi, Bluetooth 5 (LE & Mesh), and long-range LoRa communication into a compact, low-power platform designed for next-generation IoT and Meshtastic applications.

With enhanced processing capability, optimized power management, solar input support, and GNSS interface expansion, this board is ideal for developers building scalable wireless sensor networks, outdoor tracking systems, and industrial IoT solutions.

Up to 28 dBm transmission power (high-power version). Deep sleep consumption below 20μA. USB Type-C, lithium battery, and solar input power supply methods support.



Kindly Note

This is the WiFi LoRa 32 V4 standard version. V4 is compatible with most V3 applications, but some LoRa transmission parameters may require adjustment due to upgraded RF performance.



Packing List

  • 1 × Heltec WiFi LoRa 32 V4 Board
  • 1 × LoRa Antenna
  • 2 × SH1.25 Connector Cables (Battery & Solar)
  • 2 × 2.54 Pin Headers (18-pin)
  • 2 × 2.54 Pin Headers (2-pin)



Docs & Resources



Take a Closer Look

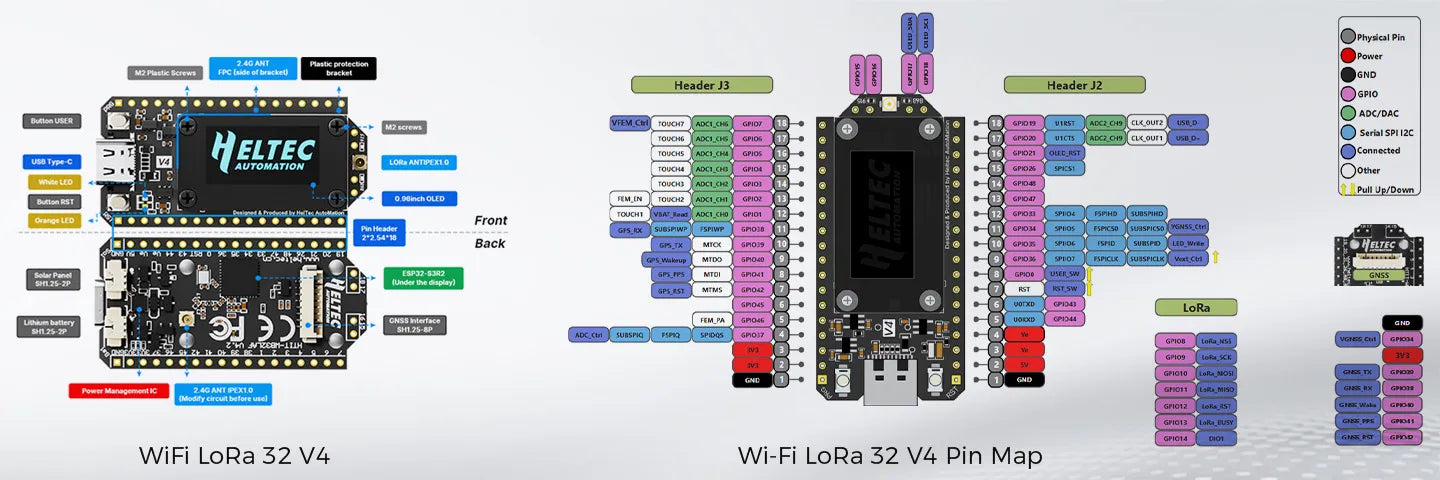

Heltec WiFi LoRa 32 V4 ESP32-S3 SX1262 Meshtastic Compatible IoT Development Board 1

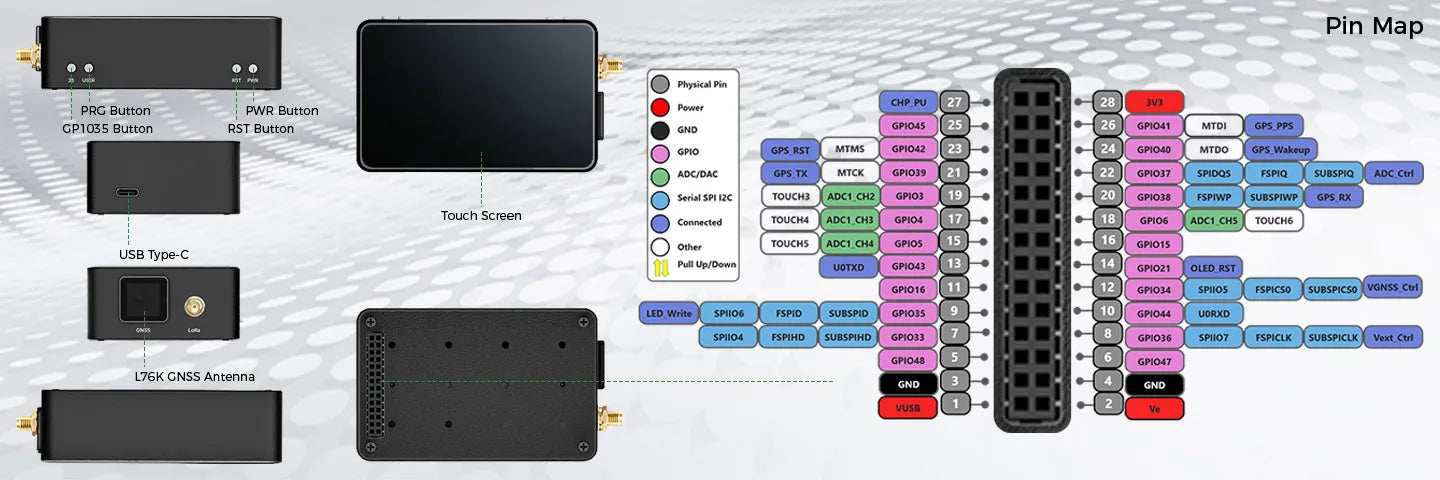

Heltec WiFi LoRa 32 V4 ESP32-S3 SX1262 Meshtastic Compatible IoT Development Board 2

Specification

Item Specification
MCU
ESP32-S3R2 (Xtensa LX7 dual-core)
LoRa Chip
SX1262
Frequency Range
863–928MHz (High Power) / 433–928MHz (Low Power)
Max TX Power
Up to 28 dBm
Receiving Sensitivity
-137 dBm @ SF12, BW=125KHz
Wi-Fi
802.11 b/g/n (up to 150Mbps)
Bluetooth
Bluetooth 5.0 (BLE & Mesh)
Memory
16MB Flash / 2MB PSRAM / 512KB SRAM
Interfaces
USB Type-C, GNSS port, battery & solar input, IPEX antenna
Battery
3.3V–4.4V lithium battery
Operating Temperature
-20°C ~ 70°C
Dimensions
51.7 × 25.4 × 10.7 mm
