1.28/ 2.1 inch ESP32 Rotary Display Round Knob with Touch Screen compatible with Arduino

Sale price $36.99 USD

1. Dual Input Interface – Combines capacitive touchscreen with rotary encoder for flexible human-machine interaction.

2. High-Performance ESP32-S3 – Dual-core LX7 processor up to 240MHz with PSRAM and Flash for advanced UI processing.

3. IPS Capacitive Display – 1.28" / optional 2.1" 240×240 full-angle IPS screen for clear visual output.

4. Wireless Connectivity – Built-in 2.4GHz Wi-Fi and Bluetooth 5.0 for IoT and remote control applications.

5. Expandable Hardware Interface – UART, I2C, FPC connectors, and GPIO access for system integration.

Version: 1.28" 240×240

Product Description

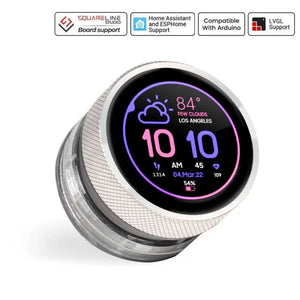

CrowPanel 1.28" ESP32 Rotary Display – HMI Touchscreen with Rotary Encoder

Overview

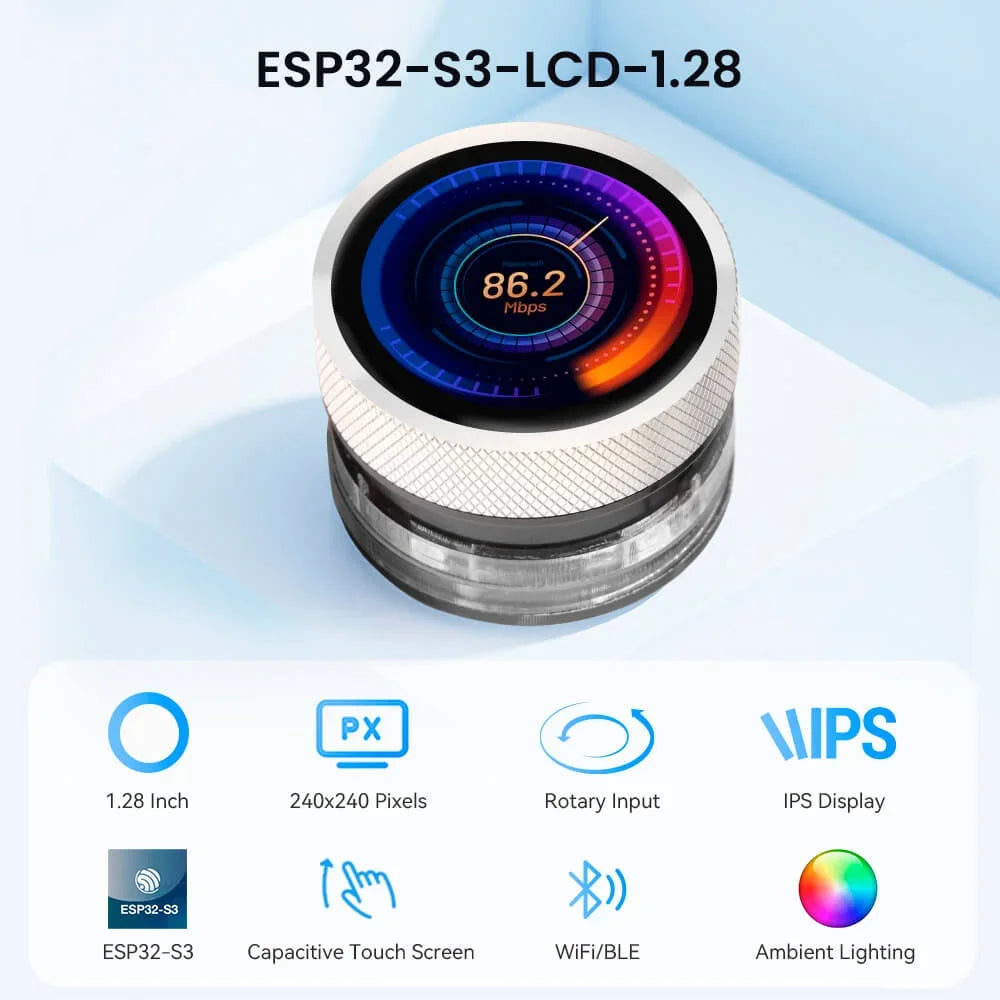

The CrowPanel 1.28" ESP32 Rotary Display is a compact HMI (Human-Machine Interface) module designed for smart control panels, IoT devices, and embedded UI applications. It integrates an ESP32-S3 high-performance processor, a 240×240 IPS capacitive touchscreen, and a rotary encoder for precise and intuitive user interaction.

With support for both graphical touch input and physical knob control, this device provides a flexible interface solution for modern embedded systems and smart device development.



Key Features

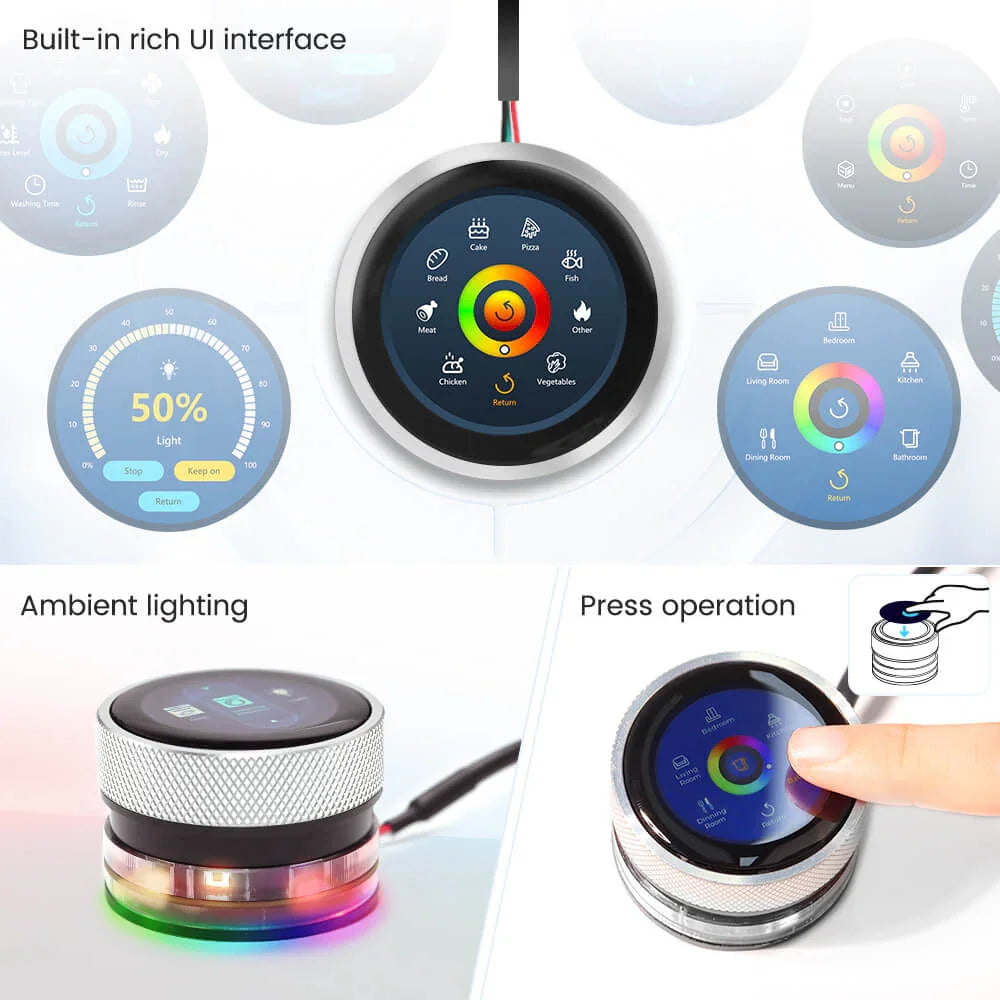

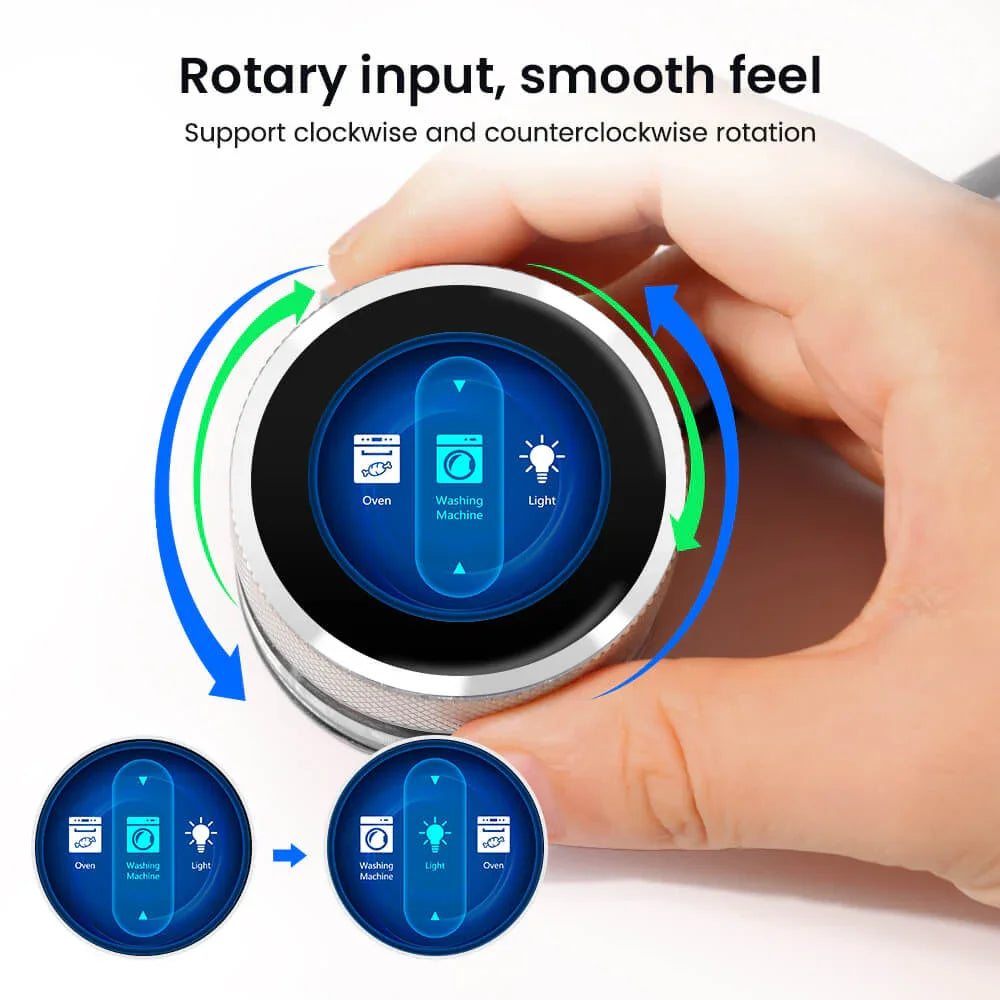

  • Integrated Rotary Encoder – Supports rotation and press actions for precise control input.

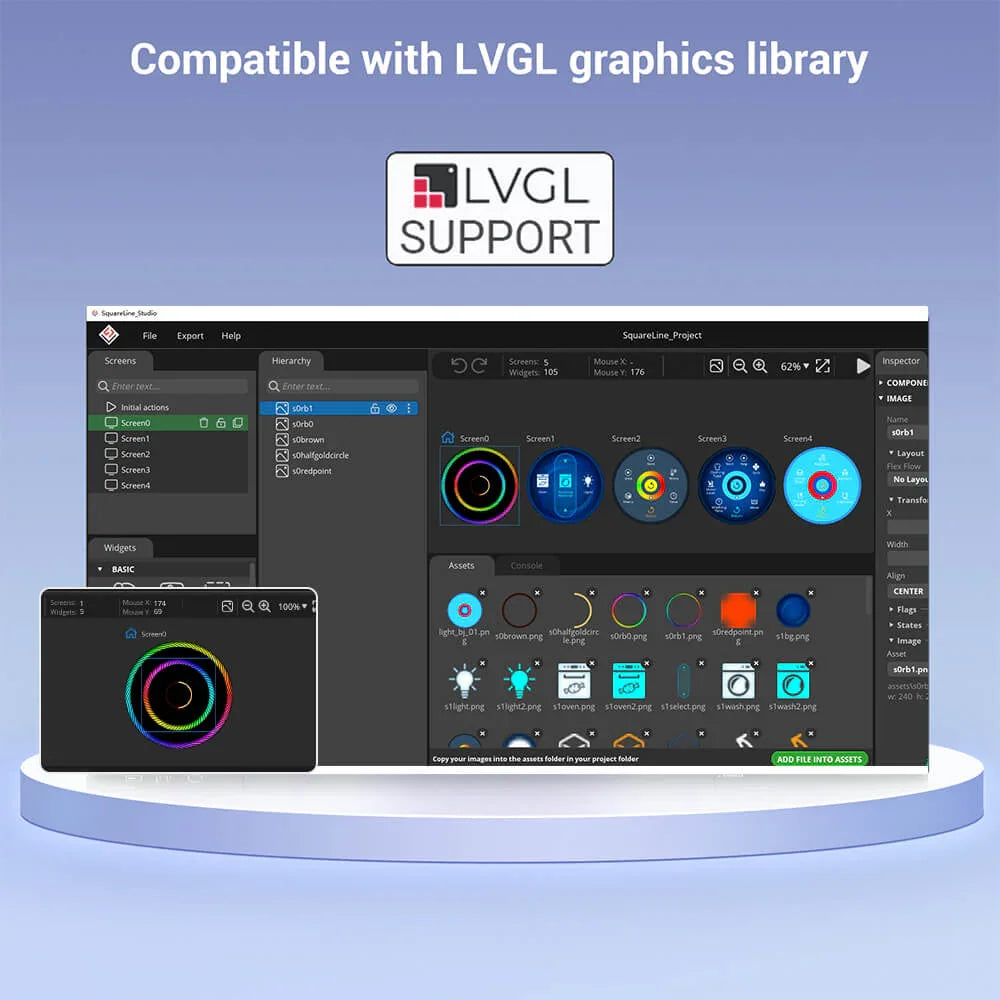

  • LVGL UI Support – Compatible with LVGL, Arduino, ESP-IDF, MicroPython, and PlatformIO.
  • Compact Industrial Design – Aluminum alloy + acrylic enclosure suitable for embedded installations.



Applications

  • Smart home control panels
  • Industrial HMI interfaces
  • IoT device dashboards
  • Embedded UI development
  • Educational electronics projects
  • Custom controllers (knobs, instruments, automation systems)



Package Includes

  • 1 × CrowPanel 1.28" ESP32 Rotary Display
  • 1 × 4-pin Dupont Cable
  • 1 × USB / MX1.25 Power Cable

Specification

Item Specification
Product Name
ESP32 Rotary Display Round Knob
Display

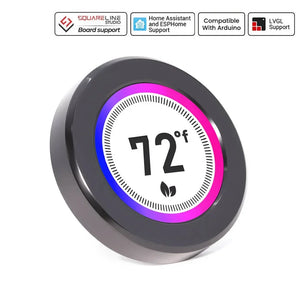

1.28" IPS capacitive touchscreen (240×240), optional 2.1"
Processor
ESP32-S3 dual-core LX7, up to 240MHz
Memory
8MB PSRAM, 16MB Flash
Wireless
2.4GHz Wi-Fi, Bluetooth 5.0
Input

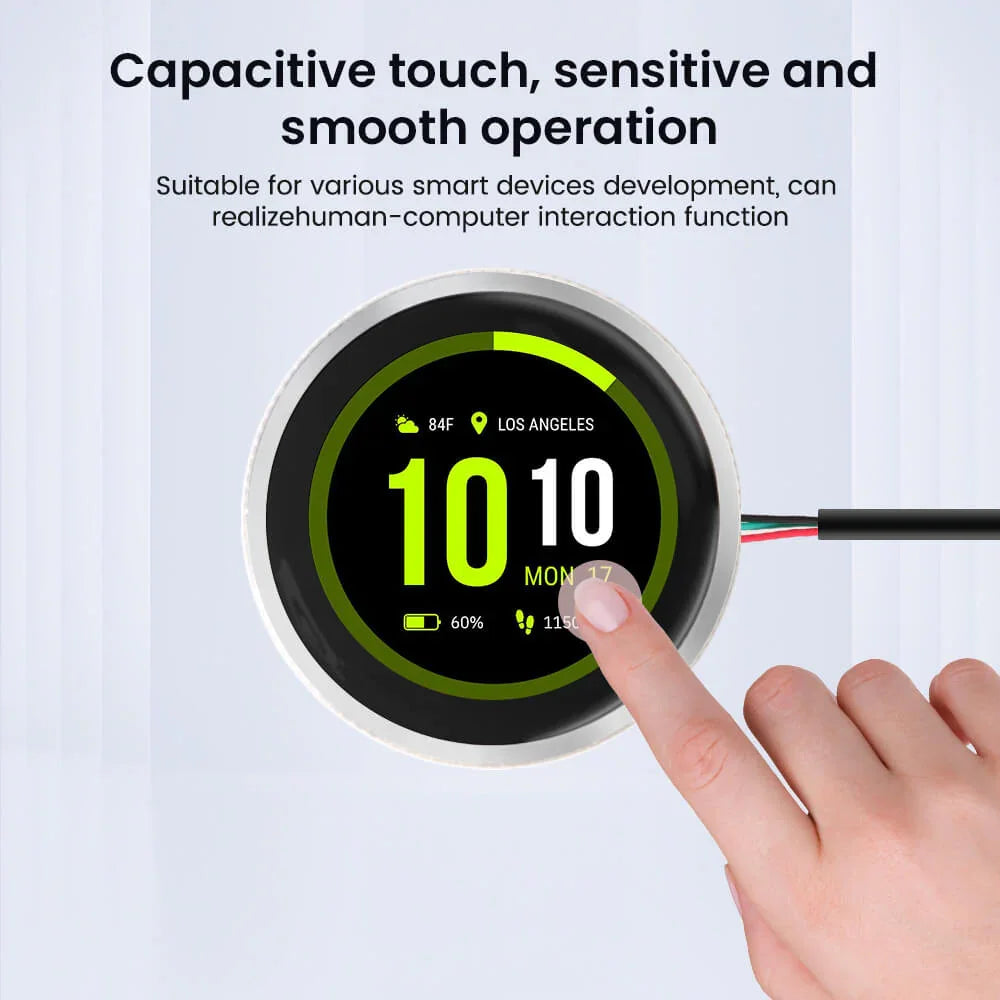

Capacitive touch + rotary encoder (press/rotate)
Interfaces

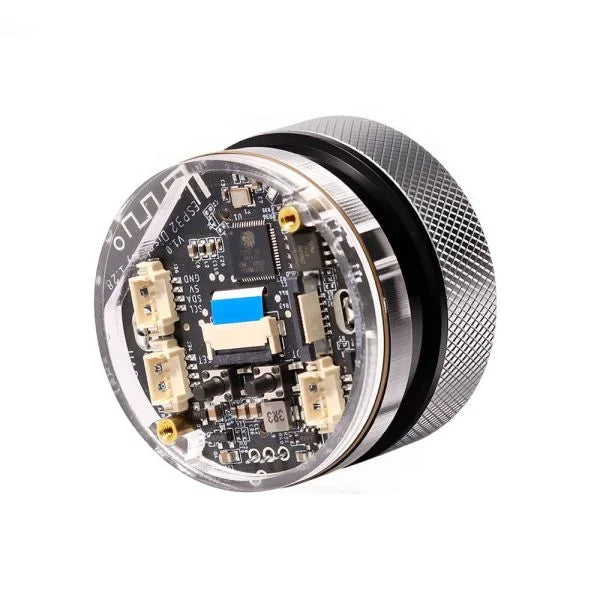

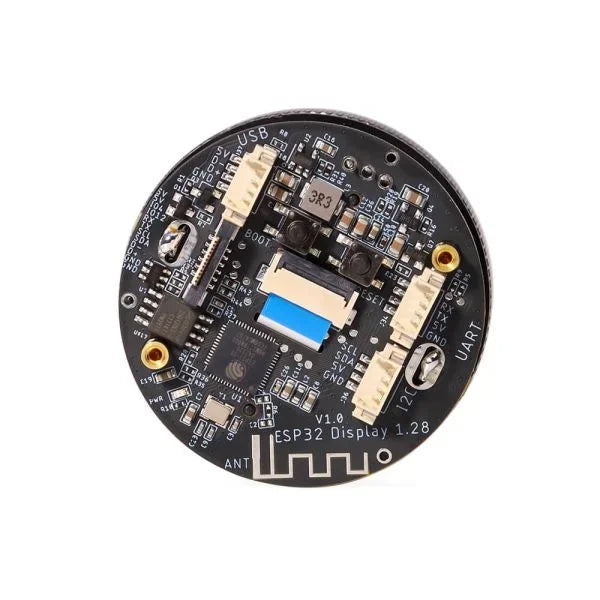

UART, I2C, GPIO, FPC connector
Power Input
5V/ 1A
Operating Temperature
-20°C to 65°C
Dimensions
48 × 48 × 33 mm
Enclosure
Aluminum alloy + plastic + acrylic
Weight
50g
