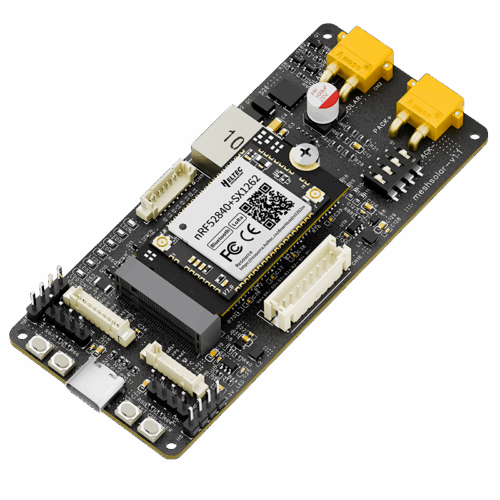

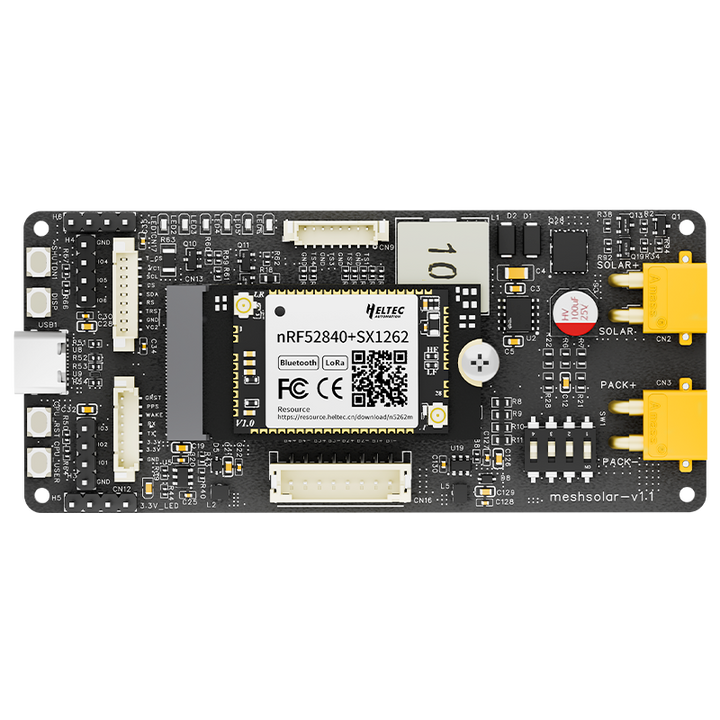

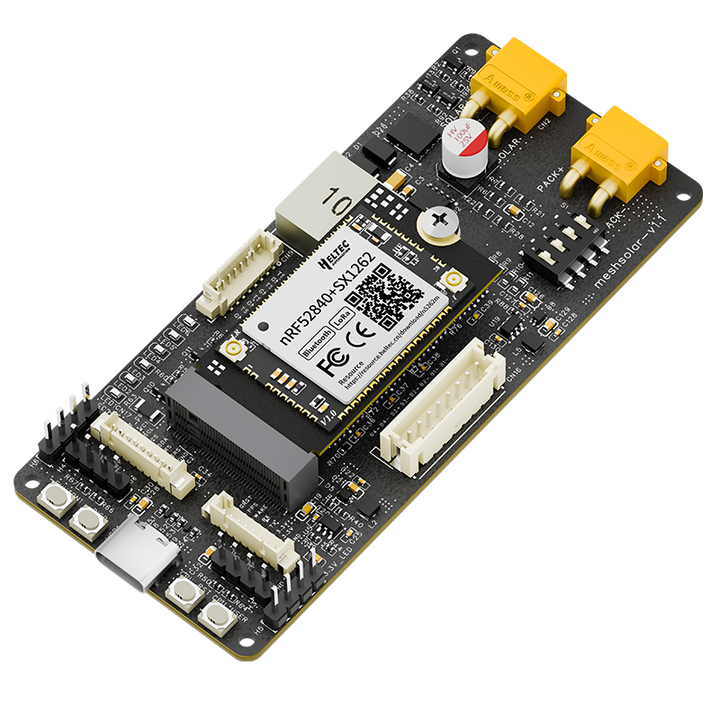

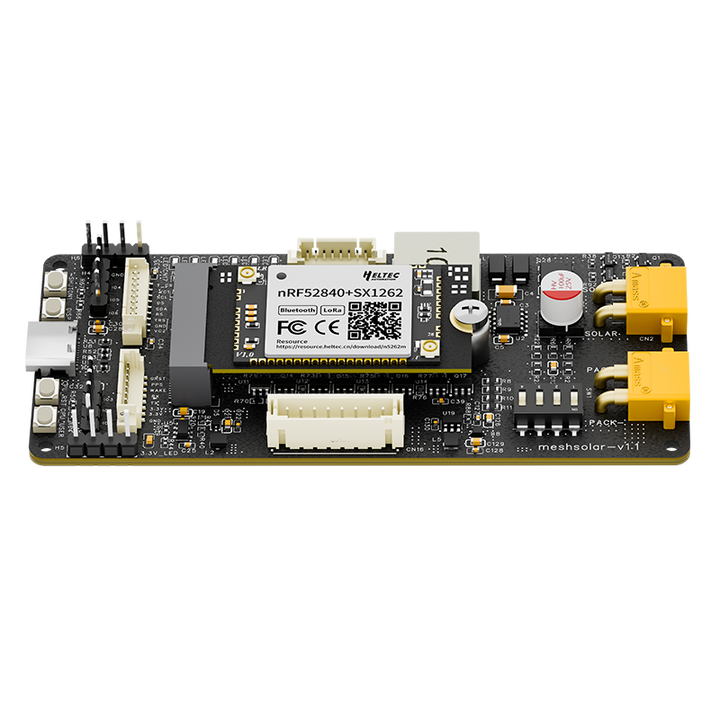

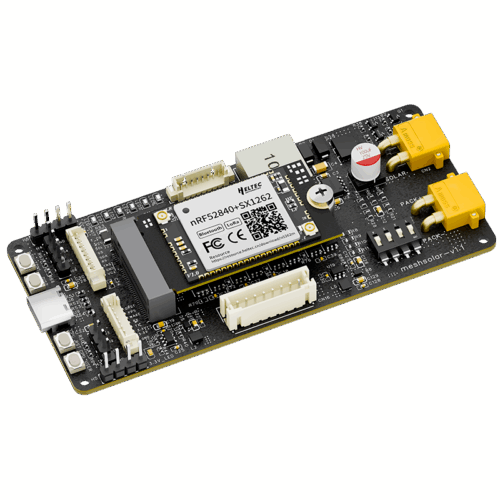

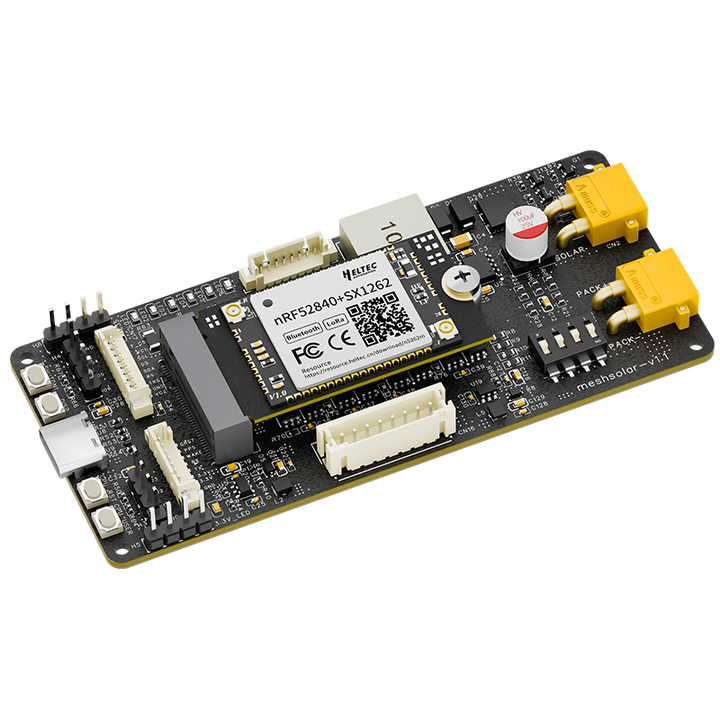

MeshSolar Integrated Power Management & Communication System
Introducing MeshSolar, a robust integrated power management and communication solution designed for demanding outdoor and off-grid IoT applications. Combining an intelligent solar MPPT-enabled BMS Power Management Board with a BLE + LoRa Communication Control Mainboard, it delivers reliable, efficient energy handling and long-range connectivity for remote deployments.
Key Features:
- Advanced Battery Management – Supports 1–4 lithium cells or battery packs with overcharge, over-discharge, short-circuit, over-temperature protection, and cell balancing.
- Multi-Mode Charging – 18–25 V Solar MPPT charging, USB PD3.0 fast charging, and 18–25 V external DC charging for maximum flexibility.
- Web-Based Configuration – Easily adjust charging and discharging parameters via an intuitive web interface.
- Dual-Mode Wireless Communication – Integrated Bluetooth 5 and LoRa (up to 10 km range, 21 dBm TX power) for reliable, long-distance data transmission.
- Modular Expansion Support – M.2 interface with hardware expansion options for displays, GPS modules, and general-purpose I/O.
- Low-Power Design – Optimized for long-term, stable operation in off-grid and solar-powered systems.
- Fully Compatible with Meshtastic – Seamlessly integrates with the open-source Meshtastic ecosystem for flexible mesh networking solutions.
Specifications:
- Battery Configuration: 1–4 cells (Li-ion, LiPo, LiFePO4 supported)
- Input Voltage: 18–25 V
- Charging Current: ≤1.5 A with balanced charging at 4.2 V, 100 mA
- Protection Features: Overcharge (4.3 V), Overcurrent (2 A), Undervoltage (2.5 V)
- Interfaces: XT30 (solar & pack), PH2.0-8P (battery), MX1.25-8P (thermistor), USB Type-C expansion
- Dimensions: 43 × 97 × 11 mm (main board), 30 × 20 × 3.2 mm (HT-N5262M module)
- Operating Environment: -40 ~ 85 ℃, 90% RH (non-condensing)
Communication & Control:
- Main Control Module: HT-N5262M (nRF52840 + SX1262)
- Wireless Communication: Bluetooth 5, BLE Mesh, LoRa (up to 10 km, 21 ± 1 dBm)
- Interface: M.2 for MCU control board
- Expansion Interfaces: Displays (MX1.25-9P), GNSS (MX1.25-8P), USB-C for additional modules
Typical Applications:
- Environmental Monitoring Systems
- Smart Agriculture & Livestock Management
- Asset Tracking and Remote Management
- Outdoor Emergency and Disaster Response Systems
- Solar Street Lighting Control
- Industrial Infrastructure Monitoring
- Open-source Meshtastic Projects
Note: Standard packing includes MeshSolar main board, NTC resistor, USB cable, battery interface cable, XT30 interface cables, 2.4G FPC antenna, LoRa antenna, GPS adapter cable, and display expansion cable. Compatible with solar panels providing 18–25 V output.
| LoRa Band |
860 - 870 MHZ, 902 - 928 MHZ |
|---|---|
| Battery Type Supported |
Lithium-ion lithium polymer, Lithium iron phosphate |
