Meshnology N40 - ESP32 Expansion Board for ESP32/ESP32-S3 Core Modules

Sale price $12.99 USD

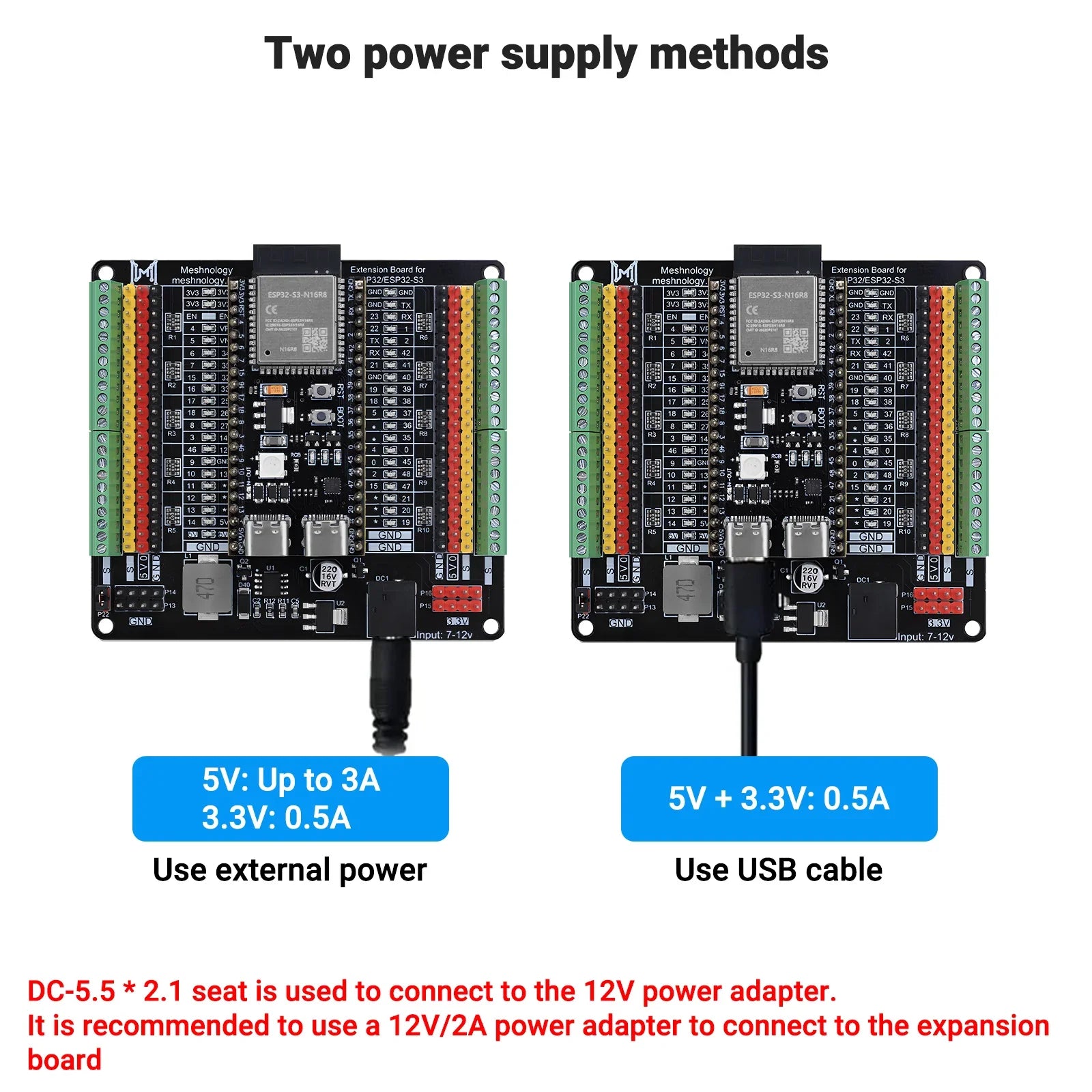

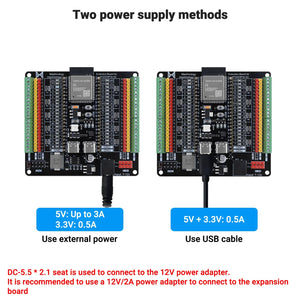

1. Wide Power Input Support – DC 5.5×2.1 interface, supports 7–12V input (recommended 12V/2A stable power supply).

2. Full IO Breakout Design – 2.54mm headers expose all ESP32 / ESP32-S3 GPIO, power, and reset pins.

3. Industrial Screw Terminals – KF terminal blocks for secure and vibration-resistant wiring connections.

4. Integrated Level Shifting – Built-in TI TXS0108EPWR high-speed level shifter (up to 60 Mbps).

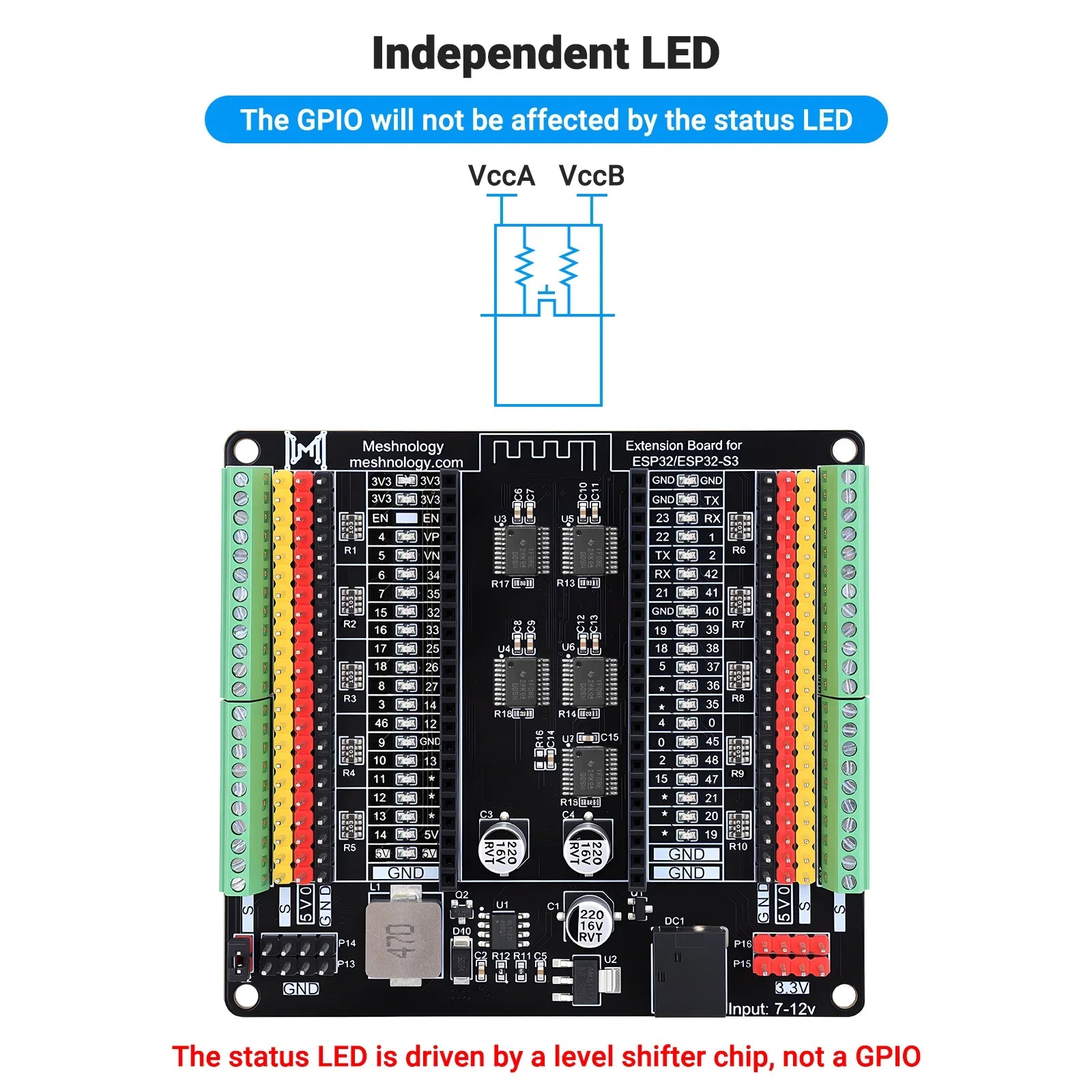

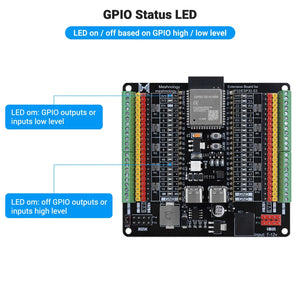

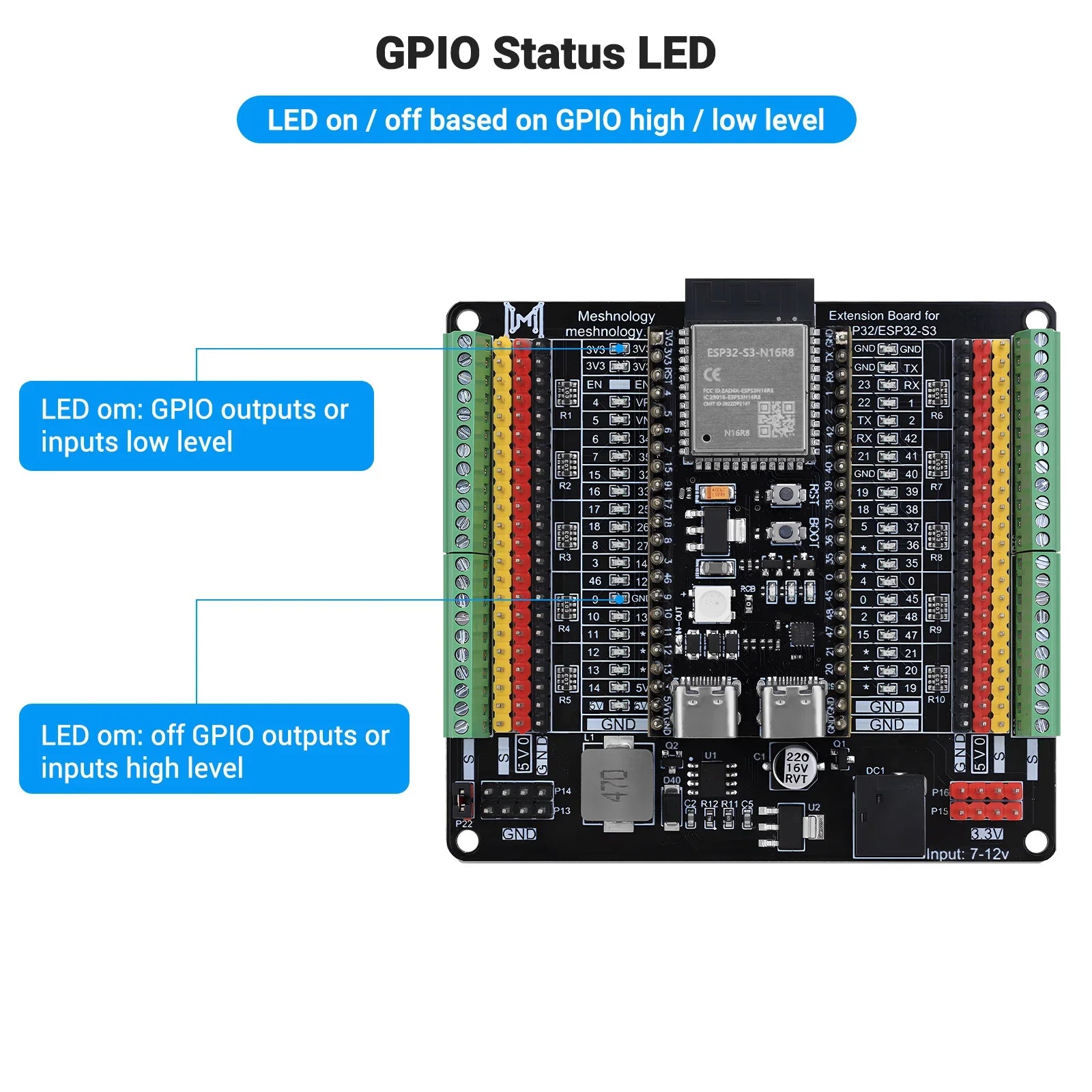

5. Real-Time IO Indicators – Onboard LED indicators for instant GPIO status monitoring.

6. Developer-Friendly Layout – Clean pin mapping optimized for debugging and expansion.

Size: 1 PCS
Meshnology N40 - ESP32 Expansion Board for ESP32/ESP32-S3 Core Modules

Meshnology N40 - ESP32 Expansion Board for ESP32/ESP32-S3 Core Modules

Meshnology N40 ESP32 Development Board

1. The N40 ESP32 Expansion Board is a professional-grade development and prototyping platform designed to simplify ESP32 and ESP32-S3 hardware integration. I
2. It provides full GPIO breakout access, stable power management, and industrial-friendly wiring options, making it ideal for rapid prototyping, testing, and deployment.
3. Whether used for IoT development, embedded system debugging, or production-level wiring, the N40 significantly improves accessibility and reliability of ESP32-based projects.

Kindly Note

The N40 ESP32 development board is currently out of stock. Orders placed after March 30 will be treated as pre-orders. The next shipment is expected to arrive around April 20.

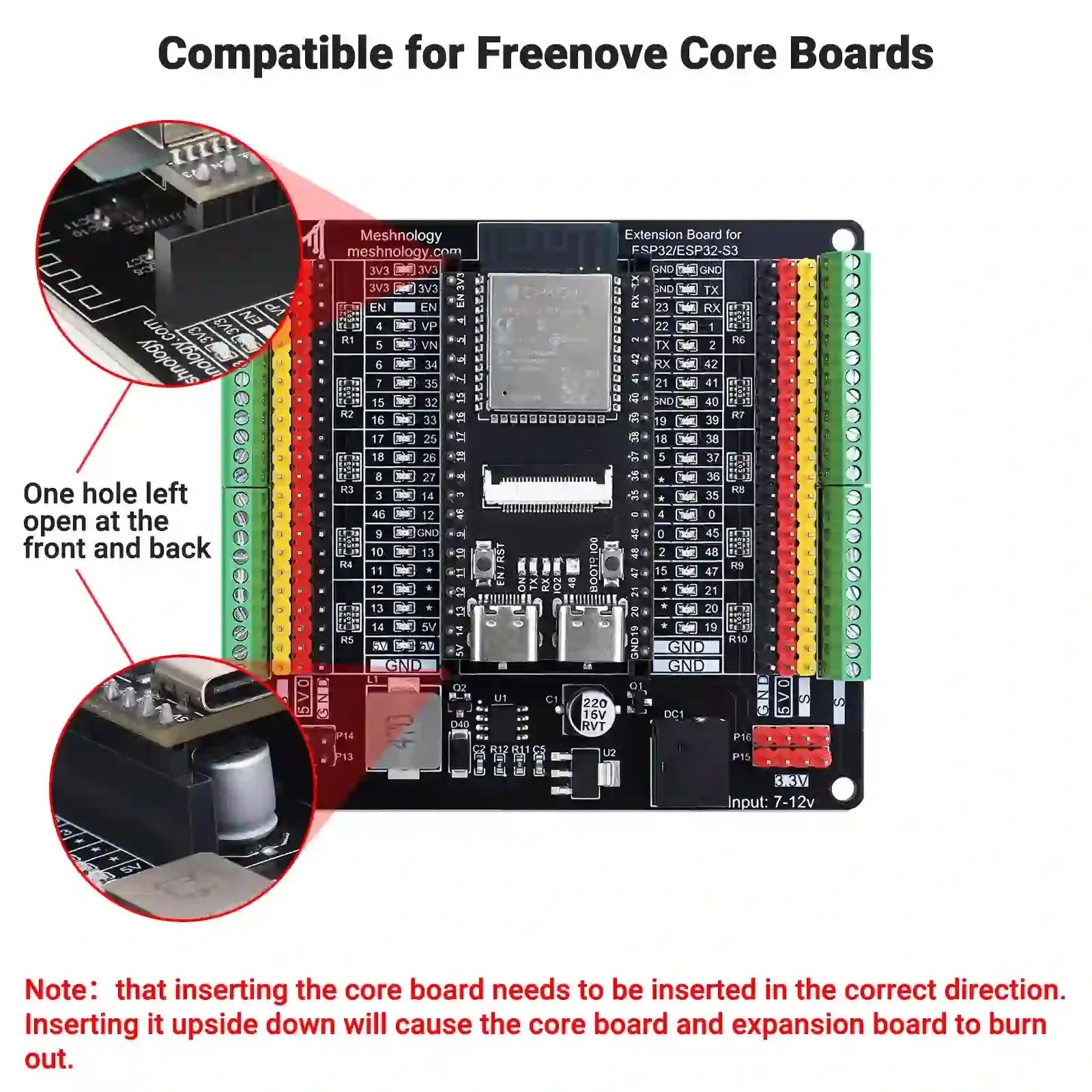

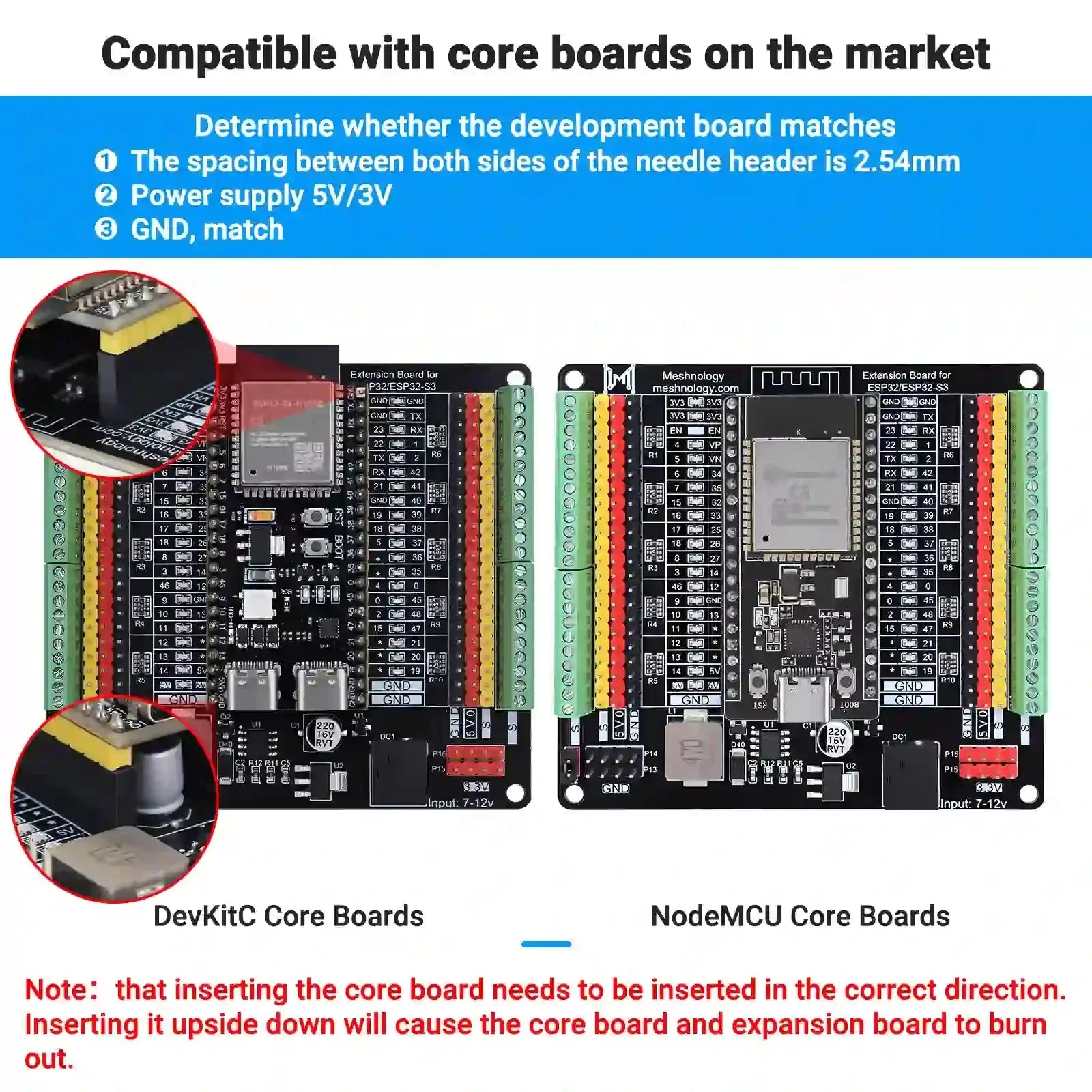

Core board options are optional and may vary depending on configuration. Please confirm compatibility before purchase.

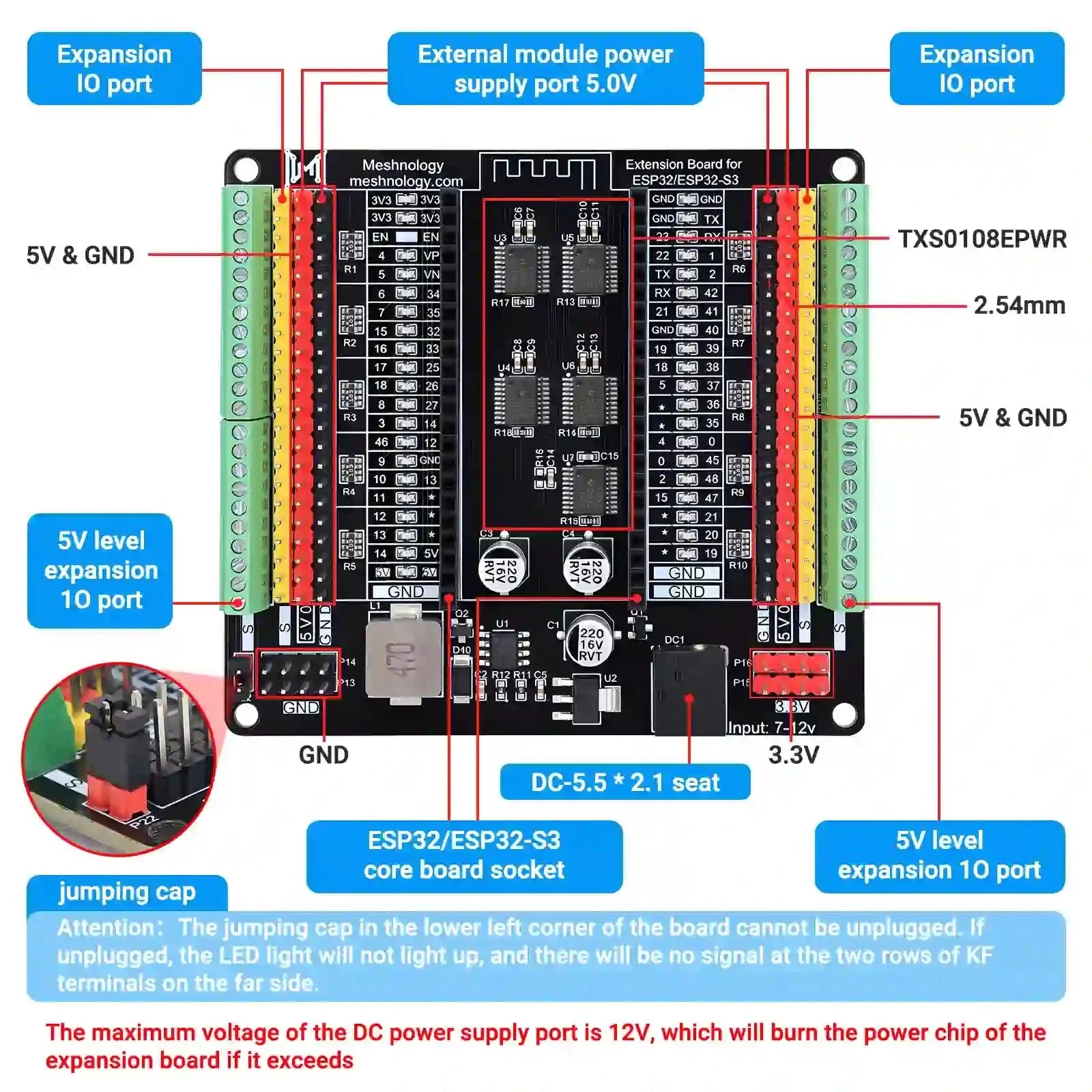

IO Expansion Layout

  • J1 / J3 / J9: Left-side GPIO, power, and enable signal breakout
  • J2 / J4 / J10: Right-side GPIO, communication, and system control pins



Applications

  • ESP32 / ESP32-S3 rapid prototyping
  • IoT device development and debugging
  • Industrial control system wiring
  • Sensor integration and expansion testing
  • Embedded system education and development



Package Includes

  • 1 × N40 ESP32 Breakout Board
  • 1 × 12V / 2A Power Adapter
  • Optional: ESP32 WROOM Core Board
  • Optional: ESP32-S3 WROOM Core Board
  • Optional: YD-ESP32-S3 N16R8 Core Board





Specification

Item Specification

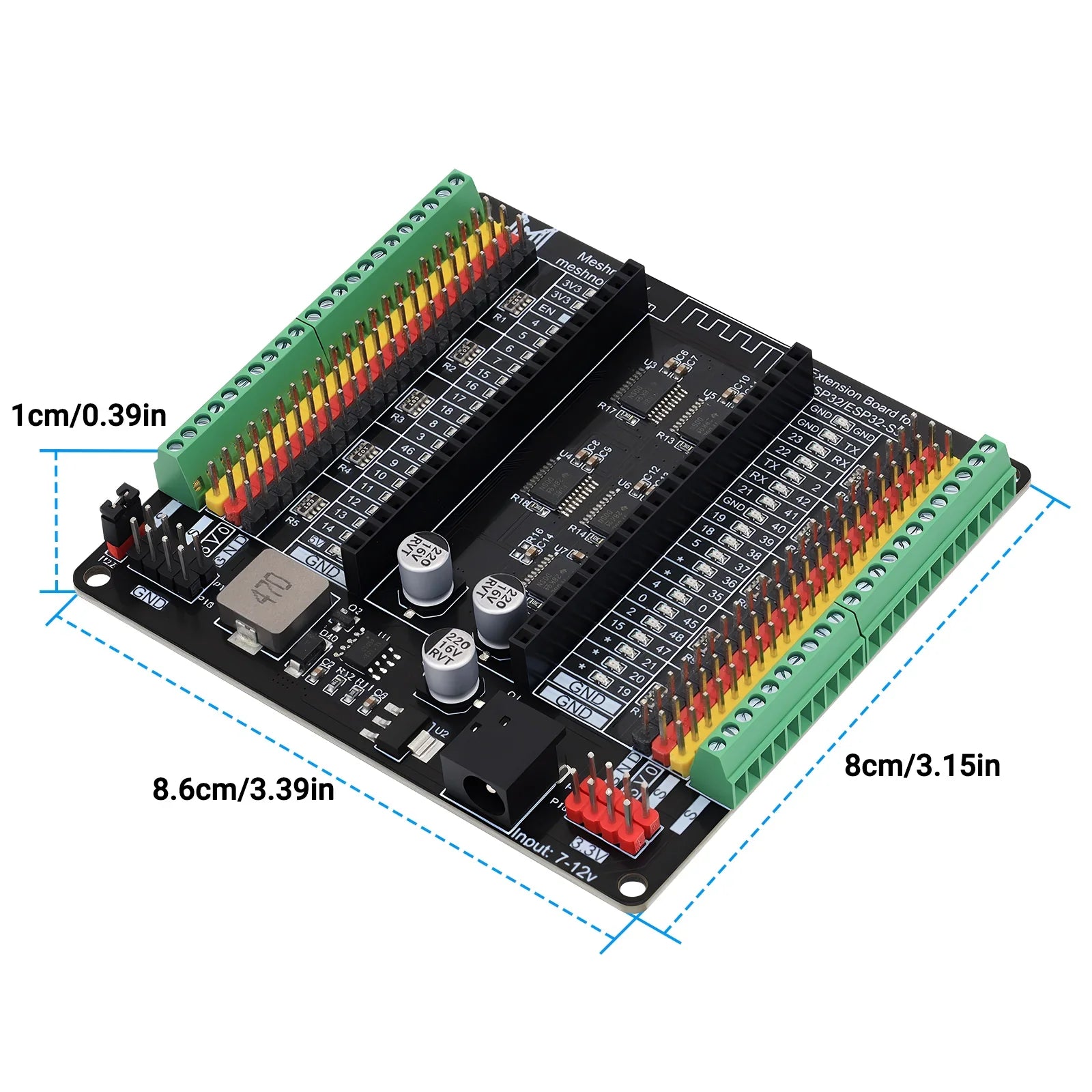

Board Dimensions
87.0 × 80.0 × 12.0 mm
Mounting Hole Spacing
80.2 × 73.2 mm (3 mm standard screws)
Operating Temperature
-20°C ~ 70°C
Power Input
DC 5.5×2.1, 7–12V / 2A
IO Interface
2.54mm pitch headers for GPIO / power / reset
Terminal Block
2.54mm KF screw terminals for direct wiring
Level Shifter
TI TXS0108EPWR (high-speed bidirectional)
Indicators
Per-channel IO status LEDs

Warranty & After-Sales

Many of our products are handcrafted, which may result in minor variations or imperfections. If you experience any quality-related issues withinone year of purchase, we will offer afull refund or a replacement shipment. Please contact our support team with photos or videos of the issue, and we will assist you accordingly.
