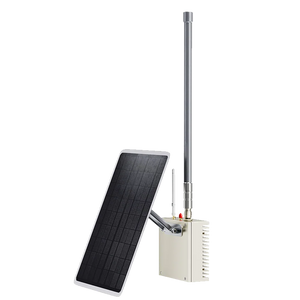

MeshTower S1 Solar-Powered Off-Grid Meshtastic Communication Node Support LoRa & Blutooth
1. Solar-Powered Off-Grid Operation – 18V solar input for continuous energy harvesting.
2. High-Capacity Battery System – 3 × 2800mAh lithium batteries for extended runtime.
3. Dual Connectivity – LoRa (SX1262) + BLE (nRF52840).
4. SMA External Antenna Support – Enhanced signal range and stability.
5. IP65 Rugged Enclosure – Waterproof aluminum alloy housing.
6. Wide Temperature Range – Stable operation from -20°C to 60°C.
7. Flexible Mounting – Supports pole and wall installation.
MeshTower S1 Solar-Powered Off-Grid Meshtastic Communication Node Support LoRa & Blutooth
MeshTower S1 Off-Grid Outdoor Meshtastic Solar Node
1. MeshTower s1 is a rugged, solar-powered off-grid communication node designed for long-term outdoor deployment and decentralized mesh networking.
2. Built on MeshSolar architecture, this meshtastic solar node integrates solar energy harvesting and high-capacity battery storage to ensure continuous operation in remote environments.
3. It combines LoRa long-range communication, Bluetooth Low Energy, and SMA external antenna support for stable connectivity in harsh conditions.
Kindly Note
The previous version of this outdoor solar node is currently out of stock and undergoing hardware upgrades. No confirmed shipping schedule is available for the new revision. Orders placed now will be treated as pre-orders.
Packing List
- MeshTower Main Unit
- 10W Solar Panel with Waterproof Connector
- N-Type Fiberglass Antenna
- 2.4GHz Rubber Antenna
- GPS Antenna
- USB-C Cable
- Wall Mount Backplate

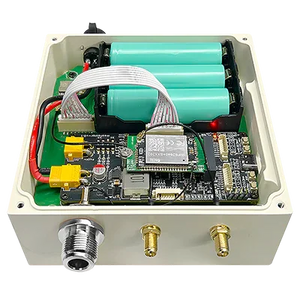

Take a Closer Look
Specification
| Item | Specification |
|---|---|

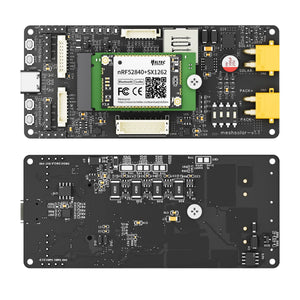

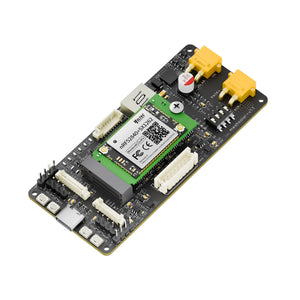

| Mainboard | MeshSolar Platform |
| MCU | nRF52840 (BLE) |
| LoRa Chip | SX1262 |
| Frequency | 863–870 MHz / 902–928 MHz |
| Solar Panel | 18V / 10W |
| Battery | 3 × 2800mAh lithium pack |
| Input | 18 ~ 25V DC |
| Protection | IP65 Waterproof |
| Enclosure | Auminum Alloy |
| Temperature | -20°C to 60°C |
| LoRa Power | 21 ± 1 dBm |
