Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114

Verkaufspreis $10.99 USD

1. All-in-One Meshtastic Node – Pre-configured for fast deployment and seamless mesh networking.

2. Powerful nRF52840 MCU – Low-power ARM Cortex-M4 architecture optimized for BLE and IoT applications.

3. Long-Range LoRa Communication – SX1262 chipset (863–928MHz) for stable, low-power transmission.

4. Integrated GNSS Support – Built-in GPS positioning for tracking and location-aware applications.

5. Multiple Power Options – USB Type-C, lithium battery, and solar input support.

6. Developer-Friendly Design – Fully compatible with Arduino and extensible I/O interfaces.

Farbe: Green
Size: Only Case
Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114

Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114

Meshnology N36 - Mesh Node T114 Board Development Kit – 3000mAh Battery - 863~928MHz Antenna, Bluetooth, Optional TFT Display, Case

All-in-One nRF52840 LoRa Development Kit
This compact Mesh Node T114 board integrates the powerful nRF52840 MCU and SX1262 LoRa chipset, delivering robust long-range wireless communication. Designed for Meshtastic and IoT projects, it offers versatile connectivity including Bluetooth and supports Arduino development for easy prototyping and integration.

Reliable and Versatile Connectivity
Equipped with the SX1262 LoRa radio and Bluetooth, the board ensures stable communication over long distances. It includes multiple power input options such as Type-C USB, lithium battery, and solar panel interfaces, making it suitable for outdoor and solar-powered applications.

Durable Protective Case with High-Capacity Battery
Encased in the upgraded N36 protective case, the board comes with a pre-installed 3000mAh rechargeable battery to support extended operation. The design accommodates solar charging and provides stable power management for continuous use in variable environments.

Optional Brilliant TFT Display
Supports an optional 1.14-inch TFT display with 135(H)RGB × 240(V) resolution and up to 262k colors, enabling vibrant and clear real-time data visualization directly on the device.

Developer-Friendly I/O and Expansion
Compatible with Arduino and supported by a comprehensive development framework and libraries, the board offers numerous expansion connectors for GPS, antennas, and solar integration, simplifying project development and scaling.

Package Includes

  • Mesh Node T114 development board
  • 3000mAh rechargeable battery (pre-installed)
  • N36 protective case

Dimensions and Weight

  • Approximate size with case: 100mm × 45mm × 30mm
  • Total weight: approximately 95g (including battery and case)
N36 - LoRa Mesh Node with nRF52840, GPS, TFT, 3000mAh Battery, Case for Meshtastic IoT
N36 - LoRa Mesh Node with nRF52840, GPS, TFT, 3000mAh Battery, Case for Meshtastic IoT
N36 - LoRa Mesh Node with nRF52840, GPS, TFT, 3000mAh Battery, Case for Meshtastic IoT
N36 - LoRa Mesh Node with nRF52840, GPS, TFT, 3000mAh Battery, Case for Meshtastic IoT
N36 - LoRa Mesh Node with nRF52840, GPS, TFT, 3000mAh Battery, Case for Meshtastic IoT
N36 - LoRa Mesh Node with nRF52840, GPS, TFT, 3000mAh Battery, Case for Meshtastic IoT
Parameter Mesh Node T114 WiFi LoRa 32 (V3)
Main MCU nRF52840 (Nordic Semiconductor) ESP32-S3FN8 (Espressif)
CPU Architecture ARM Cortex-M4 with FPU Xtensa® LX7 dual-core, 5-stage pipeline
LoRa-Chip SX1262 (Semtech) SX1262 (Semtech)
Wireless Bluetooth 5 / 5.1 / 5.2, 2.4 GHz Wi-Fi 802.11 b/g/n + Bluetooth 5 (LE)
Display 1.14" Color TFT display 0.96" Monochrome OLED display
GPS Module Supported (Built-in GNSS) Not supported
Battery Management Integrated lithium battery charging (supports 18650 battery) Integrated lithium battery charging (supports LiPo battery)
Platform Focus Optimized for Meshtastic Bluetooth Mesh network General purpose platform for LoRa + WiFi + BLE
Recommended Use Outdoor comm nodes, low-power BLE mesh networks IoT projects, wireless sensor networks

Take a Closer Look

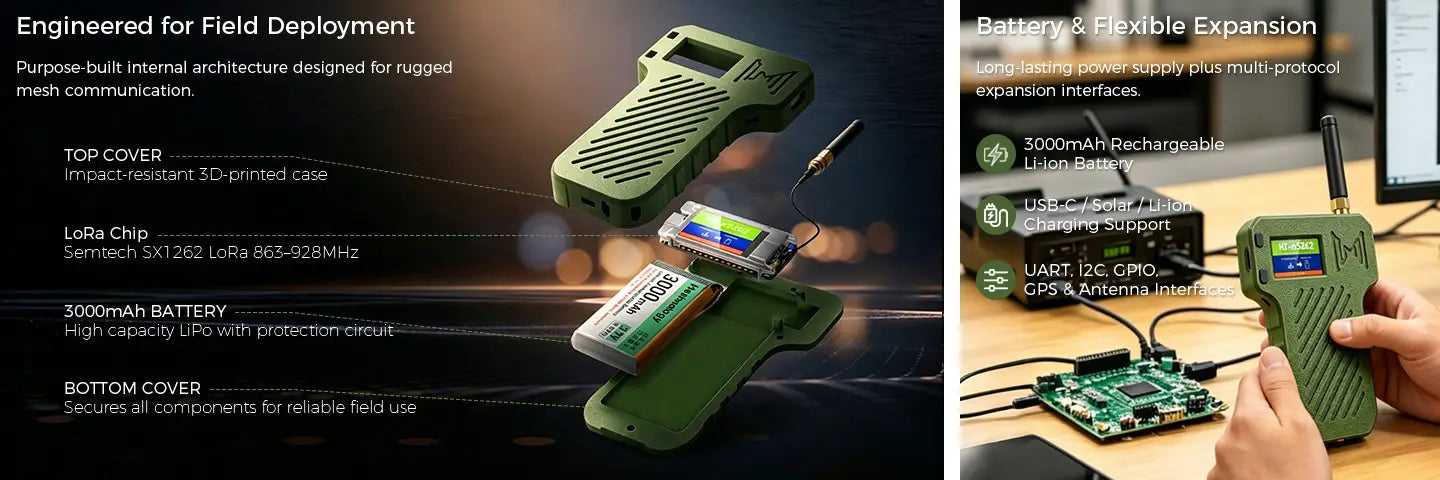

Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114 1
Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114 2
Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114 3

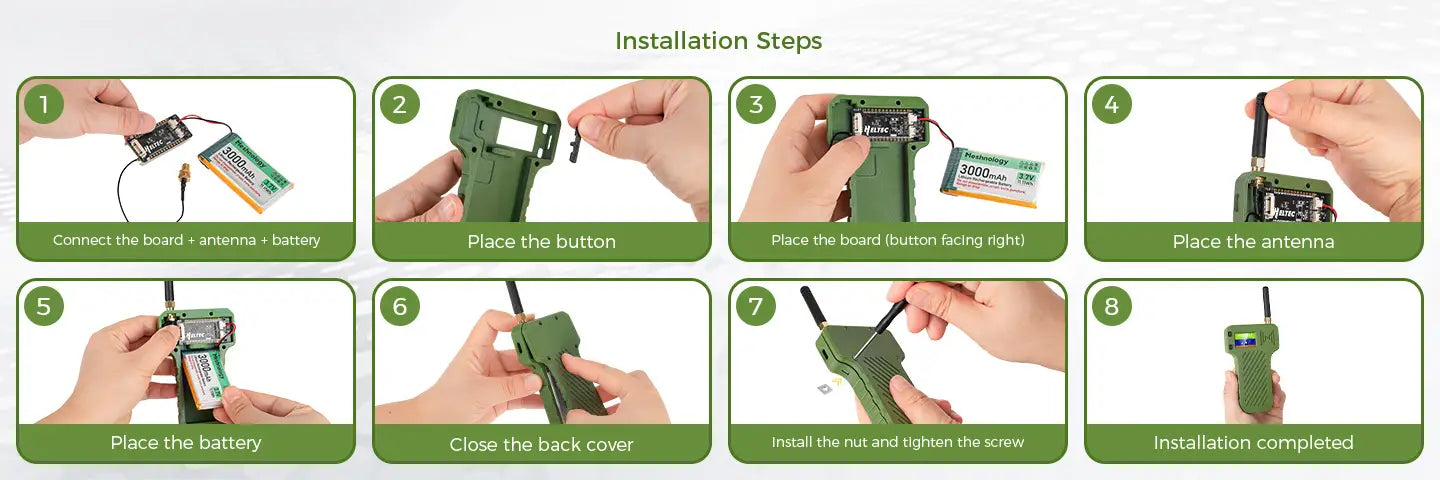

Meshnology N36 Meshtastic Bluetooth Mesh Network Off-Grid Texting Device Mesh Node T114 4

Specification

Item Specification
MCU
Nordic nRF52840 (ARM Cortex-M4, up to 64MHz)
LoRa Chip
Semtech SX1262 (863–928MHz)
Wireless
Bluetooth 5 / 5.1 / 5.2 BLE
GNSS
Built-in GPS positioning support
Display
Optional 1.14" TFT color display (135×240)
Memory
1MB Flash / 256KB RAM
Battery
3000mAh rechargeable lithium battery (included)
Charging
USB Type-C / Solar / Li-ion input support
Expansion
UART / I2C / GPIO / GPS / antenna interfaces
Size (with case)
approx. 100mm x45mm x 30mm
Weight
approx. 95 g (including battery and case)
