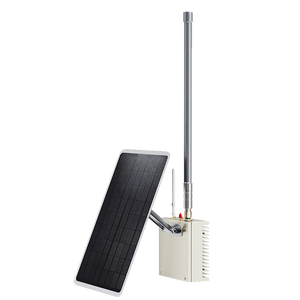

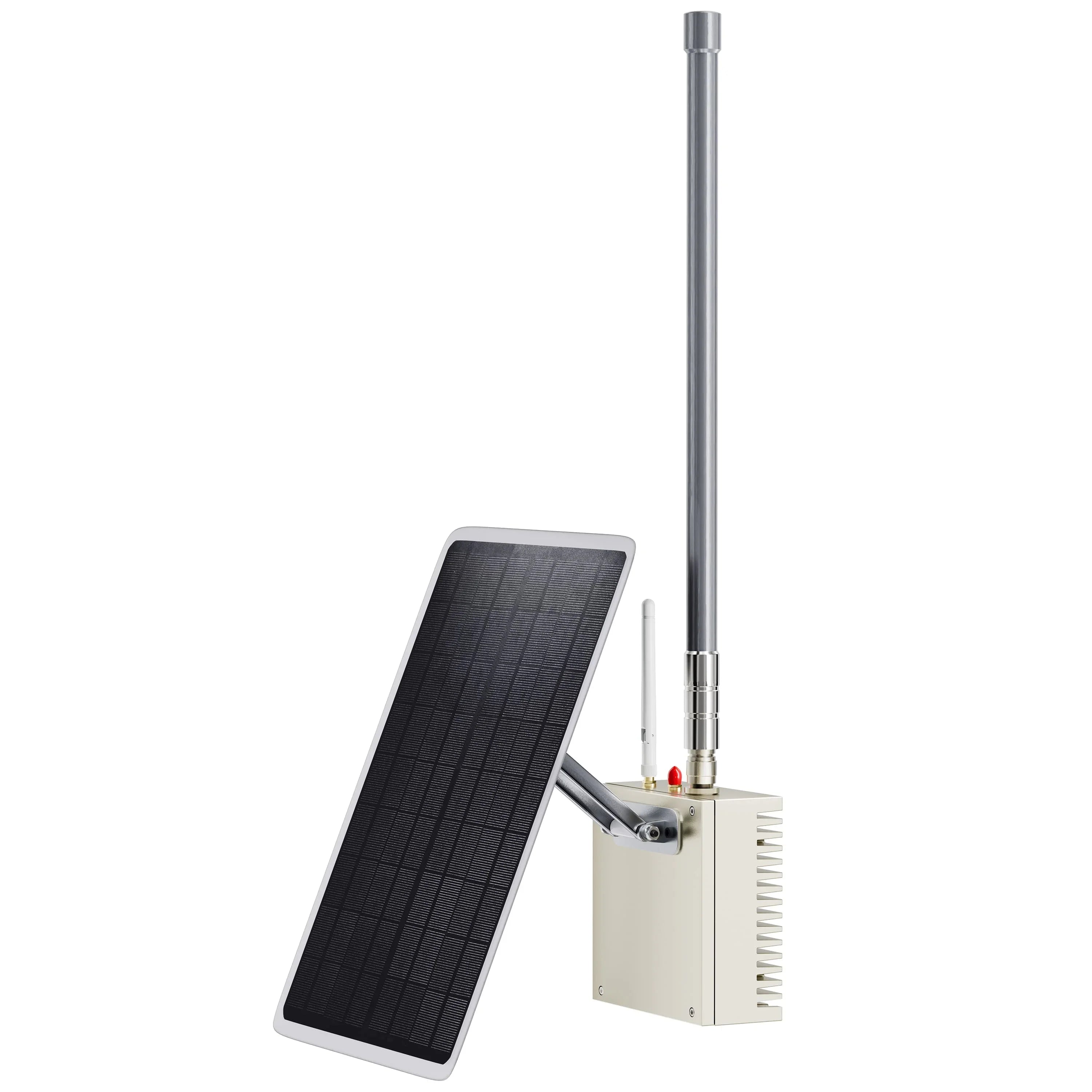

MeshTower S1 Solar-Powered Off-Grid Meshtastic Communication Node Support LoRa & Blutooth
1. Solar-Powered Off-Grid Operation – 18V solar input for continuous energy harvesting.
2. High-Capacity Battery System – 3 × 2800mAh lithium batteries for extended runtime.
3. Dual Connectivity – LoRa (SX1262) + BLE (nRF52840).
4. SMA External Antenna Support – Enhanced signal range and stability.
5. IP65 Rugged Enclosure – Waterproof aluminum alloy housing.
6. Wide Temperature Range – Stable operation from -20°C to 60°C.
7. Flexible Mounting – Supports pole and wall installation.
MeshTower S1 Solar-Powered Off-Grid Meshtastic Communication Node Support LoRa & Blutooth

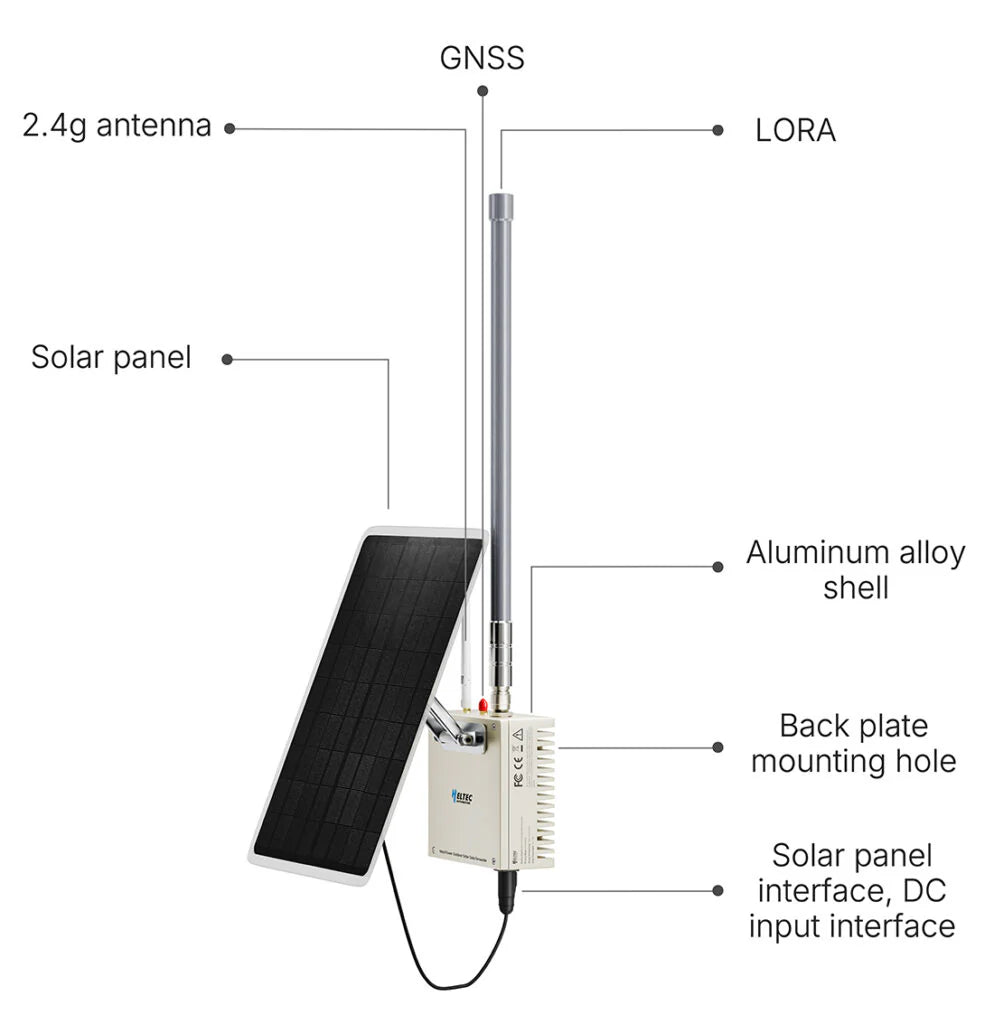

MeshTower Solar-Powered Outdoor Communication System
MeshTower is a robust solar-powered outdoor communication system built on MeshSolar technology. It features an integrated 18V solar panel and 3×3000mAh lithium battery pack for sustained, off-grid operation. Supporting dual-mode Bluetooth + LoRa connectivity with SMA antenna compatibility, MeshTower ensures strong, reliable signal coverage even in remote areas. Its IP65-rated waterproof aluminum enclosure is designed for challenging environments from -20°C to 60°C. Flexible pole or wall mounting makes deployment easy and ideal for Meshtastic networks, remote monitoring, and off-grid communications—offering solar endurance, industrial-grade resilience, and simple plug-and-play setup.
Main Features:
- Professional BMS with protection against overcharge, over-discharge, short circuit, and over-temperature.
- Supports 18V solar panel and PD3.0 input charging.

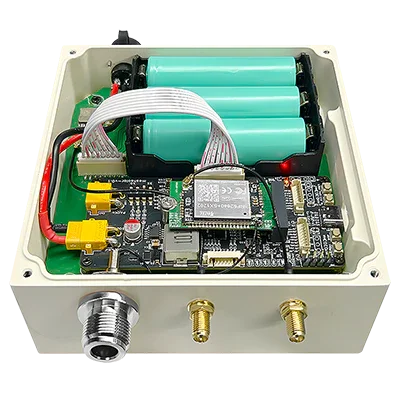

- Integrated 3 × 3000mAh high-capacity lithium battery for extended operation.
- Dual support for LoRa & Bluetooth connectivity.
- External SMA antenna compatibility for better signal performance.
- Excellent low-power efficiency for long-term use.
- Wide-temperature battery performance (-20°C to 60°C).
- IP65-rated waterproof aluminum alloy enclosure for outdoor durability.
- Easy installation with both pole-mount and wall-mount options.
Specifications:

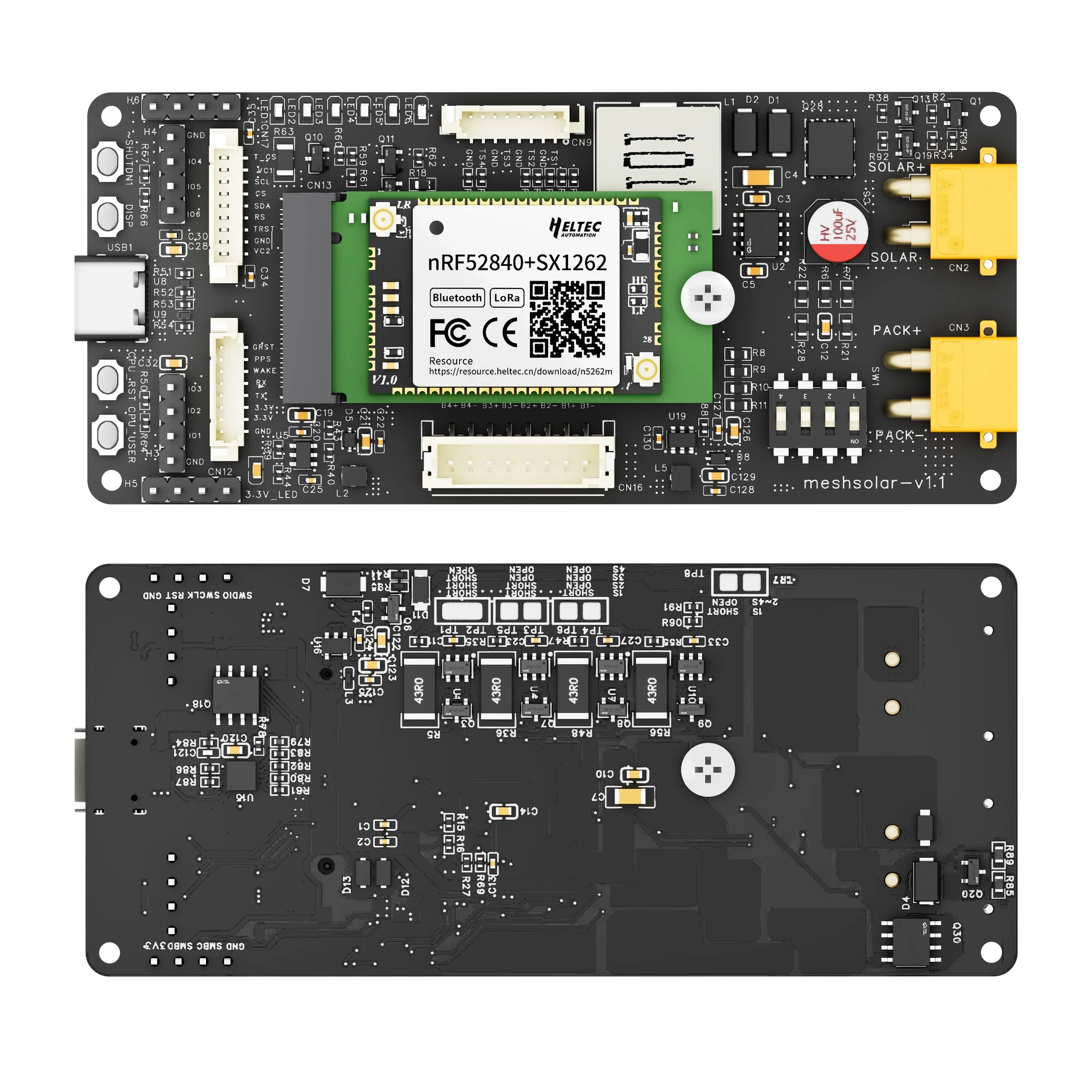

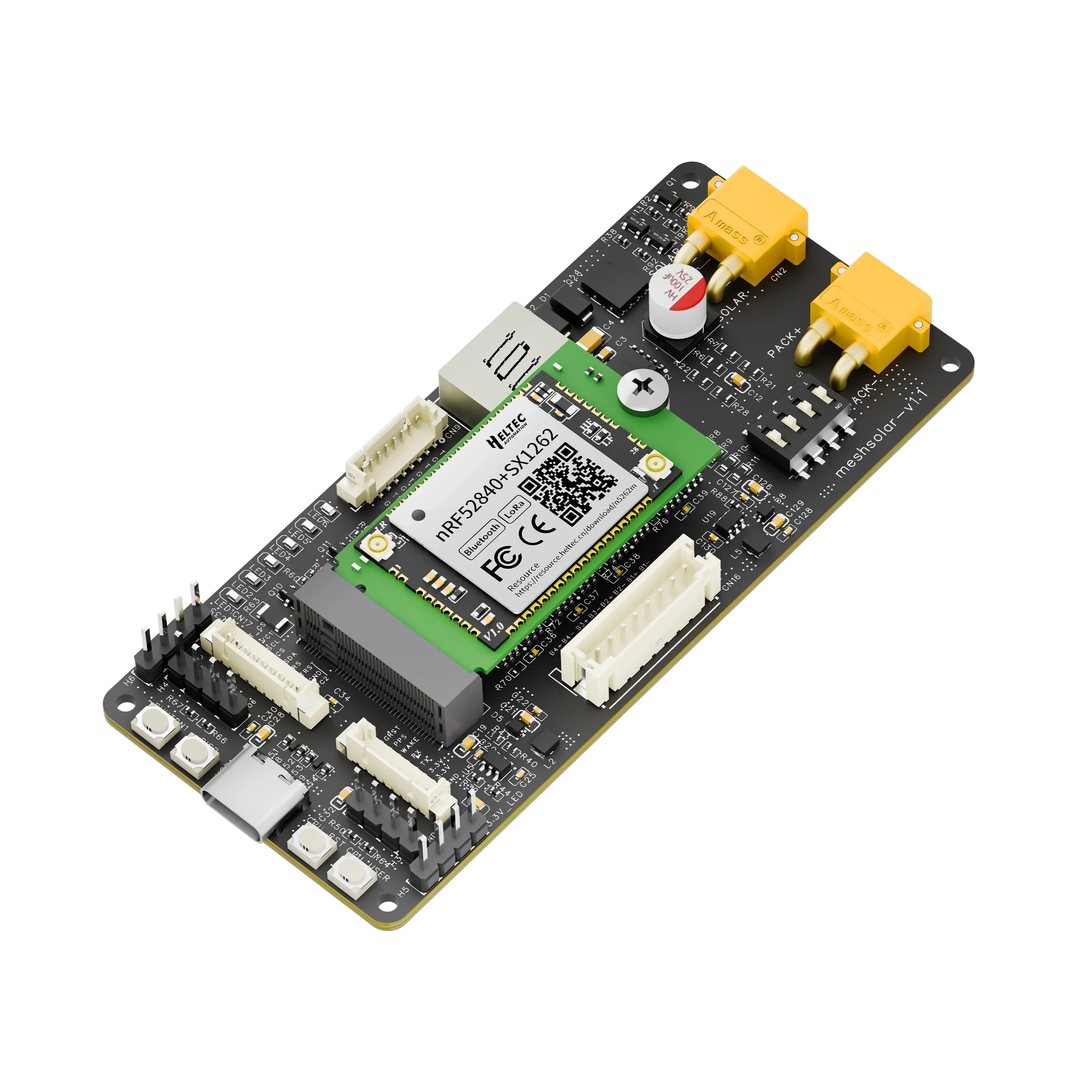

- Mainboard: MeshSolar
- MCU: nRF52840 (Bluetooth Low Energy)
- LoRa Chip: SX1262
- LoRa Band: 863~870MHZ, 902~928MHZ
- Solar Panel: 18V/20W
- Battery: 3 × 3000mAh lithium batteries
- Input Voltage: 18–25V DC (supports 18V–25V DC charging)
- Battery Charging Current: ≤1.5A
- Operating Temperature: -20°C to 60°C
- Protection Rating: IP65
- Housing Material: Aluminum alloy
- LoRa Transmit Power: 21±1 dBm
- Dimensions:
- Enclosure: 125 (+40) × 125 × 52 mm
- Panel: 320 × 230 mm
- Product Dimensions: 102.00 × 74.10 × 10.80 cm
- Product Weight: 140 g
Packing List:
- 1 × MeshTower
- 1 × N-interface fiberglass antenna
- 1 × 2.4G rubber stick antenna
- 1 × GPS antenna
- 1 × 10W solar panel with waterproof joint
- 1 × USB-C to USB-C cable
- 1 × Wall installation backboard
Häufig gestellte Fragen
A: Yes, it supports 18V–25V DC charging.
A: Via USB interface (Type-C or micro-USB, depending on the model).
Take a Closer Look
Specification
| Item | Specification |
|---|---|
| Mainboard | MeshSolar Platform |
| MCU | nRF52840 (BLE) |
| LoRa Chip | SX1262 |
| Frequency | 863–870 MHz / 902–928 MHz |
| Solar Panel | 18V / 10W |
| Battery | 3 × 2800mAh lithium pack |
| Input | 18 ~ 25V DC |
| Protection | IP65 Waterproof |
| Enclosure | Auminum Alloy |
| Temperature | -20°C to 60°C |
| LoRa Power | 21 ± 1 dBm |
